Cleveland Browns
Cleveland, Ohio, United States

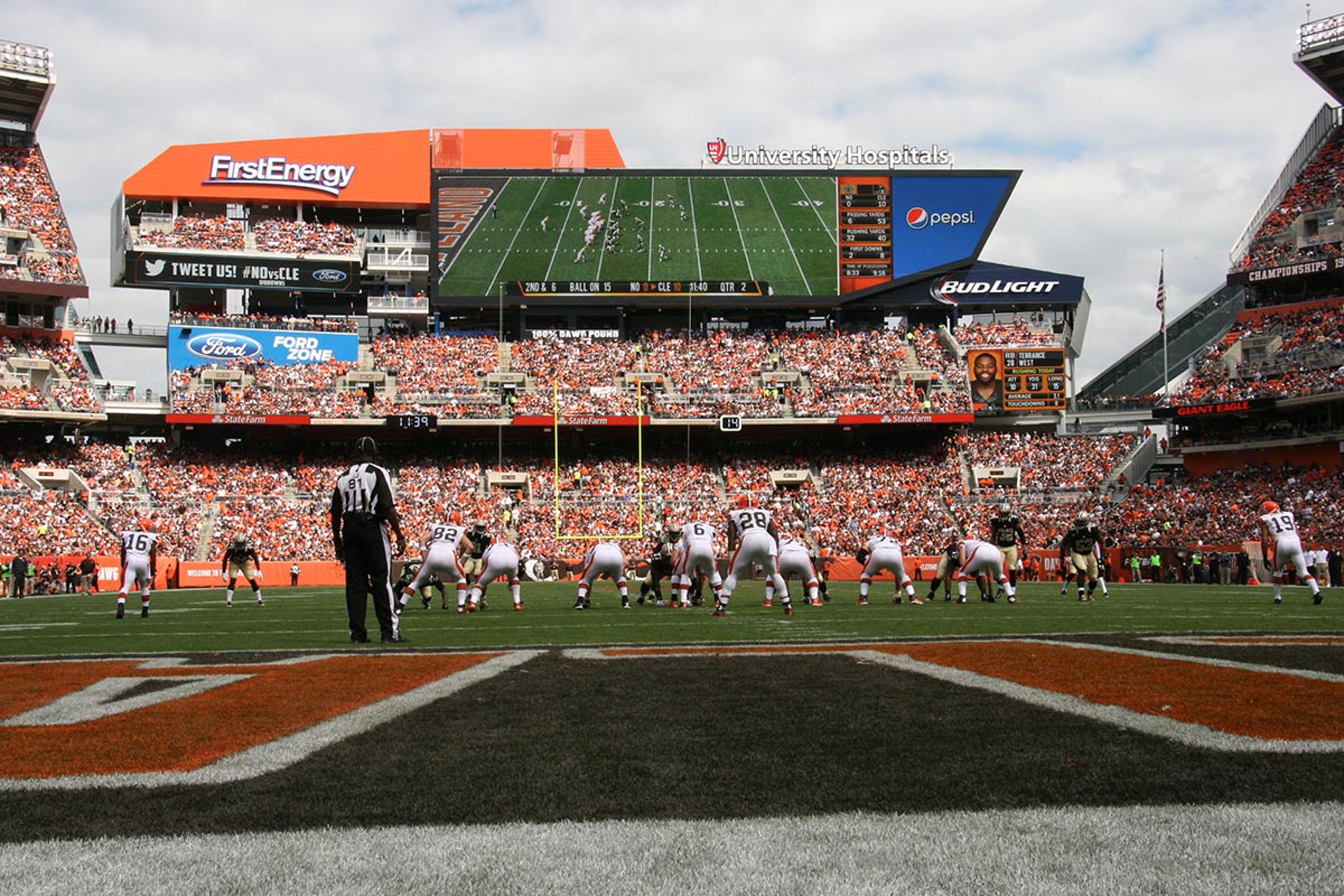

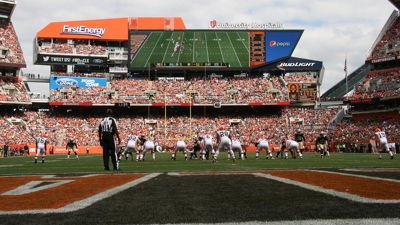

The Cleveland Browns introduced unique perspectives to FirstEnergy Stadium as the installed 25 LED displays throughout the venue in 2014. Each main end zone display features an angled pattern on its north edge and provides nearly 6,900 square feet of digital canvas to inform and entertain Browns fans. All displays feature 15HD pixel layouts for excellent picture quality and contrast.
Product Details
Press Conference Backdrop
System install year: 2019
| Product Line | Series | Pixel Spacing | Lines & Columns | Approx. Dimensions | Quantity |
|---|---|---|---|---|---|
| Video Displays | NPN-4100 | 1.9mm SMD | 1260 x 2240 | 7' 11" x 14' (2.41m x 4.27m) | 1 |

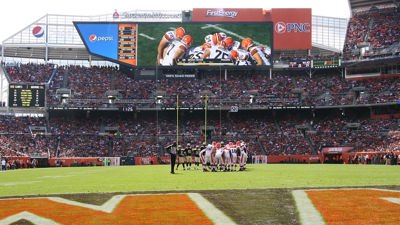

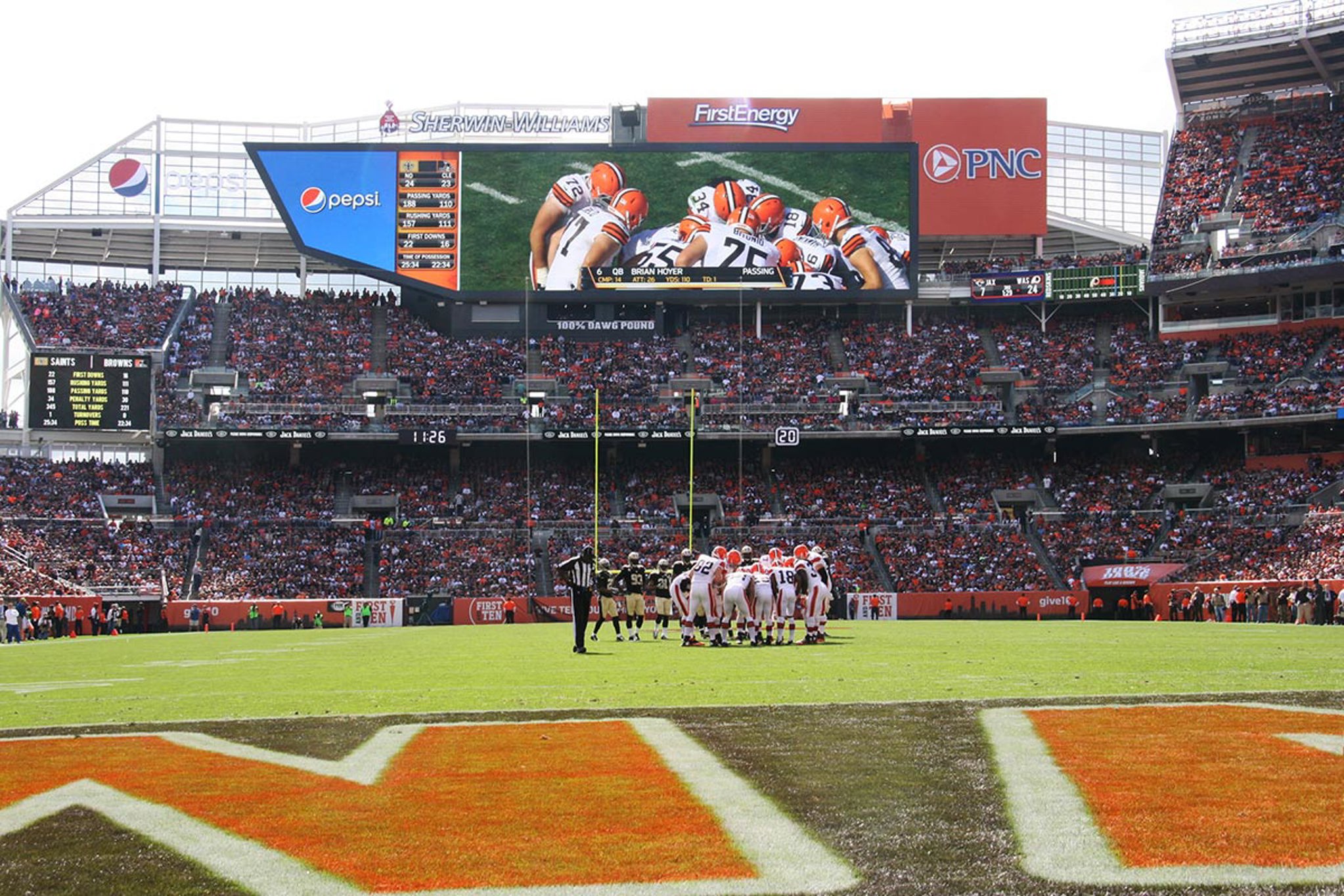

End Zone
| Product Line | Series | Pixel Spacing | Lines & Columns | Approx. Dimensions | Quantity |
|---|---|---|---|---|---|
| Video Displays | DVX | 15mm | 792 x 3816 | 39' 7.2" x 190' 9.7" (12.07m x 58.16m) | 2 |
| Video Displays | RTX | 15mm | 72 x 792 | 3' 7.2" x 39' 7.2" (1.1m x 12.07m) | 6 |
| Video Displays | RTX | 15mm | 192 x 1392 | 9' 7.2" x 69' 7.2" (2.93m x 21.21m) | 1 |
| Video Displays | DVX | 15mm | 384 x 600 | 19' 2.4" x 30' (5.85m x 9.14m) | 2 |
| Video Displays | RTX | 15mm | 168 x 984 | 8' 4.8" x 49' 2.4" (2.56m x 15m) | 1 |

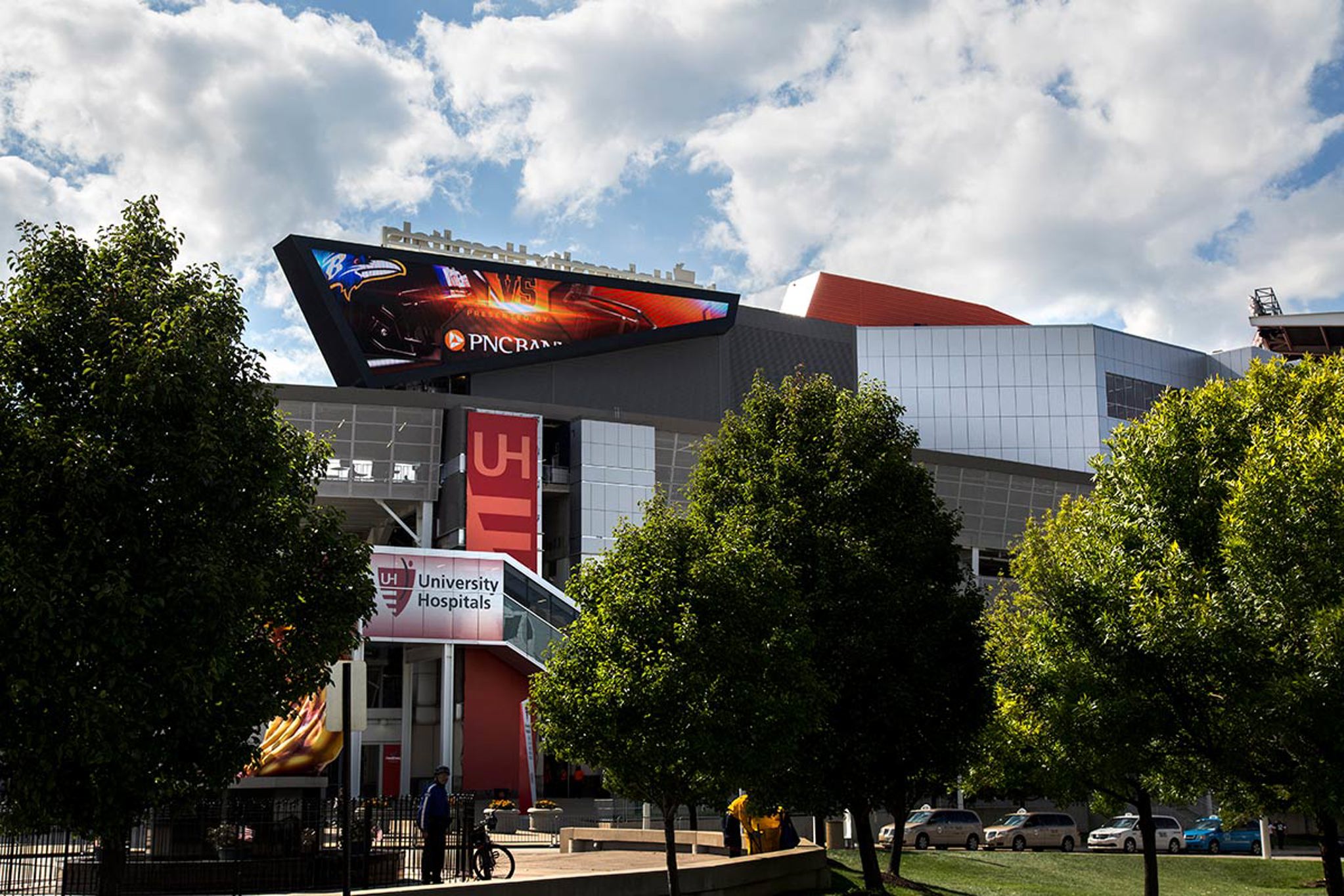

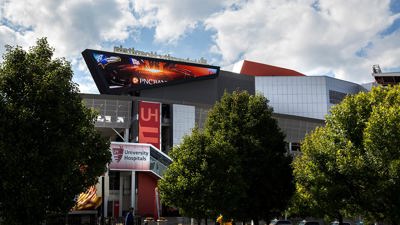

Marquee
| Product Line | Series | Pixel Spacing | Lines & Columns | Approx. Dimensions | Quantity |
|---|---|---|---|---|---|
| Video Displays | DVX | 15mm | 528 x 1992 | 26' 4.8" x 99' 7.2" (8.05m x 30.36m) | 1 |

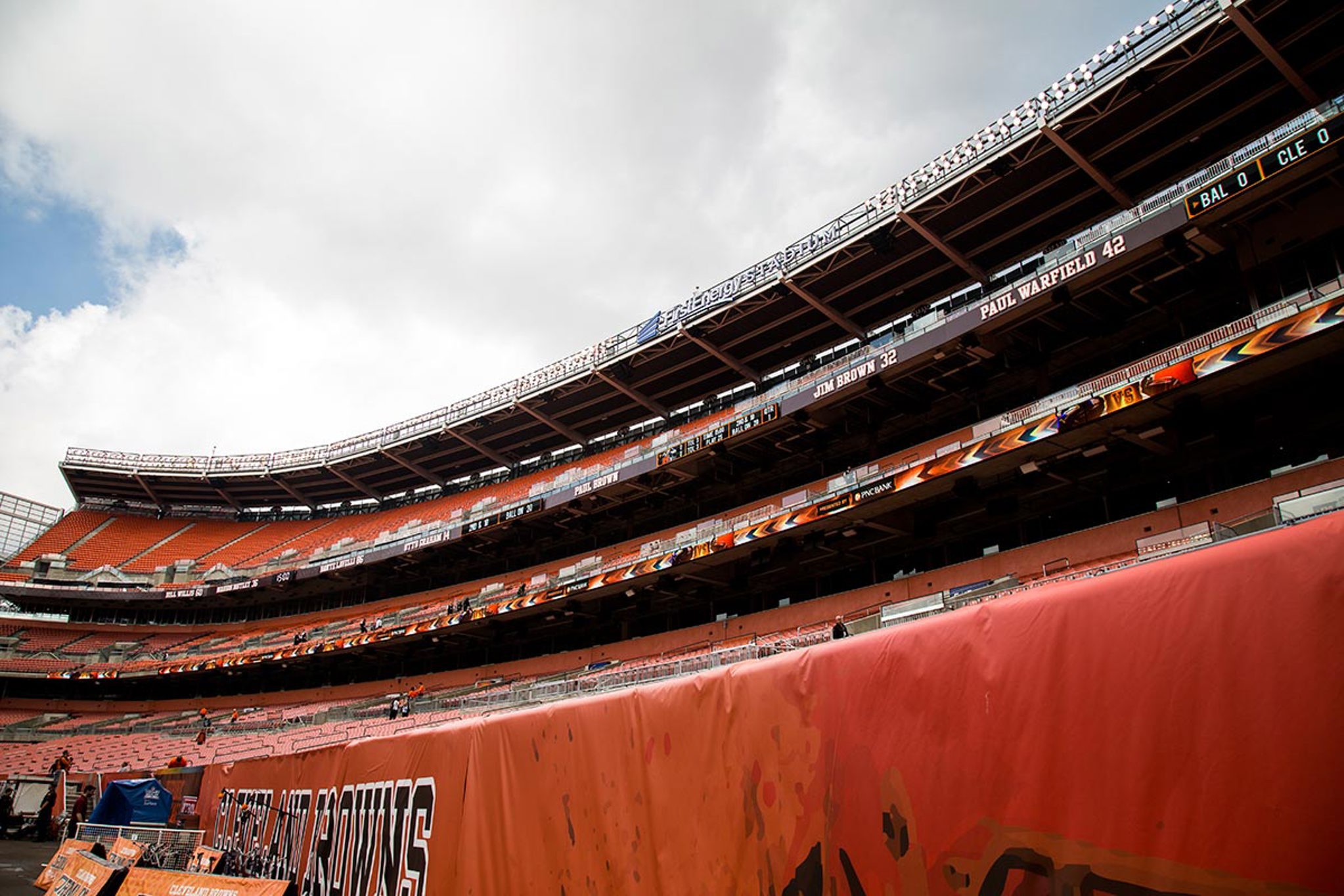

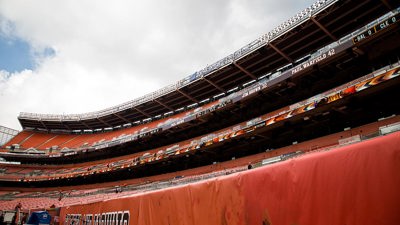

Fascia / Ribbon
| Product Line | Series | Pixel Spacing | Lines & Columns | Approx. Dimensions | Quantity |
|---|---|---|---|---|---|
| Video Displays | RTX | 15mm | 48 x 7440 | 2' 4.8" x 372' 0.2" (0.73m x 113.39m) | 2 |
| Video Displays | RTX | 15mm | 48 x 720 | 2' 4.8" x 36' (0.73m x 10.97m) | 4 |
| Video Displays | RTX | 15mm | 48 x 792 | 2' 4.8" x 39' 7.2" (0.73m x 12.07m) | 6 |
