A Dynamic Display System For an Immersive Fan Experience
Daktronics partnered with Real Madrid C.F to install a large, 360-degree LED halo display system and additional video displays at the Santiago Bernabéu Stadium. The project includes a unique halo structure suspended from the roof, outward-facing displays, and a ribbon display around the seating fascia, all designed to enhance the fan experience with dynamic content.
3,900+
Square Feet of LED
The Daktronics Solution: A Unique, Engineered Halo
Daktronics, along with partner Legaz Arquitectura e Ingenieria, delivered the spectacular halo display system. The club's goal was not merely an upgrade, but a transformation into a multi-use facility that would set a global benchmark for fan experience and technology. The final design was the result of hundreds of iterations, resulting in a solution optimized specifically for football and other large events, such as NFL games.
The new Santiago Bernabéu Stadium will have iconic advertising devices with the highest quality and technology available.
– Enrique Uriel, Chief Information officer, Real Madrid
Unique Design & Engineering
The Tilted Halo
The final design is distinctly recognizable because the halo is uniquely tilted, and the goal-end sections are strategically enlarged, making it a signature feature of the new venue.
Conic Corners
Due to the conic geometry of the halo, traditional rigid displays could not form the corners. Daktronics engineered a solution using freeform ProPixel stick elements to curve the inner corners and deliver an uninterrupted view of content.
Structural Complexity
The halo is not a single solid stripe but designed in five pieces to allow for the movement and deflections of the stadium's retractable roof.
Inner Sideline Displays (x2)
6.58m H x 114.12m L 13HD
Inner Goal End Displays (x2)
6.58m H x 52.69m W 13HD
Inner Corner Displays (x4)
6.60m H x 16.53m W 25-millimeter
Upper Backside Displays (x10)
5.49m H x 9.88m W 13HD
Fascia Ribbon Display (x1)
1.10m H x 491.47m
Impact on Fan Experience

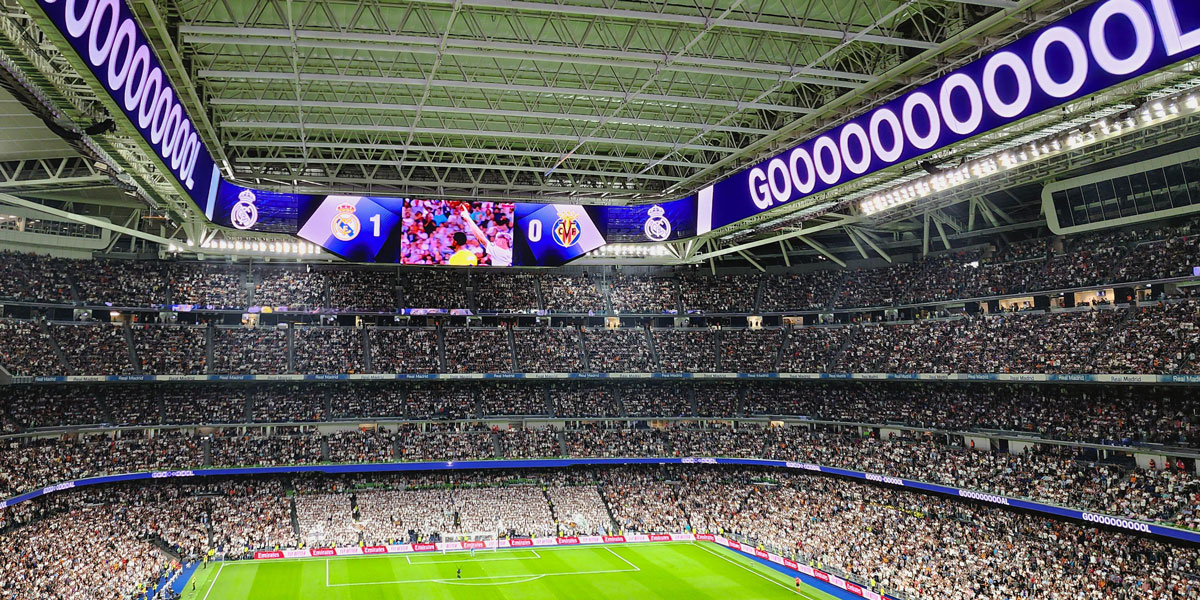

The result of this massive renovation is something never-before-seen in Europe, a massive, seamless LED halo and a network of displays designed to amplify content, storytelling and fan engagement at every turn. Fans are blown away by content that spans the entirety of the halo and cascades through the ribbon boards. From Emirates planes flying across the halo to footballs filling the screen, the creative team ensures each piece of content delivers impact. Santiago Bernabeu stadium sets the standard for fan experience across all of Europe, and the halo stands as yet another shining example Daktronics’ design-build capabilities.
You need the product, the project and the people. Daktronics owns the process from design to delivery. You’re not just buying LEDs from a third party. They’re innovating and controlling the end-to-end process.
– Enrique Uriel, Chief Information officer, Real Madrid
