Venus Control Suite Data Studio: How do I create a custom list, from a spreadsheet, that I can put on my display?

Topic

This article explains how to create a Custom List in Data Studio using a spreadsheet as the data source. Custom Lists allow spreadsheet data to automatically populate and update on a display without manually editing the presentation.

Common use cases for spreadsheet-based custom lists include:

    • Birthdays
    • Welcome groups
    • Game schedules

This workflow uses Google Sheets or Microsoft Excel as the data source and connects the spreadsheet to a Custom List within a Web Presentation. Updates made to the spreadsheet will automatically reflect on the display once connected.

Environment

  • Product Family: Venus Professional, Venus Enterprise, Venus Live
  • Product: Data Studio
  • Component: Data source
  • Control System: Venus Control Suite

Steps

▶️Use the arrows to expand and collapse each section.

Creating the Spreadsheet

Create a spreadsheet to organize the data you want to display on the Custom List.

If using Microsoft Excel:

  1. Enter the data you want to display.
  2. Select the rows and columns you want to include.
  3. Convert the selected data into a Table.

💡Only data included within the Table will be available for use in Data Studio.

If using Google Sheets:

  1. Enter the data you want to display.
  2. Select the rows and columns you want to include.
  3. Create a Named Range for the selected data.

💡Only data included within the Named Range will be available for use in Data Studio.

⚠️Important

  • A single spreadsheet can contain multiple Tables (Excel) or Named Ranges (Google Sheets) if different data sets are needed for separate Custom Lists.
  • If a Table (Microsoft Excel) or Named Range (Google Sheets) is not created, the Custom List will not populate correctly.



Below are screenshots of common use cases.

  • It's recommended to use a separate tab for each subject.

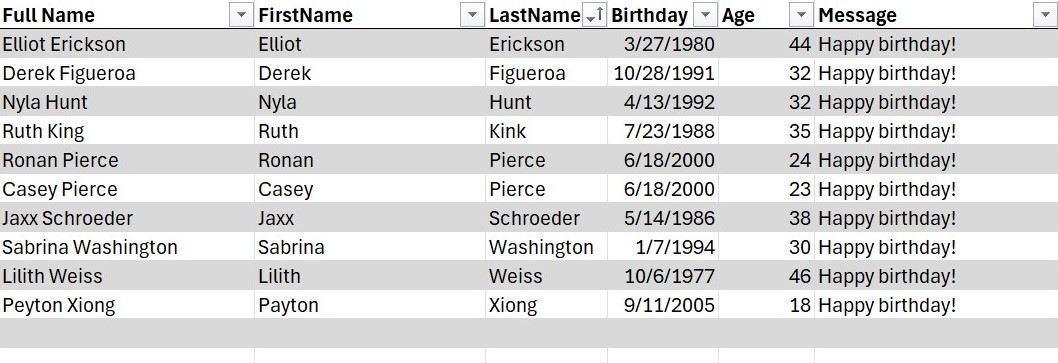

Birthdays

    • Individuals are listed row by row, while the columns may vary based on the information that needs to be displayed.

Screenshot 2024-06-18 105253.png

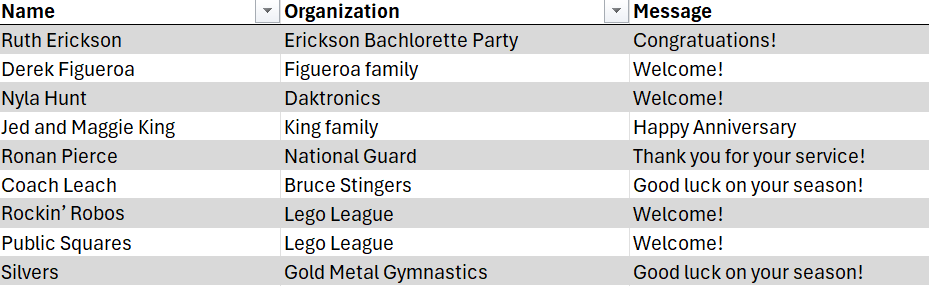

Welcome groups

    • Each group is placed on a separate row, with columns designated to include specific details pertaining to each group.

Screenshot 2024-06-18 105256.jpg

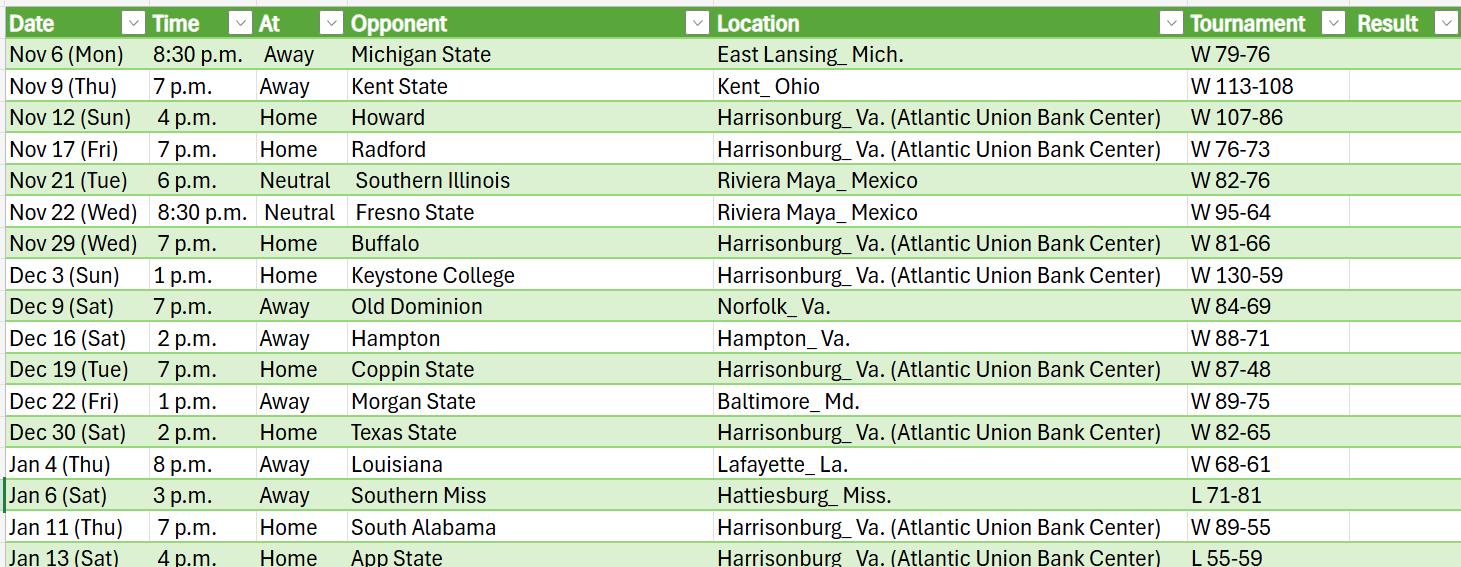

Games

    • This example offers data on forthcoming games.  Games are listed row by row, and columns can be used to show further details for each game.

Screenshot 2024-06-18 125734.png

Connect the Spreadsheet to Data Studio

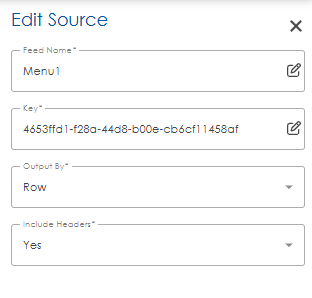

Once the source is connected, ensure it is configured to match your data sheet specifications.

  • If the items are listed in rows, the Output By should be set to Row.
  • It is advised to include headers.

Screenshot 2024-06-18 154120.png

Create the content for the display

Content mapped to the feed can be used to make data elements.

Content Studio: How do I create presentations with data elements?

Related Resources

Data Studio: How do I integrate with a cloud drive data source on a Venus cloud hosted system
