Show Control System: How do I create content that shows conditional OOT data?

Conditional Play Sequences offer the ability to display different sequences based on the status of the game (Not Started, In Progress, Finished, Delayed).   The example below illustrates the 4 frames that are supported by the conditional play sequence.

What you need to know:

• The Out-of-Town interface sends a Select Frame command based on the game status.  This tells the DMP-8000 to play the appropriate frame/layout. Make sure that your files are played in "Select Frame" mode on Show Control.

Configure zones

1. Create a separate zone for each game on the DMP-8000.
   • If you show 4 games at a time, you need 4 zones.
     For how to create zones on DMP-8000 player version 7.20+, use - How do I add a layout in Venus Control Suite?
2. Assign unique sign numbers for each zone in the DMP-8000 interface.
   • You will need to reference these zones when setting up the configuration in Sports Wire or Out-Of-Town software.
   • For giving DMP-8000 zones an ERTD number on version 7.20+, use - How to Setup ERTD on a DMP-8000 via HTML Web Interface

1. In Content Studio, Create a presentation with 7 layouts, each for the different points within the game. The content must be named OOTGameX where X=Game Number from "Expanded Sign Configurations" setup on output port setup.
   • Layout 1: Not Started
   • Layout 2: In progress
   • Layout 3: Final
   • Layout 4: Delayed
   • Layout 5: Used for Game With Note
   • Layout 6: Blank or Team Graphics used when number of games doesn't match how the display is configured (i.e. only three games but you are showing four games per display)
   • Layout 7: Red Zone
2. Save presentations to a folder on the DMP-8000 named to match the setup being used:
   1. For Out-of-Town, use the library name entered in your output configuration
   2. For Sports Wire 4000, "Output_7" for output #7 (using the number that matches the output you will setup below)

Set up the output in Sports Wire 4000 or Data Studio Baseball

Sports Wire 4000:

1. Create a new output.

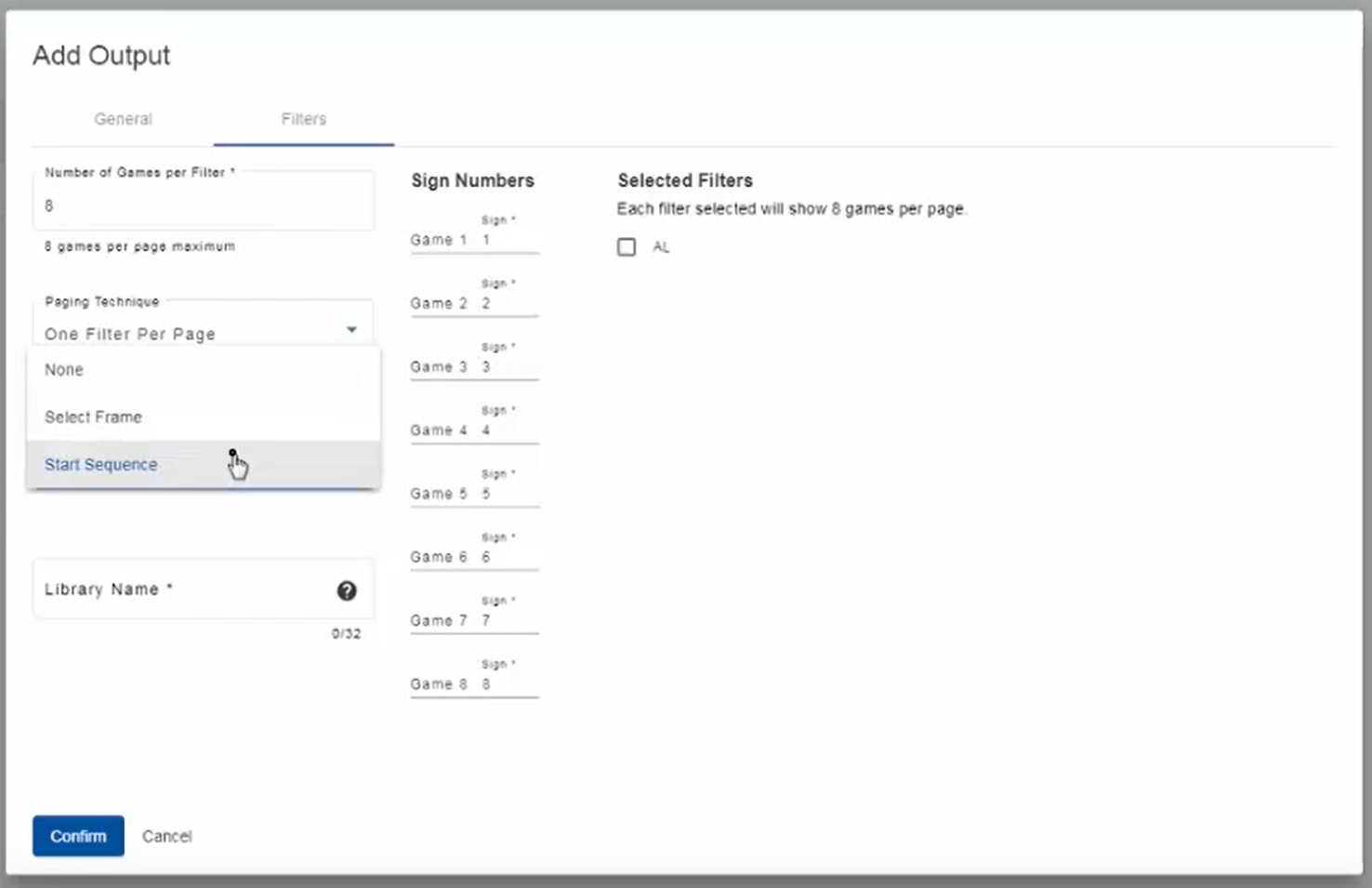

2. In Sports Wire, use the output type: "Expanded Scores -Enhanced RTD"
3. The "Expanded Sign Configuration" window lets you map each game in Sports Wire to a specific Sign Number.  Map each game to match the sign numbers on the DMP-8000.
4. Under ERTD Configurations select "Use Select Frame (DMP-7000)"
   • The "Use Start Sequence (DMP-8000)" is not needed now that the DMP-8000 can use select frame.
   • Make sure DCGI mode is disabled in the output of Sports Wire.
5. Restart Sports Wire after setting up the new sign numbers.
