FL-5000 unable to communicate to display using hardwired communication, Incorrect harness

Potential Symptoms

  • Unable to communicate to display using hardwired communication.

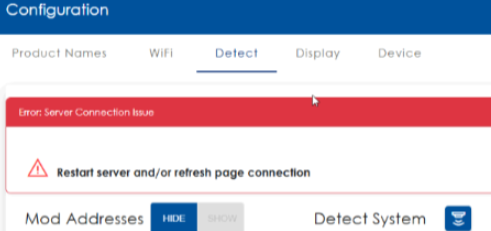

  • Unable to detect displays on web UI.

Environment

  • Product: FL-5000
  • Component: FL5 Controller, FLD5-2000
  • Control System:

Cause

  • Using incorrect cable from indoor J-box to module
    • For installs only using indoor J-box, the W-1234 cable requires the adapter 0A-2311-4511

Resolution

  1. Run W-1234 wire from indoor J-box to the first module
  2. Connect W-1234 to adapter 0A-2311-4511 following DWG-05615632
  3. Connect 4-pin end of 0A-2311-4511 adapter to first module

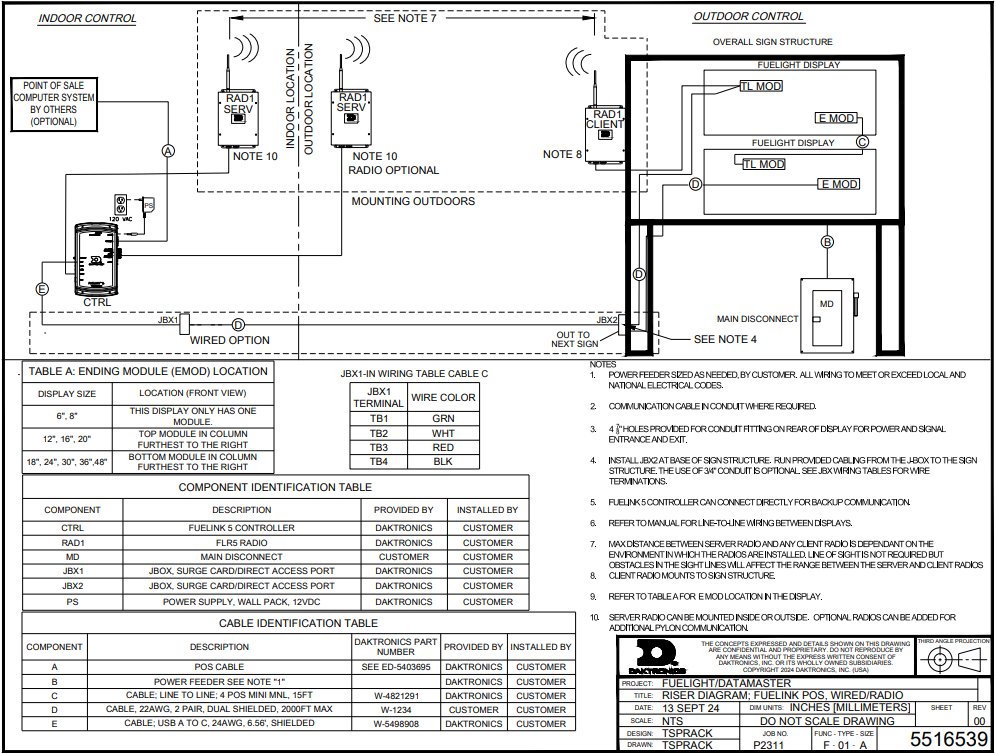

Riser diagram

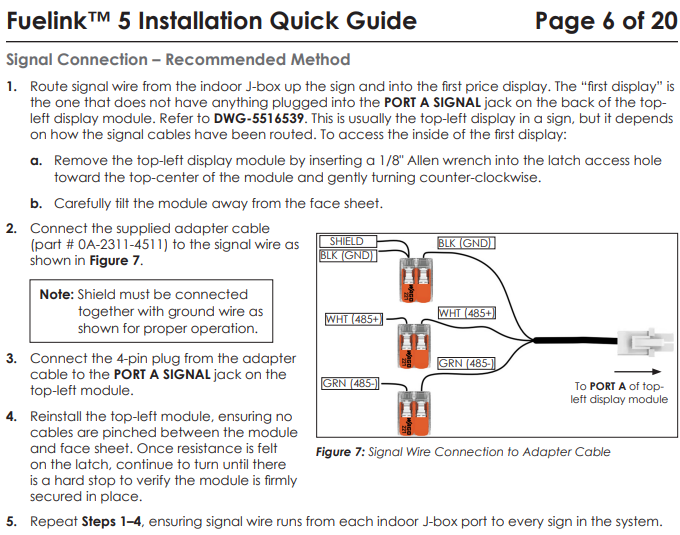

Fuelink 5 Installation Quick Guide

KB ID: 000030333
