Data Studio: How do I edit MLS Sportec soccer Data in Data Studio?
Topic
Edit MLS Sportec web source in Data Studio
Environment
- Product: Data Studio
- Component: MLS Sportec data source
- Control System:
Steps
Please contact your Professional Services representative if you are interested in implementing Sportec data into your Daktronics control system.
Editing the MLS - Sportec Data Studio Source
- On a computer on the Daktronics control system network (Show Control or Venus) open a new Chrome window and visit the Venus Launchpad (https://venus-p:13034/launchpad/home)
- Log into Venus Control Suite. See: Venus Accounts: How do I log in to Venus Control Suite?
- Open Data Studio from the Apps Menu located in the top right of the VCS landing page. Venus: My navigation has changed after updates

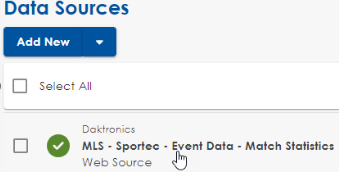

- Under Data Sources, click the MLS - Sportec data source.

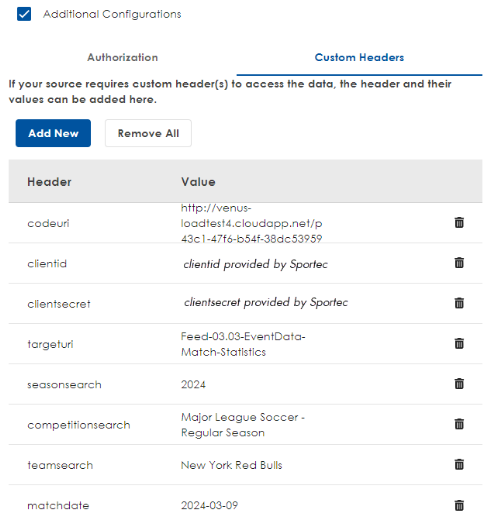

- Under Additional Configuration. Click the Custom Headers tab. There are 7 headers needed. The 8th (match date) is optional.
- To edit a custom header, the current header must be deleted.
- Take note which header will be deleted. It is recommended to delete one header at a time.
- Click the Trash Can on the right of the header to delete the header that will change.
- To re-enter in a custom header, click Add New. Header and Value boxes will appear. Enter the desired header and the desired value.
- Click Save when finished.
👉Only one header can be added at a time. See the table for the required headers.
🔁Repeat steps 5-7 to remove and recreate headers.
|
Header |
Value |
|
codeuri (DO NOT DELETE) |
This codeuri will always be the same. |
|
clientid (DO NOT DELETE) |
Clientid provided by Sportec. |
|
clientsecret (DO NOT DELETE) |
Clientsecret provided by Sportec. |
|
targeturi (It is recommended not to delete this header – create a new data source when adding a new targeturi) |
This points to the desired feed from Sportec. See MLS Sportec Header Values for targeturi entries. Example: Feed-03.03-EventData-Match-Statistics |
|
seasonsearch |
The current season. Format: YYYY Example: 2024 |
|
competitionsearch |
The current competition. See MLS Sportec Header Values for competitionsearch entries. Example: Major League Soccer - Regular Season |
|
teamsearch |
The home team full name. See MLS Sportec Header Values for teamsearch entries. Format: Full Team Name Example: New York Red Bulls |
|
matchdate (optional – if not used, today’s date will be the matchdate) |
The date of the match. Format: YYYY-MM-DD Example: 2024-03-09 |
Related Resource: Data Studio: How do I configure web data sources?
MLS Sportec header values
MLS Sportec Data Feeds (Header: targeturi)
- Feed-03.02-EventData-Match-Raw_Postmatch
- Feed-03.03-EventData-Match-Statistics
- Feed-03.03-EventData-Match-Statistics_Intervals
- Feed-03.03-EventData-Match-Statistics_Periods
- Feed-03.04-EventData-Match-Basic
- Feed-03.05-EventData-Match-Basic_Extended
- Feed-04.02-PositionalData-Match-Raw_Postmatch
- Feed-04.04-Distance-Match
- Feed-04.05-SpeedIntervals-Match
- Feed-04.06-Heatmaps-Match
- Feed-04.07-PositionalData-Match-Statistics
- Feed-04.07-PositionalData-Match-Statistics_Intervals
- Feed-04.07-PositionalData-Match-Statistics_Periods
- Feed-04.09-RealtacticalFormation
- Feed-04.09-RealtacticalFormationInterval
MLS Sportec Competitions (Header: competitionsearch)
- Major League Soccer - Regular Season
- Major League Soccer - Cup Playoffs
- MLS NEXT Pro - Regular Season
- MLS NEXT Pro - Playoffs
- MLS All-Star Game
- Leagues Cup
- Campeones Cup
- CONCACAF Champions Cup
- MLS Test
- Club Friendly Matches
- U.S. Open Cup
MLS Teams (Header: teamsearch)
- Los Angeles Football Club
- St. Louis CITY SC
- Nashville SC
- Atlanta United
- Real Salt Lake
- New York Red Bulls
- Philadelphia Union
- New England Revolution
- Orlando City
- Columbus Crew
- FC Dallas
- Seattle Sounders FC
- Inter Miami CF
- LA Galaxy
- Chicago Fire FC
- Austin FC
- Colorado Rapids
- Charlotte FC
- Houston Dynamo FC
- New York City FC
- D.C. United
- CF Montréal
- San Jose Earthquakes
- Sporting Kansas City
- Toronto FC
- Portland Timbers
- Minnesota United
- FC Cincinnati
Data Trimming
- Click Next. Data Trimming should appear. Trimming data will filter the data to only send the data that is needed to display.
- Click Edit Properties.

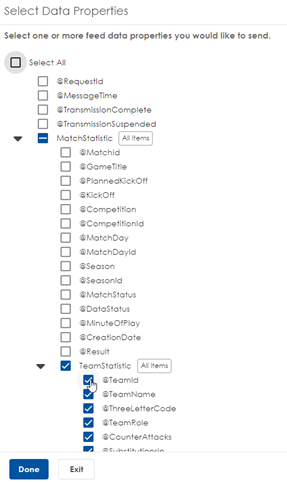

- Select Data Properties should appear. Select the fields that are needed. These will be sent to Content Studio for content creation.
- Click Done when finished.
- On the top left corner, under Configure Web Data Source, click Save.
KB ID: 000028405
