Data Studio Baseball: How do I combine AL and NL out-of-town into a single feed

Topic

  • How Do I Combine American League and National League into a Single Feed in Out-of-Town?
  • How do I get all MLB teams into a single output in Out-of-Town?

Environment

  • Product: Data Studio Baseball
  • Components: Out-of-Town outputs
  • Control System: Professional Baseball, Show Control System
my apps_ds baseball 3.jpg


Steps

Set up inputs prior to setting filters.  See: Data Studio: How do I configure inputs for Out-of-Town?

  1. Log into the interface.
  2. Click on the hamburger icon in the top left corner to expand the left side menu.
  3. Select Filters.

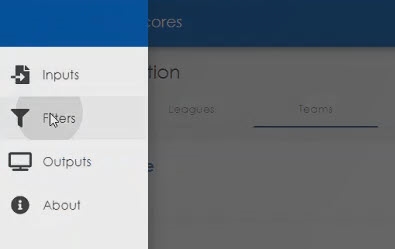

    MLB OOT Interface Menu_Filter.jpg
  4. Select Add Filter.
    1. Filter Type: Scores by Team

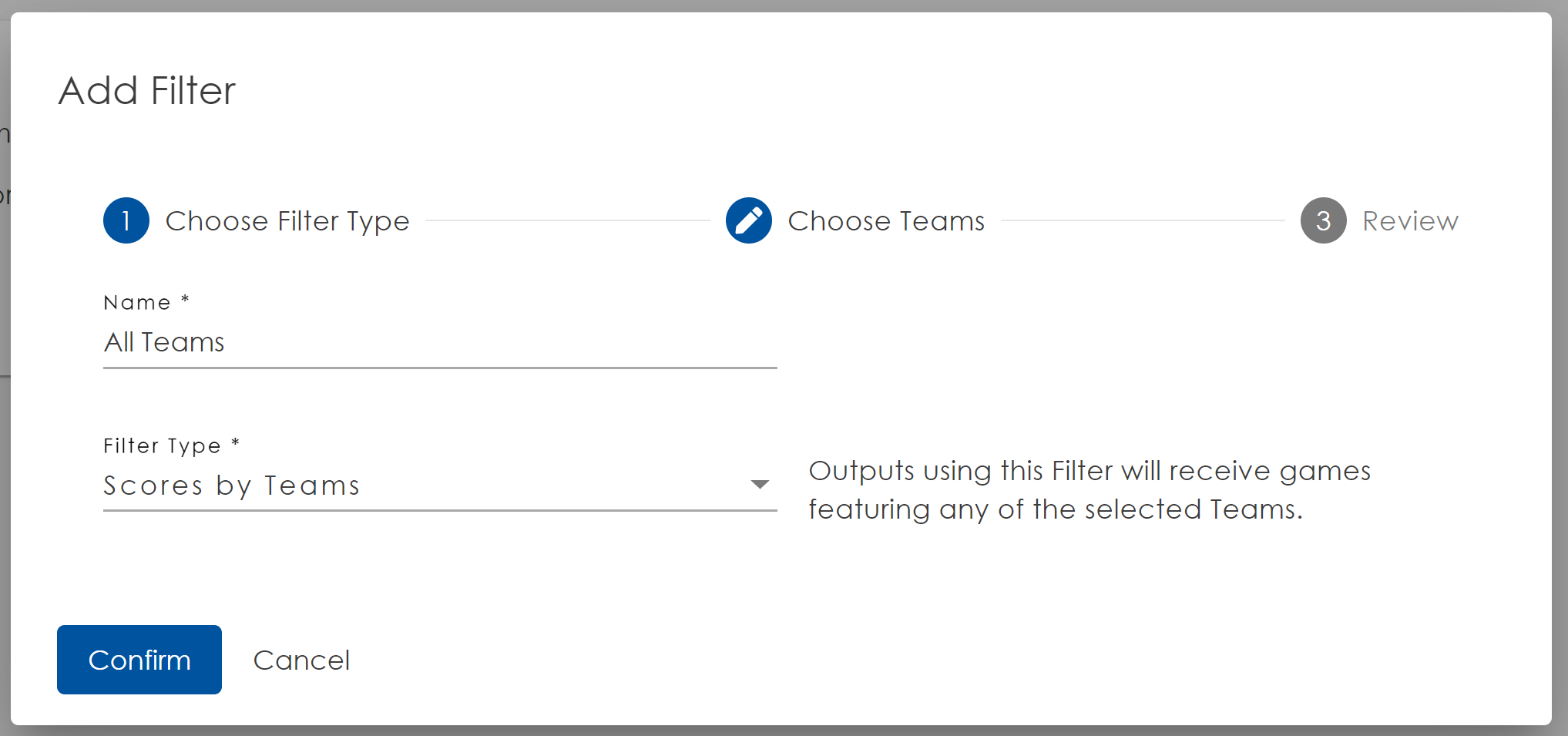

      All Teams Filter.PNG
    2. Select all teams (except, usually, the home team if it isn't already disabled)

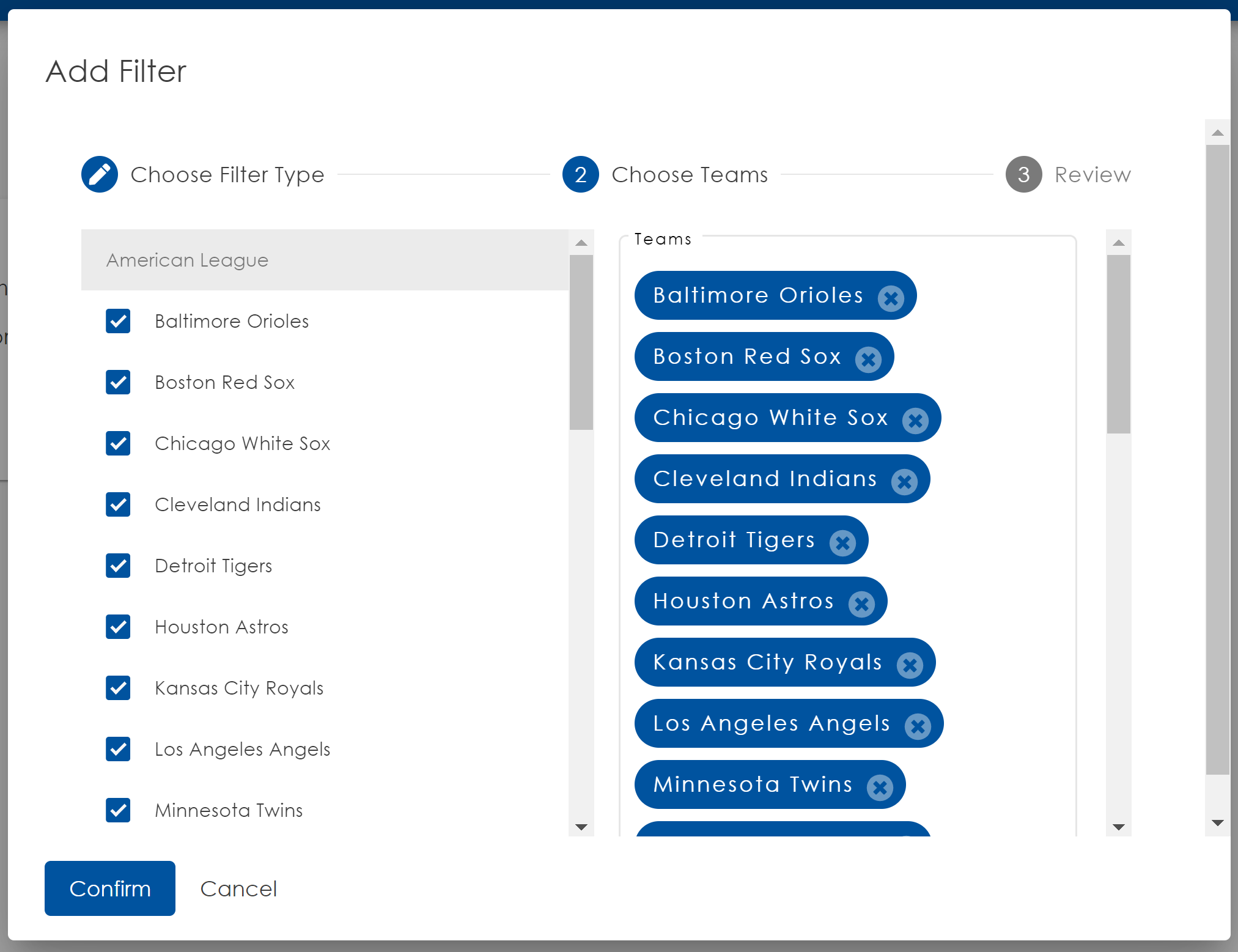

      All Teams Chosen.PNG
    3. After reviewing, click Confirm to save the filter.

When creating the output, it is recommended to use ERTD Scores for the output type since it allows for the maximum number of games possible at 18 games per output.

For more information on creating outputs, see How do I configure outputs for Out-of-Town DD4118586

KB ID: DD4163032
