How do I remove the module on a Digital Street Furniture display?

Topic

  •    How to remove a module from a front-access DSF display?

Environment

  • Product Family: DSF Digital Street Furniture
  • Product: Message Display
  • Components: Module, module removal tool

Steps

  1. Disconnect power to the display.
  2. Open door to gain access to modules.  DD2625161 How do I open the door on a Digital Street Furniture display?

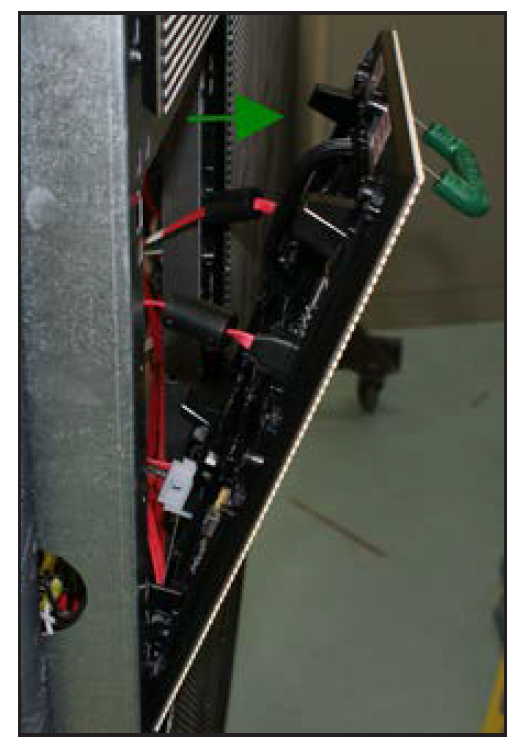

  3.  Use a module removal tool (Daktronics Part #TH-1198) to pull top portion of module out slightly. See image below.
  4. Lift up module and pull it from the display just far enough to reach around to the back of the unit.
  5. Attach one end of a safety lanyard to the rings on either the top or bottom of the module and the other end to a secure location within the display to prevent the module from falling if dropped.
  6. Disconnect the power and signal cables from the rear of the module.
  7. Reverse these steps to install a module in a display.

DSF module access.PNG

KB ID: DD4080941
