FrameWrx: How to Find the Dimensions of Your Display

Topic

Before creating or exporting content in FrameWrx, it is important to know the exact pixel dimensions or aspect ratio of the display where the content will be shown. Using incorrect dimensions can result in scaling issues, cropping, or black bars when content is displayed.

The process for finding display dimensions depends on the type of display and control system being used. Confirming the correct pixel dimensions ensures content created or exported from FrameWrx appears as expected.

Environment

  • Product: FrameWrx by Daktronics
  • Component: Content Creation
  • Control System: FrameWrx Design

FrameWrx by Daktronics is a cloud-based content design platform that enables anyone, anywhere to access professionally designed templates to elevate their brand for event production and promotions. This timesaving platform simplifies content creation, maximizing the impact of digital video displays and social communication. Event producers of any ability can access top-level, intentionally designed templates, created by the professional digital artists who provide content for professional stadiums.

MicrosoftTeams-image (17).png

Steps

🔽Use the arrows to expand and collapse the following sections.

Venus Control Suite (VCS) Displays

For displays controlled by Venus Control Suite (VCS), display dimensions are found directly within the VCS interface.

Cloud-Hosted: Find Display or Zone Dimensions in VCS

  1. Log into Venus Control Suite.  See: Venus Accounts: How do I log in to Venus Control Suite?
  2. Navigate to the Displays App.

  1. Click on an existing display.

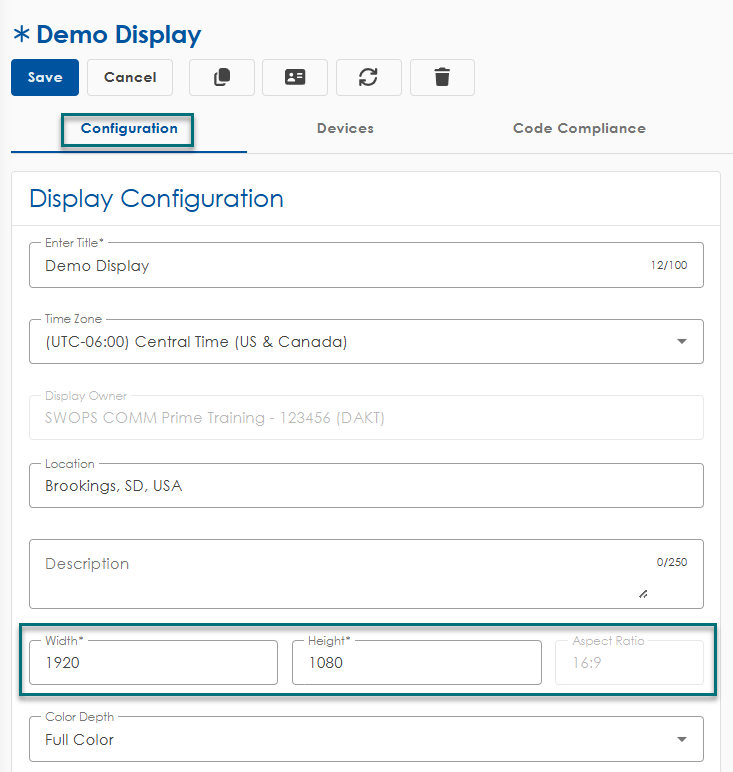

  2. In the Configuration tab locate the pixel dimensions (width x height) and aspect ratio.

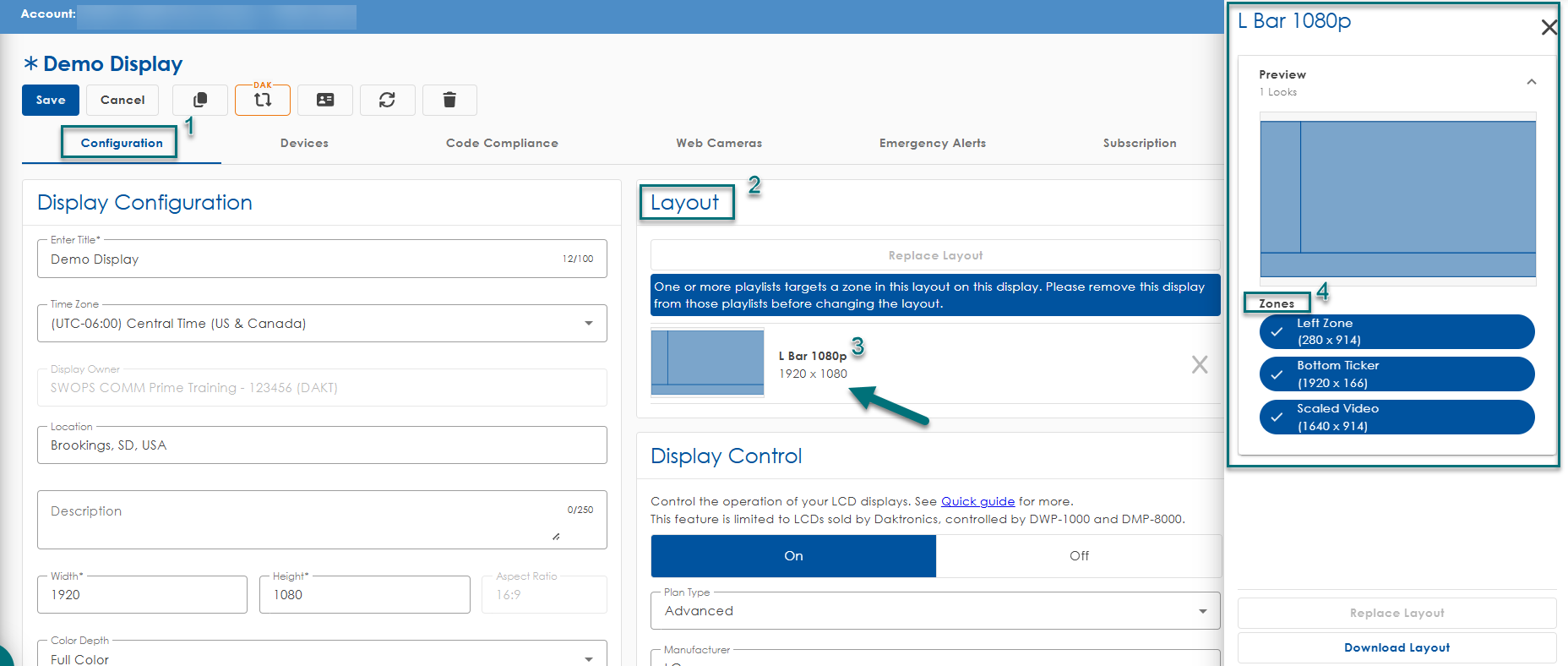

  1. If the display uses zones:
    1. In the Layout Section of the Configuration Tab, select the layout
    2. The zone properties for the selected layout are displayed on the right-hand side, including pixel dimensions for the specific zone.

Locally Hosted: Find Display or Zone Dimensions in VCS
  1. Log into Venus Control Suite using the desktop icon.
  2. Click on the Main Menu icon in the upper-left corner (three lines).
  3. Click on Displays.
  4. Your display size will be listed in the middle column.
    1. Display size represents pixels wide x pixels high, i.e. 250 pixels wide x 140 pixels high.

Displays Dimensions.jpg

Use these dimensions when creating content in FrameWrx: FrameWrx: How do I create and export display ready content from a template.

Daktronics Video Boards

Daktronics video boards have fixed pixel dimensions defined during system installation.

Determine Video Board Dimensions

Video board dimensions can usually be found in:

    • Project documentation or submittals
    • Installation drawings or specification sheets
    • Daktronics controller configuration
    • Information provided during system installation or training
    • Daktronics Technical Support

Common Examples include:

    • 1280 x 720
    • 1920 x 1080
    • 3840 x 2160
    • Custom resolutions based on board size and pixel pitch

Use the exact pixel resolution of the video board when creating content in FrameWrx: FrameWrx: How do I create and export display ready content from a template.

Other Display Types

LCD Displays

LCD Displays commonly use standard resolutions defined by the manufacturer.

Common LCD resolutions include:

      • 1920 x 1080 (Full HD)
      • 3840 x 2160 (4K)

LCD display dimensions can be found in:

      • Display or monitor settings menus
      • Operating system display settings
      • Manufacturer documentation

Additional display types include:

    • Lobby or concourse displays
    • Ribbon or auxiliary displays
    • Street Furniture
    • Informational or secondary displays

Always confirm the resolution before exporting content from FrameWrx: FrameWrx: How do I create and export display ready content from a template.

Unable to Determine

If you are unable to determine your display’s dimensions:

  • Do not assume or guess the aspect ratio or dimensions
  • Confirm pixel dimensions using system documentation or support resources
  • Contact FrameWrx@daktronics.com for assistance.
    • Having the display name, location, or order number available can help expedite support.
Quick Reference
  • FrameWrx content should always be created and exported using the exact pixel dimensions or aspect ratio of the target display.
  • Incorrect dimensions may result in black bars, cropping, or scaling issues.
  • Verifying display dimensions before content creation helps ensure accurate playback and a smoother workflow.
Summary Table
Display TypeWhere to Find Dimensions
Venus Control Suite DisplayDisplay or Zone settings in VCS
Daktronics Video BoardProject documentation or controller configuration
LCD DisplayDisplay settings or manufacturer documentation
Other Display TypesSystem documentation or Support

When in doubt, contact FrameWrx@daktronics.com for assistance.



Related Resources:
FrameWrx: How do I create and export display ready content from a template.
FrameWrx: How do I create and export display ready content from blank projects
FrameWrx: How do I resize a project to fit my display dimensions
FrameWrx: How do I choose the correct template for my content?
FrameWrx: How do I get help?
