FrameWrx: How do I create and export display ready content from a template.

Topic

Settings for saving and exporting display ready content.

👉 The default size of the templates is typically 1080x1920 or 16:9 aspect ratio.  It is necessary to select pixel dimensions of your display before creating from a template. Otherwise, the content might not fit the display as intended.  To verify your display size, follow: Venus Displays: How do I find the dimensions of my display?

Environment

  • Product:
  • Component: Content Creation
  • Control System: FrameWrx Content
FrameWrx by Daktronics is a cloud-based content design platform that enables anyone, anywhere to access professionally designed templates to elevate their brand for event production and promotions. This timesaving platform simplifies content creation, maximizing the impact of digital video displays and social communication. Event producers of any ability can access top-level, intentionally designed templates, created by the professional digital artists who provide content for professional stadiums.
FrameWrx horizontal.png

Steps

In this article you will find:



Starting with a template

Logging in: FrameWrx: How do I log in to my account.

  1. From the Projects page, click Create, choose Create from Template.


  1. Locate the desired template.  FrameWrx: How do I choose the correct template for my content? If needed, use the search function or navigate the list of templates via the left side category menu.

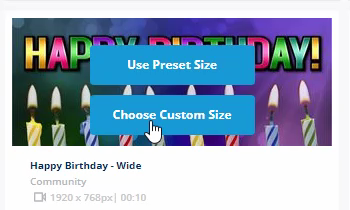

  2. Hover over the template thumbnail and select Choose Custom Size.

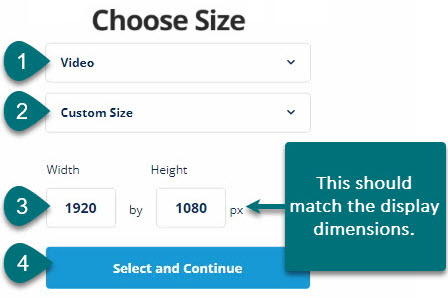

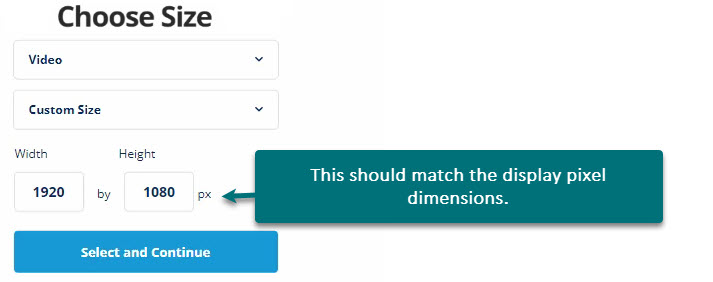

  1. In the Choose Size window, select the following:
    1. Video
    2. Custom
    3. Enter your video display's pixel width and height.
    4. Click Select and Continue.


This will open the template up in the FrameWrx design editor.

Rename your design.

  1. On the top of the design editor, click on the pencil icon.
  2. In the Set Title window, rename the design.


Editing

To edit your template, see FrameWrx: Working with text elements and fonts.
For more information on editor tools, see FrameWrx: Editor tools

👉Minor adjustments might need to be made to the template to look best on your display.

How to export the project.

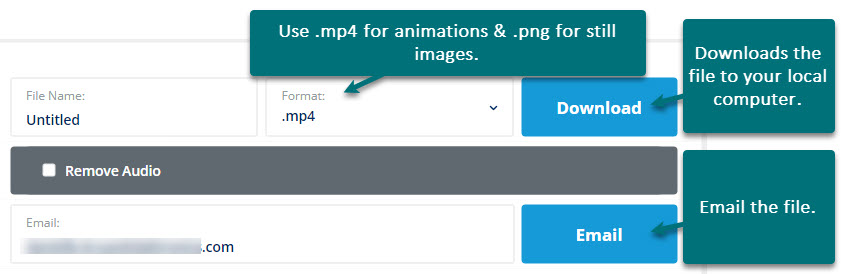

  1. Click on the Export button.


  1. Enter the export parameters.
    1. File Name: This will be the name of the exported content.
      • Format should be .mp4 for animated content, stills can be .png.
    2. Click Download.
    • This will save the file to your local computer's Downloads folder or default location.
    • The email option will send an email with the file attached.  The email will be from Daktronics<noreply@designhuddle.com> and the title of the email will match the title of the content.


How to Transfer the content to your Digital Media Player.

For more information on importing graphics onto the Daktronics DMP-8000, see DMP-8000: How do I import graphics into DMP-8000?

Once the content has been imported onto the DMP-8000, you can play out the file using Show Control or Venus Control Suite.

For more information, see the following articles:
Show Control System: How do I create script buttons?
Show Control System: How do I create and edit a quick display container and button?
Venus Scheduling: How do I schedule content in Venus Control Suite?
