LED Displays: How to Determine Optimal Viewing Distance?

Topic

Understand how to determine the optimal viewing distance for LED displays to ensure content is legible, engaging, and effective for the intended audience.

Viewing distance impacts not only legibility but also the perceived quality of the display.

Environment

  • Product: Daktronics LED Displays
  • Component: Pixel Pitch, Content Design

Steps

Understand Pixel Pitch and Its Impact
    • Pixel pitch is the distance between the centers of two adjacent pixels, measured in millimeters.
    • Smaller pixel pitch = higher resolution and closer optimal viewing distance (e.g., retail, lobbies).
    • Larger pixel pitch = suitable for long-distance viewing (e.g., billboards, stadiums).

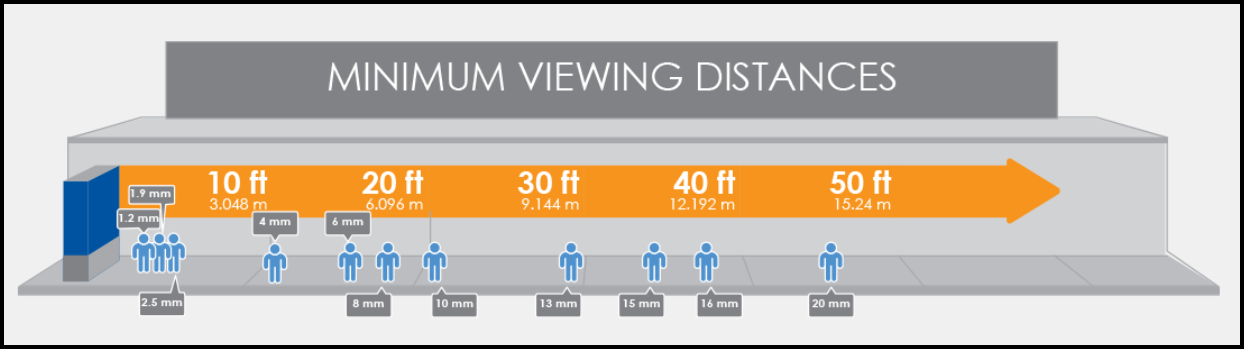

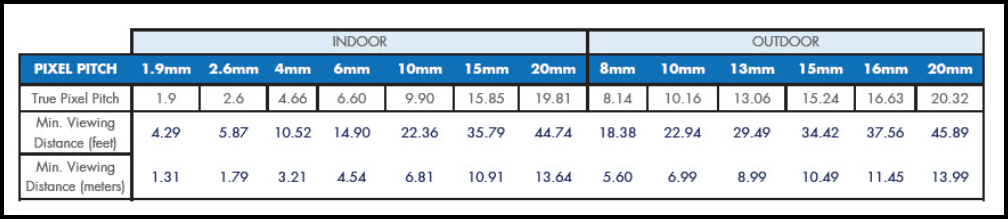

💡 A general rule of thumb is that the optimal viewing distance (in feet) is approximately 3x the pixel pitch (in mm). For example, a 10 mm pitch display is best viewed from about 30 feet away.

Consider the Audience and Application

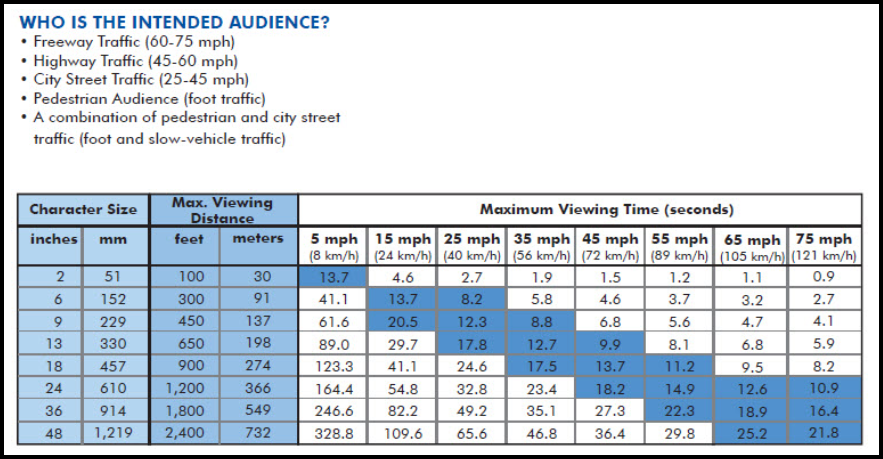

    • Moving Audiences (e.g., roadside, transit): Use larger text and higher contrast for quick readability.
    • Seated or Stationary Audiences (e.g., arenas, auditoriums): Smaller pixel pitch allows for more detailed content.
    • Close-Range Viewing (e.g., retail, lobbies): Use fine-pitch displays (≤ 2.5 mm) for crisp visuals.

Use Text Size Guidelines

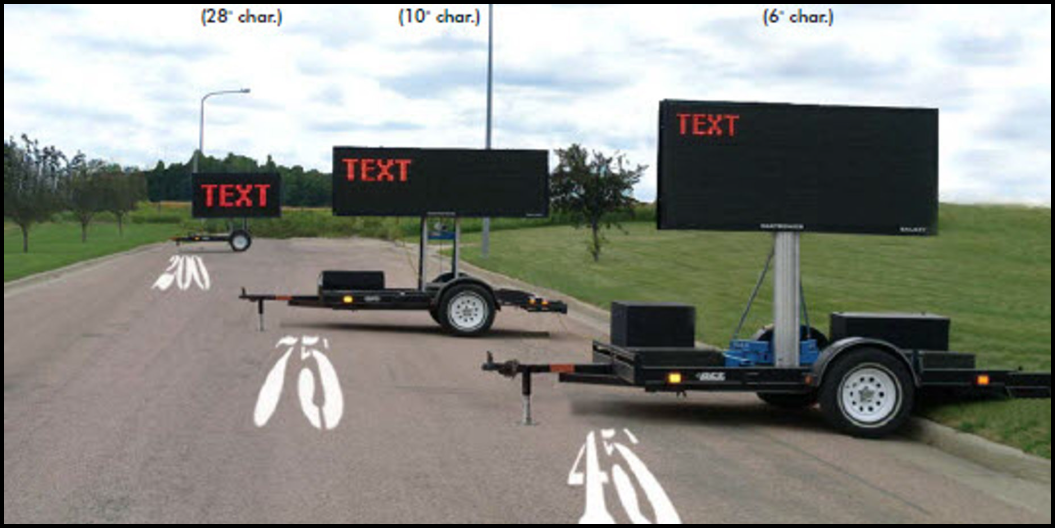

    • Text height should be at least 1 inch for every 25 feet of viewing distance. For example, a 4-inch tall character is readable from approximately 100 feet away.

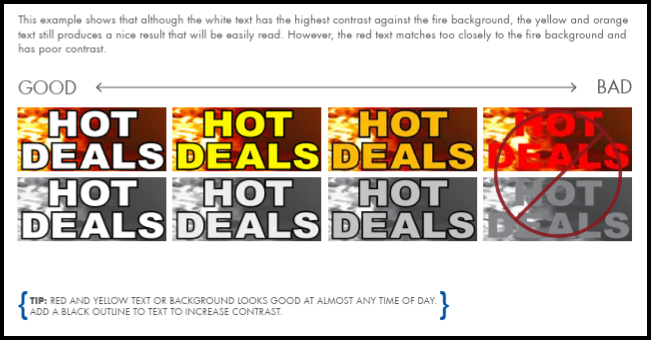

    • Use high-contrast color combinations (e.g., white on black, yellow on blue) to improve legibility.
Test in Real-World Conditions
    • View the display from various distances and angles.
    • Consider lighting conditions, motion, and audience behavior.
    • Make adjustments based on actual visibility and legibility.

    • Overly detailed content on a high-pitch display may appear pixelated or cluttered.

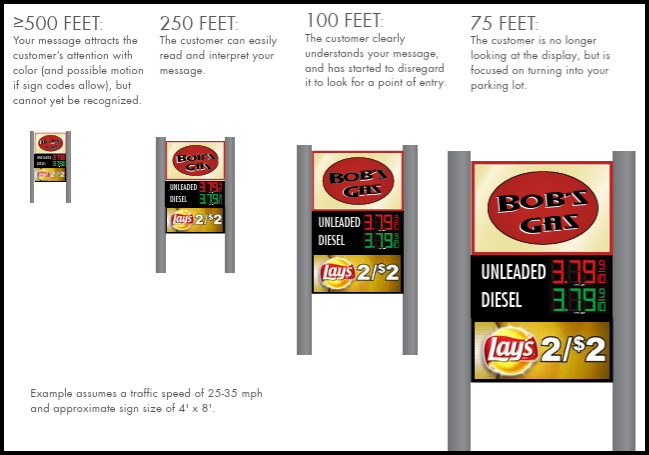

    • Simpler designs with bold text and minimal detail are more effective for long-distance viewing.

⚠️Note: If you are testing content and standing too close to your display, your content may appear blurry or pixelated.
Please move to the optimal viewing distance based on your display’s pixel pitch. From the correct distance, your content should appear clear and sharp.





      Related Resources
      LED Learning Center
      Text Size: Viewing Distance and Moving Audience
      Check Your Work: How to Preview Content on Your Display
      A Guide to Creating Content for LED Displays
      Create Dynamic Digital Messages
      What is the minimum distance that a billboard should be viewed from?

          KB ID: 000030569
