How do I set input and output resolutions on a Novastar H Series Processor?

Topic

How do I set input and output resolutions on a Novastar H Series Processor?

Environment

  • Product: Novastar H Series Processor
  • Component: Novastar H2, H5, H9, H15, H20 Series Processor
  • Control System: Novastar

Steps

Log into the Web Interface on the Novastar H Series processor, then complete the following steps:

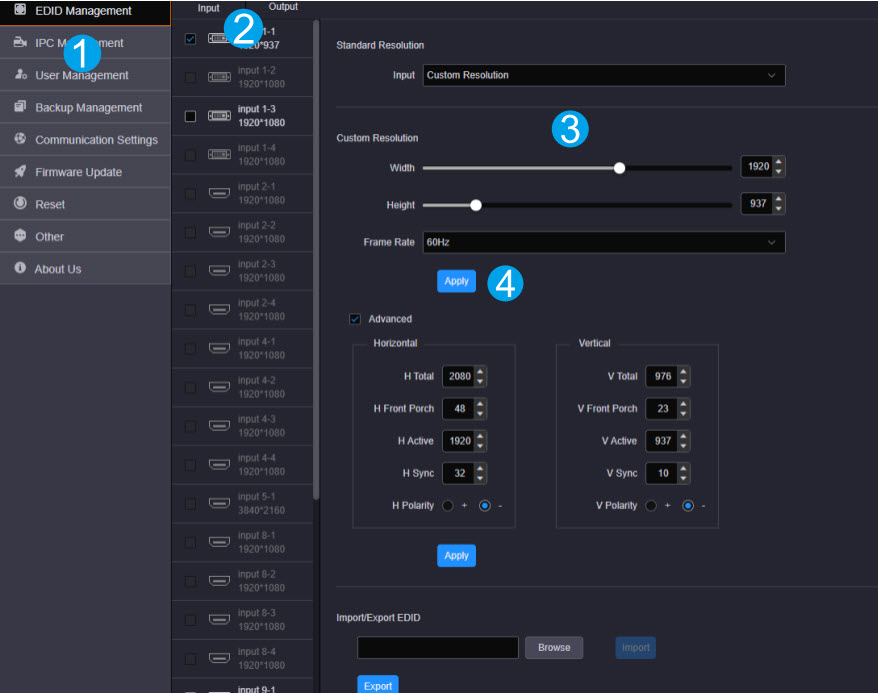

  1. Click EDID Management on the left to access the input and output EDID settings page.
  2. Click the Input or Output tab, then select one or multiple input or output connectors.
  3. Set the EDID parameters on the right.
  4. Click Apply to make the settings take effect.

Notes:

  • Setting the EDID for multiple input or output connectors simultaneously is only applicable to the connectors of the same type.
  • After applying the settings, you can export the configuration file for future use as a backup if necessary.
