VIP Stored content failed to display, invalid format

Potential Symptoms

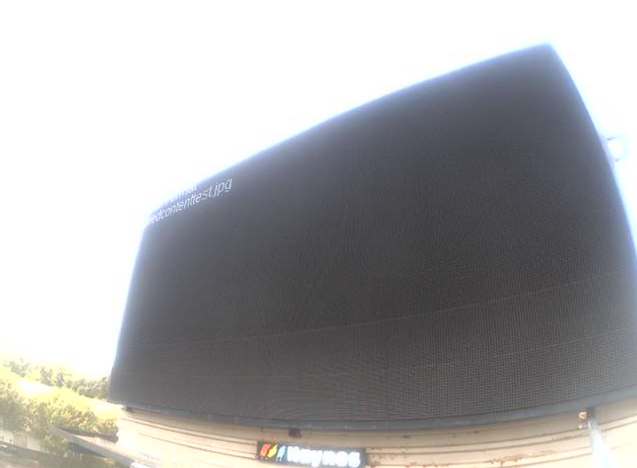

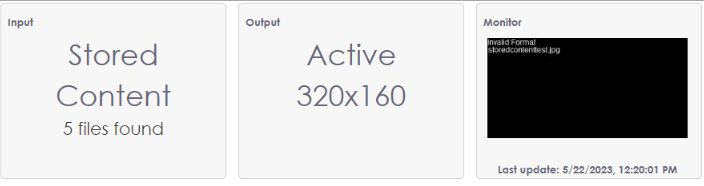

  • Display is showing : Invalid Format xxxx.jpg.
  • Display not playing images when in stored content mode.


Environment

  • Product: Video Image Processor 5x6x
  • Component: VIP-5160, 2022.06.27-b2427 Firmware
  • Control System:

Cause

  • Unsupported format.
    • Supported image types are JPEG, PNG, and 24- and 32-bit.

Resolution

Contact Daktronics Technical Support at 1-800-325-8766 or via My Support

For Temporary Operation

  • Use https://jpg2png.com/ or something like it to convert files to PNG, making sure not to have special characters or spaces in the file names
  • OR
  • Use Snipping Tool (Windows Key + Shift + S) or Snagit to crop the image as a new file and re-upload to stored content.

KB ID: 000027222
