RC-200: How to setup Server and Client mode in base stations.

Topic

How to setup RC-200 base stations in server client mode?
  • Most often used for RC-200 direct control of Football DOG/Play Clocks without an All Sport 5000.

Environment

  • Product Family: Sports Product
  • Product: Multiple Wireless Scoreboards, DOG (play) clocks, timers,
  • Component: RC-200 Base Station (two or more)
  • Control System:  Single RC-200 handheld controlling multiple boards simultaneously

Steps

    1. (NOTE:  If there is an All Sport 5000 radio controlled fixed digit scoreboard in the area, the RC-200 network must be set to a different broadcast group then the Allsport 5000/scoreboard)
    • Set all of the RC-200 Base Stations to the same Channel (usually channel 1) by changing S2 on the Base Stations.
      • Note: by default, the base stations are normally set to channel 1 when they are shipped out.
    • Set all of the RC-200 Base Stations to the same BCAST/Group (usually BCAST 1) by changing S3 on the Base Stations.
      • Note: by default, the base stations are normally set to BCAST 1 when they are shipped out.
    • The Function dial (S1) must be set to 2.

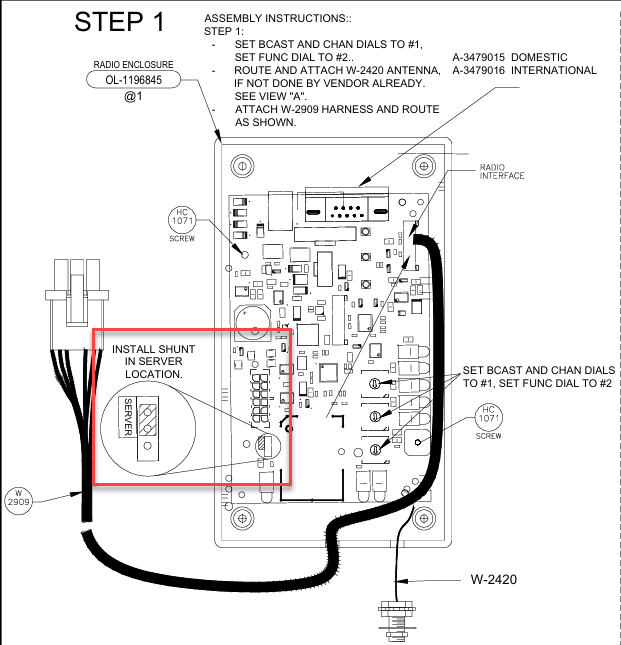

    • Wireless Base Station Server/Client Mode is selected via the "X1" Server/Client Jumper.
    • Insert the jumper over the top two posts as shown in the "CLIENT" label on the circuit board to put one or more of the wireless Base Station in Client Mode.
    • Insert the jumper over the top two posts as shown in the "SERVER" label on the circuit board to put one of the wireless Base Stations in Server Mode.
      • Note: by default, the base stations are normally set to server mode when they are shipped out.
    • Set the RC-200 handheld controller to the same group/bcast and channel as the base stations.
    • Verify everything is operating normally.
      1. To change the Sport Code being used on the RC-200 handheld:
        1. Press the ALT key in the bottom left.
        2. Then press the NEW CODE button in the bottom right.
        3. Press ENTER/YES to select a new code.
        4. Enter in the correct code from the number pad (correct codes can be found on inserts - e.g. code 05 for play clocks).
        5. Press ENTER/YES to confirm changes.

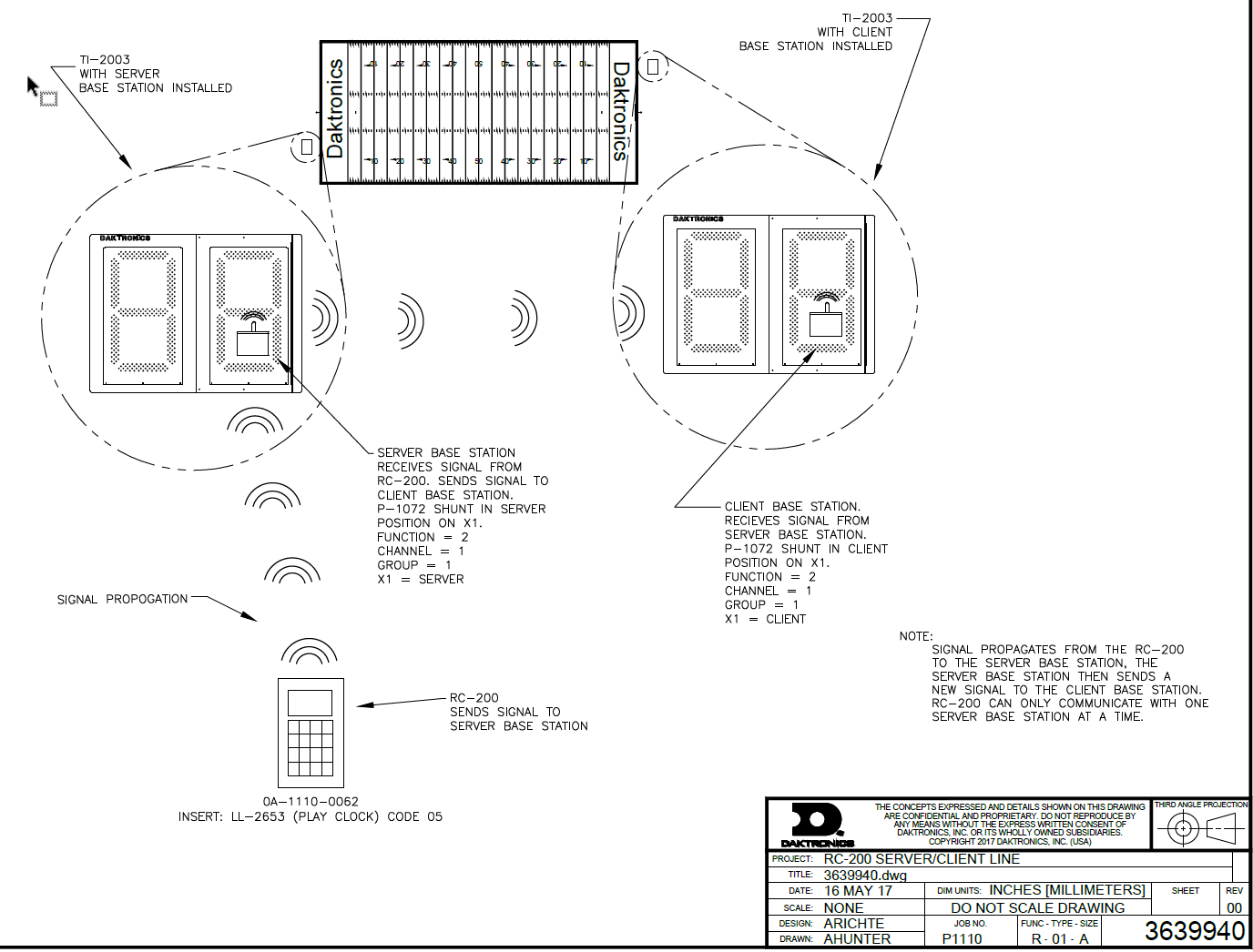

    See Below image for typical RC-200 control of DOG clock system:
    RC-200 Client Server


    KB ID: 000024766
