Lighting Triggers: How to Integrate with Ephesus (ETC) Lighting Triggers
Topic
How do I integrate my Show Control System with Ephesus (ETC) Lighting?
How can I trigger an Ephesus (ETC) lighting preset from a Display Studio button?
Environment
- Product:
- Components: Data Server, Dedicated Triggers, Ephesus (ETC) Lighting
- Control System: Show Control System (SCS)
Steps
Data Server and Display Studio Setup
- Ensure that the "Ephesus Lighting" Widget is installed in Data Server:
- NOTE: If the Ephesus Lighting Widget hasn't been installed in Data Studio, contact the Technical Helpdesk

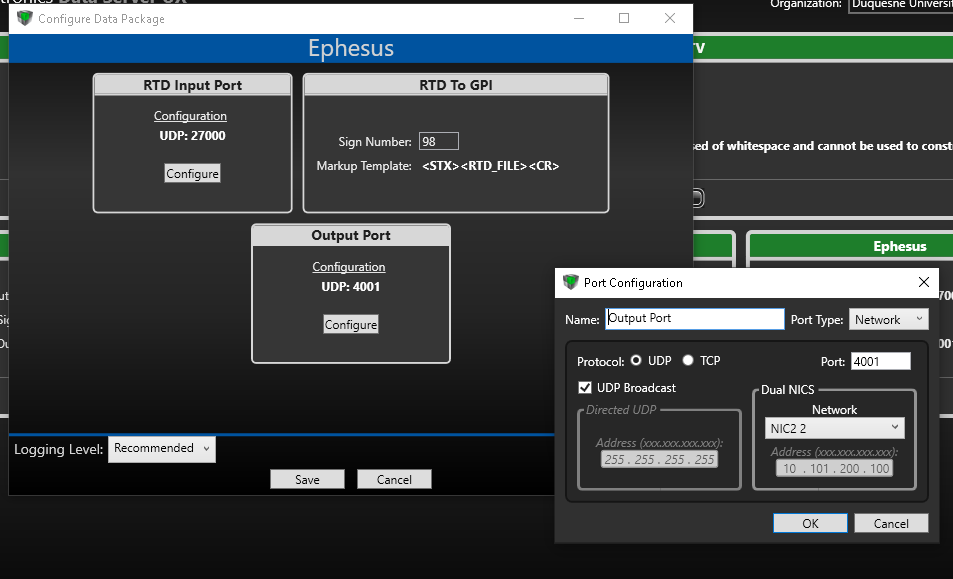

- Click the gear icon in the bottom right hand corner of the Ephesus Lighting tile
- Set the Input Port to UDP 27000
- Sign Number: Refer to DMP-7000, DMP-8000: How to name and number signs in a control system? for Daktronics Sign Numbering Standards
- Output: UDP 4001
- Note: 4001 isn't a fixed port, check with the ETC system to see what port is needed here
- Ensure that Advanced Scripting is enabled in Display Studio by going to the Hub, mouse over Properties, and select Settings
- In the Settings dialog box, ensure that the checkmark is selected next to Advanced
Display Studio Button

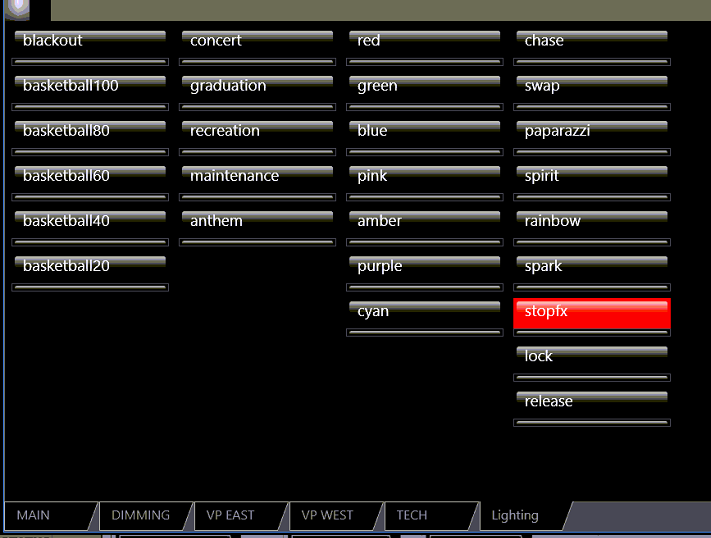

- Create a new button in Display Studio. In step one, choose System Control
- Step two, choose Advanced
- Step three, choose Play

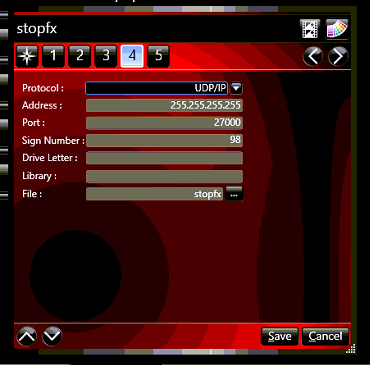

- Step four configure the following options:
- Protocol: UDP/IP
- Address: 255.255.255.255
- Port: 27000
- Sign Number: set to the sign that is configured in Data Server, typically in 90-99 range
- Drive Letter: Leave blank
- Library: Leave blank
- File: type in the command that you wish to send to the Ephesus Lighting system.
- Refer to you list of string commands from Ephesus. Examples might be different levels (basketball60), different effects (paparazzi), or different event types (graduation)
- Step five, select Number of Times and put 1 in the field
