All Sport Lite App: How do I operate a basketball scoreboard?

Topic

  • How do I operate a basketball scoreboard with All Sport Lite (formerly DAK Score)?

Environment

  • Product: All Sport Lite (formerly DAK Score) app
  • Components:
  • Control System: Scoreboard with All Sport MX-1

Steps

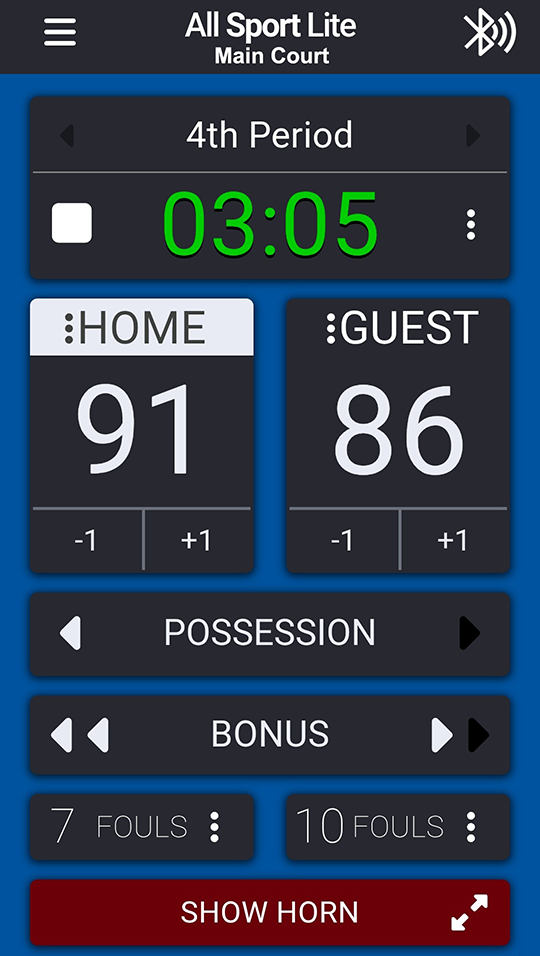

  1. After connecting to the MX-1, tap the main menu button (Menu Button.png), and select Settings. Under Select Sport, ensure Basketball is selected. If it is not, select it and tap OK.
  2. Tap Back to save the settings and begin basketball operation.

  3. Use the +1 and -1 buttons to adjust the team scores.
  4. Tap the POSSESSION and BONUS arrows to illuminate the appropriate indicators on the scoreboard.
  5. Tap FOULS to increase the fouls for the appropriate team. Tap the settings button () followed by -1 to subtract a team foul.
  6. Use the left and right arrows to change the PERIOD.

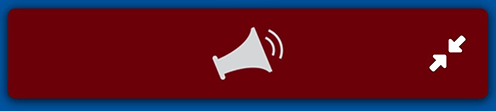

  7. Tap SHOW HORN to reveal the horn button. This is to prevent accidentally sounding the horn. Tap the inward facing arrows to hide the horn button.


Auto Horn

To enable/disable the Auto Horn function:

  1. Tap the settings button () next to the clock.
  2. Select Enable Auto-Horn or Disable Auto-Horn to set the horn behavior. With Auto Horn enabled, the horn will sound automatically when the clock counts down to 00:00 or when it counts up to the period value.
