All Sport Lite App: How do I adjust Team Name Message Centers (TNMCs)?

Topic

  • How do I adjust Team Name Message Centers (TNMCs) in All Sport Lite (formerly DAK Score)?

Environment

  • Product: All Sport Lite (formerly DAK Score) app
  • Components:
  • Control System: Scoreboard with All Sport MX-1

Steps

  1. After connecting to the MX-1, tap the main menu button (Menu Button.png), and select Settings.

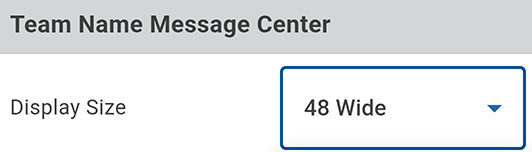

  2. Under Team Name Message Center, select a Display Size of either 48 Wide or 32 Wide. Tap Back when finished.



    Note: In general, most outdoor scoreboards up to 20' wide will use the smaller 32 Wide TNMCs.

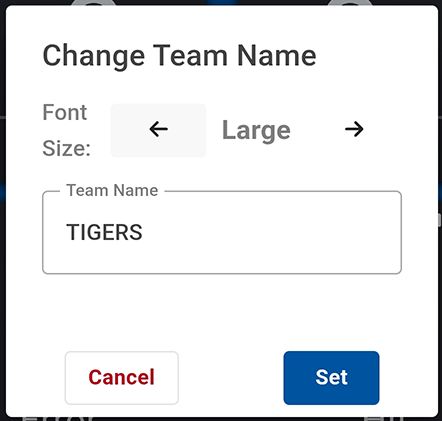

  3. While in the game, tap the settings button () next to the HOME or GUEST team name and then tap Team Settings.


  4. Type in the desired custom Team Name.
  5. Use the left and right arrows to select a Font Size:

    All Sport Lite App Font All Sport Console Font
    SmallSingle Stroke - Alternate Narrow
    MediumSingle Stroke - Standard
    LargeDouble Stroke - Alternate Narrow
    X-LargeDouble Stroke - Standard

    Note: Unlike the All Sport consoles which only use capital letters, All Sport Lite allows the use of both uppercase and lowercase letters for TNMCs.

  6. Tap Set when finished.

KB ID: 000004401
