All Sport Lite App: How do I operate a soccer scoreboard?

Topic

  • How do I operate a soccer scoreboard with All Sport Lite (formerly DAK Score)?

Environment

  • Product: All Sport Lite (formerly DAK Score) app
  • Components:
  • Control System: Scoreboard with All Sport MX-1

Steps

  1. After connecting to the MX-1, tap the main menu button Menu Button.png, and select Settings. Under Select Sport, ensure Soccer is selected. If it is not, select it and tap OK.

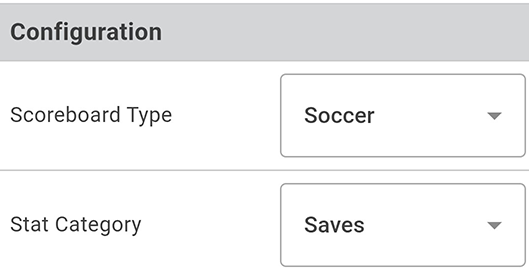

  2. Under Scoreboard Type, select either Football or Soccer, depending on the scoreboard model in use.
    • If the scoreboard generally scores football games (model designation "FB-####"), select Football. This would also be selected for multisport ("MS-####") models.
    • For most other dedicated soccer models ("SO-####"), select Soccer.

  3. Under Stat Category, select which stat to show on the scoreboard: Corner Kicks, Saves, or Fouls. Note that standard soccer scoreboards do not include vinyl Fouls captions.
  4. Tap Back to save the settings and begin soccer operation.

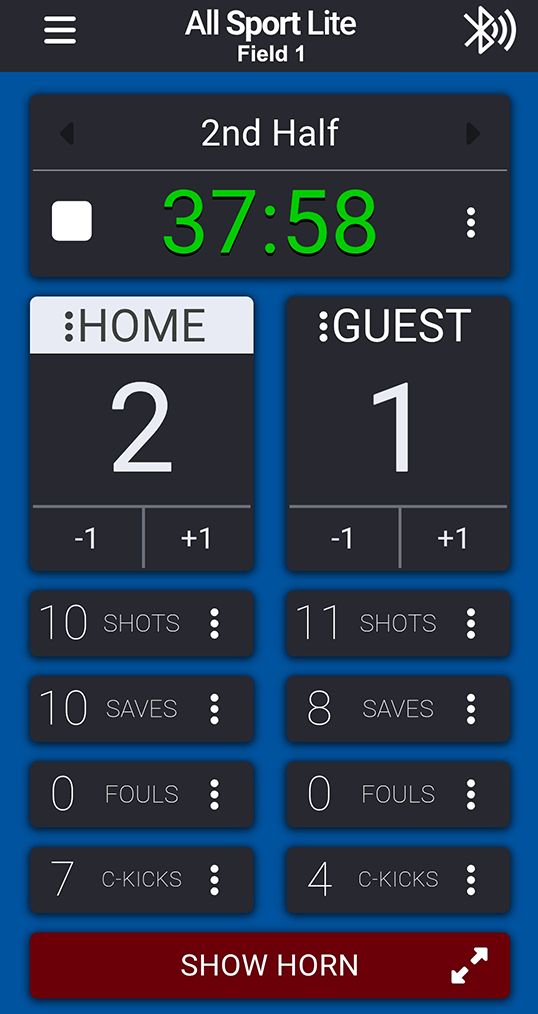

  5. Use the +1 and -1 buttons to adjust the team scores.
  6. Tap SHOTS, SAVES, FOULS, or C-KICKS to increase the stat for the appropriate team. Tap the settings button () next to a stat followed by -1 to subtract.
  7. Use the left and right arrows to change the HALF.

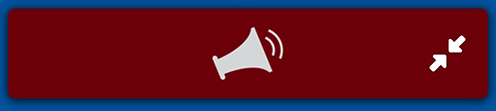

  8. Tap SHOW HORN to reveal the horn button. This is to prevent accidentally sounding the horn. Tap the inward facing arrows to hide the horn button.


Auto Horn

To enable/disable the Auto Horn function:

  1. Tap the settings button () next to the clock.
  2. Select Enable Auto-Horn or Disable Auto-Horn to set the horn behavior. With Auto Horn enabled, the horn will sound automatically when the clock counts down to 00:00 or when it counts up to the period value.
