AF-6700 or AF-6800: How to upload configuration or firmware files

Topic

  • How do I upload firmware on an AF-6700.
  • How do I load messages onto a AF-6700.
  • How do I load fonts onto a AF-6700.
  • How do I load a config file to an AF-6700.

Environment

  • Product Family: Transportation
  • Product: Data Display Legacy AF-6700, AF-6800
  • Component: PCB236 / 237, PCB195 controller board
  • Control System: DVS; DDX Modal, DMS Utility

Steps

  • ⚠️ Before updating firmware on the controller verify that the FPGA version that's currently on the controller is compatible with the application firmware.  Only load the application firmware rev that uses the same FPGA version.

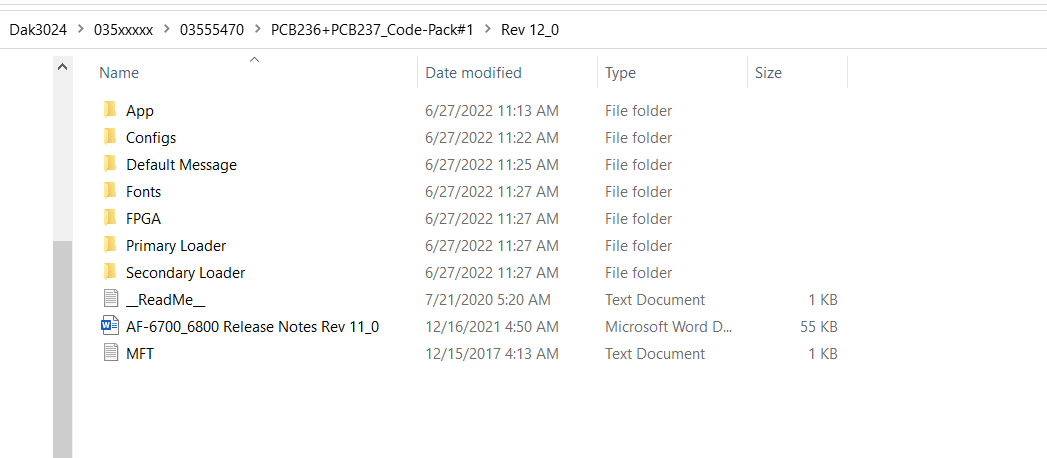

    Example: If the FPGA folder version has the version loaded on the controller you can load the app firmware listed in the app folder.  If the FPGA is different version of the app, you are loading then you will need to load the last compatible version that calls out the FPGA version loaded on the controller.  you can search the archive folder for previous app version in jshared dak 3024.
  1. Follow kb000003803  steps 1-14 to verify How to update firmware on the ILCS2 Image controller

    If you load a non-compatible app version to FPGA it can cause false errors.
  2. Download and run the DMS utility. DMS Code Uploader Utility
  3. Disconnect from any other networks you may be connected to, and close DVS if it is running.
  4. Enter a Location Name
  5. Select Add Displays.

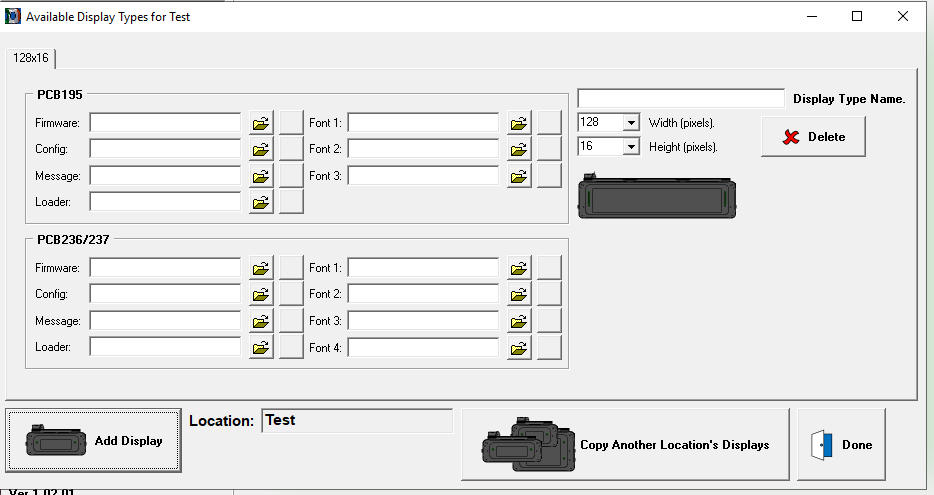

  6. Capture.PNG
  7. In the new window, Select Add Display
  8. Make sure pixel height and width are set correctly
  9. Capture2.PNG
  10. Put the file you wish to upload into the correct sections for PCB236/237 or PC195.
    • Note: App=Firmware  and Secondary loader= loader when selecting the .hex files in firmware folder.
      • Note Secondary loader will need to be updated on older display to push firmware; other method is setting the controller to loader mode via dipswitch
    • Note: SS hex file and DD hex file are for either single-sided or double-sided

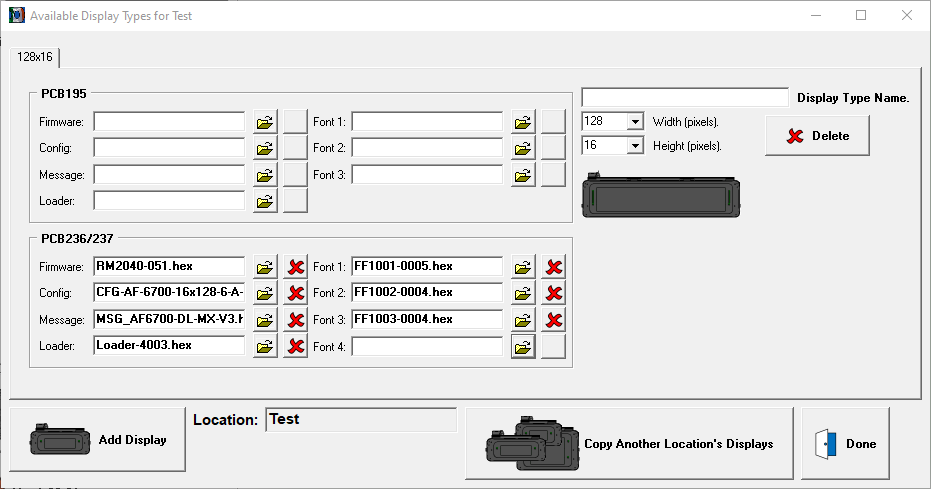

    • Using firmware 03555470 as an example: 000002506.png
  11. Select Done.
  12. Select Add

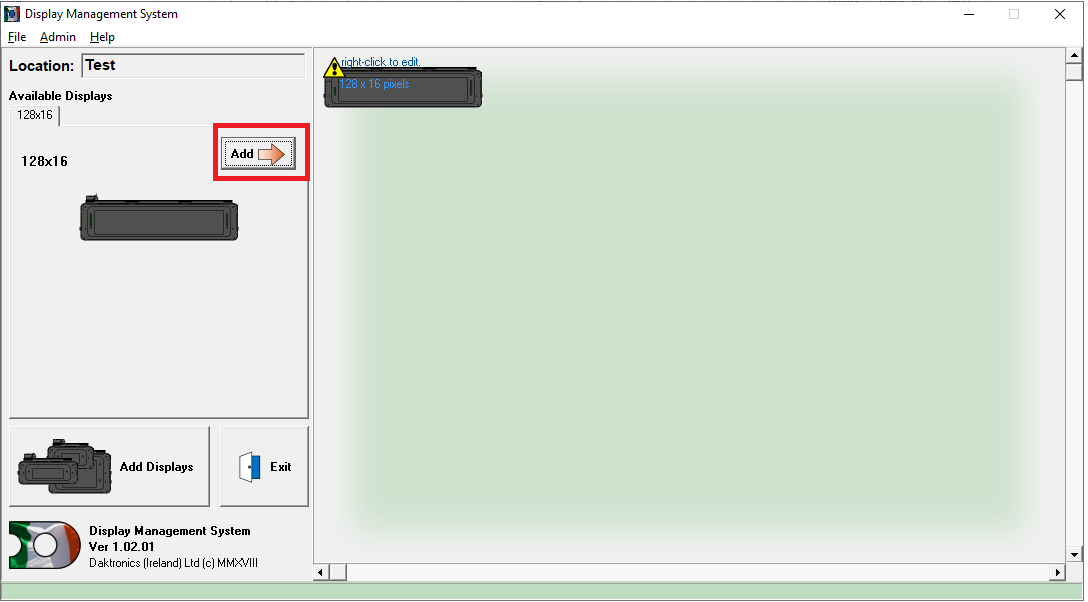

  13. Capture3.PNG
  14. Right click on the newly created display and select Edit.

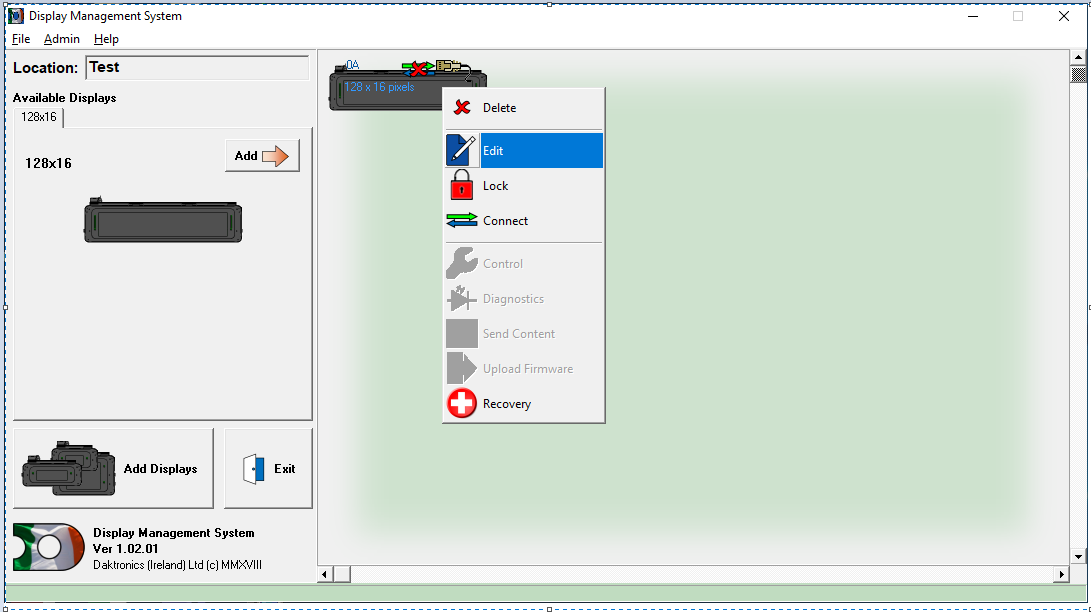

  15. Capture4.PNG

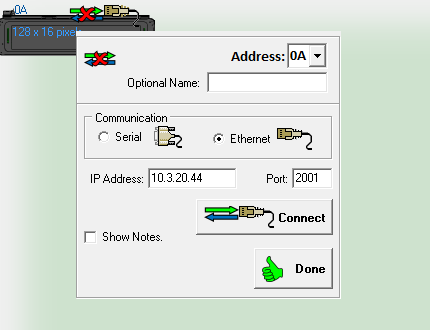

  16. Enter controller address (default 0A)
  17. Enter the IP of the display being updated


  1. Select Done.
  2. Right click on the display again and hit connect Note: If you have successfully connected, icons below show notes will appear.
  3. Capture6.PNG
  4. Select the firmware tab.  Capture7.PNG
  5. Make sure to uncheck all the boxes except for Loader under application Modules.

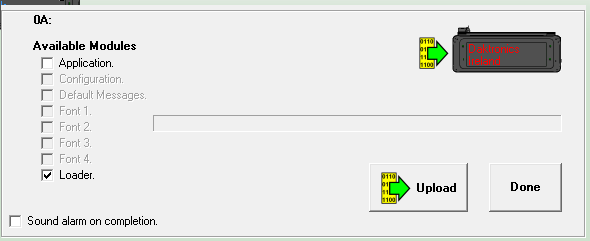

  6. Capture8.PNG
  7. Select upload to upload the secondary loader.

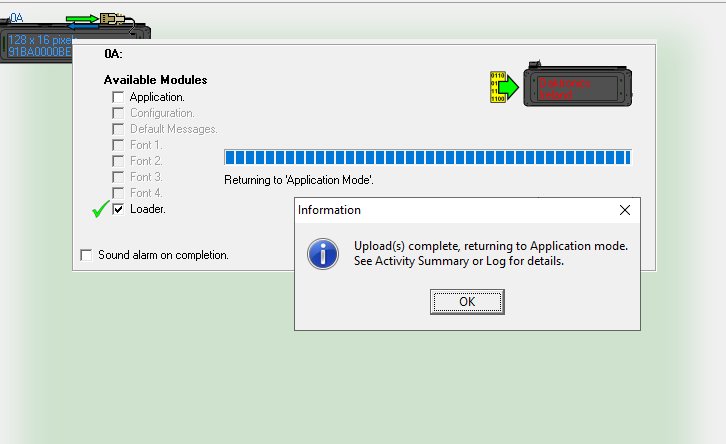

  8. When completed you will get a green check mark and get a box that says uploads complete.  Note you will have to click on DMS icon on the bottom of the computer screen in the task bar to get the box that says complete.
  9.  Capture9.PNG
  10. Select ok and then done.
  11. Right click and go to upload firmware.
  12. Uncheck the loader and check the rest of the boxes that need to be uploaded.

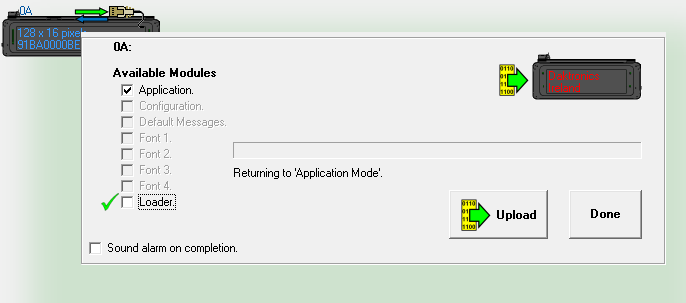

  13.  Capture10.PNG
  14. Once the process is complete you will get green check marks and box that says complete like in step 25.
  15. Verify sign is operational.
