How to update firmware on the ILCS2 Image controller

Topic

  • How to update firmware on the ILSC2 controller.

Environment

  • Product Family: Transportation
  • Product: AF-671X Data Displays
  • Components: ILCS2 Image controller
  • Control System: DVS software, RGB test software, VNC software

Steps



  1. Log into the SBC using VNC Viewer or Tight VNC.
  2. Enter password.
  3. Close all applications that are running (DVS server).
  4. Navigate to C:\DakConfig\Test\RGB_Test-Script. Note: Depending on version of controller this program could be located in Temp folder instead of DakConfig.
  5. Select RGB_Test-Script.
  6. Select Display_Test tab.
  7. Select Test_Display.

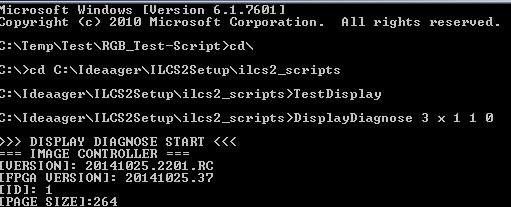

  8. Select Test_Display verify it responds back with the version info and FPGA version.  See below
    ILCS2 version image.PNG
  9. Once verified close command prompt window.
  10. Click Setup tab.
  11. Select Update_ILCS2. Note: This will take awhile. to run.
  12. When it is complete the last line will say C:\Ideaager\ISCS2Setup\ilcs2_scripts> (Will take around 10 minutes.)

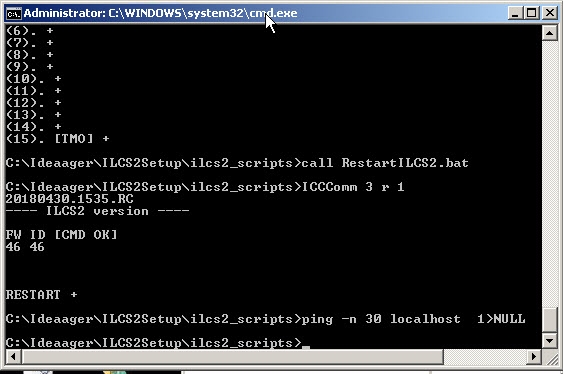

    firmware complete.jpg
  13. Close command prompt window.
  14. Start DVS server.

    Key Terms:

    • SBC= Single Board Computer
    • DVS= Data Vision Software
    • Image controller - ILCS2 controller, both are the same thing

    KB ID: 000003803
