Blank Display Section: Content not playing to a section, plays test patterns from Nova Star sending box, PIP enabled

Potential Symptoms

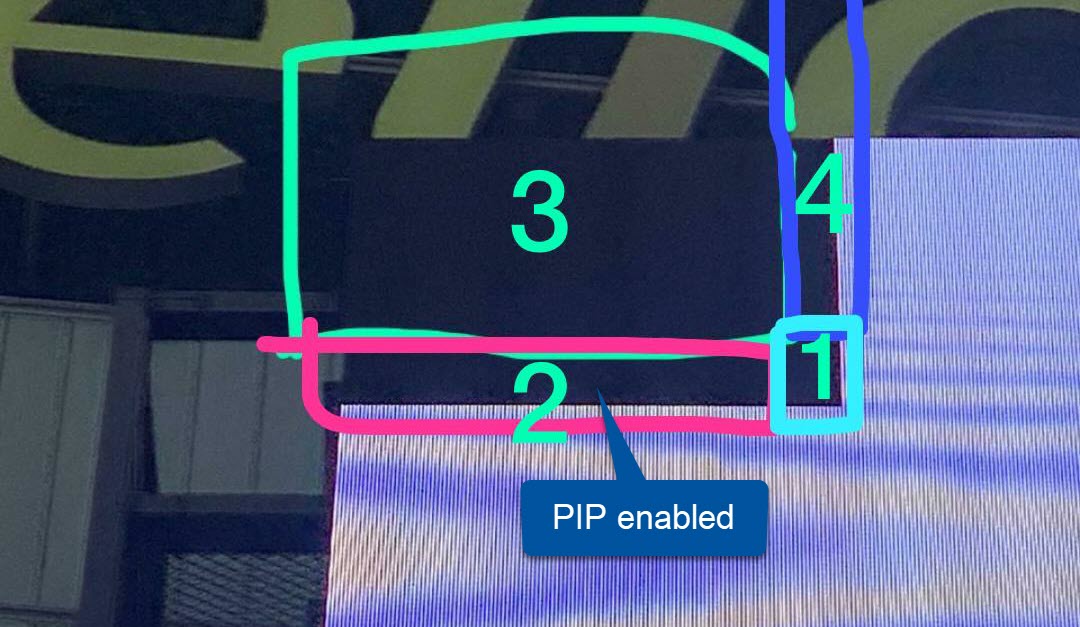

Issue parts[4].jpeg

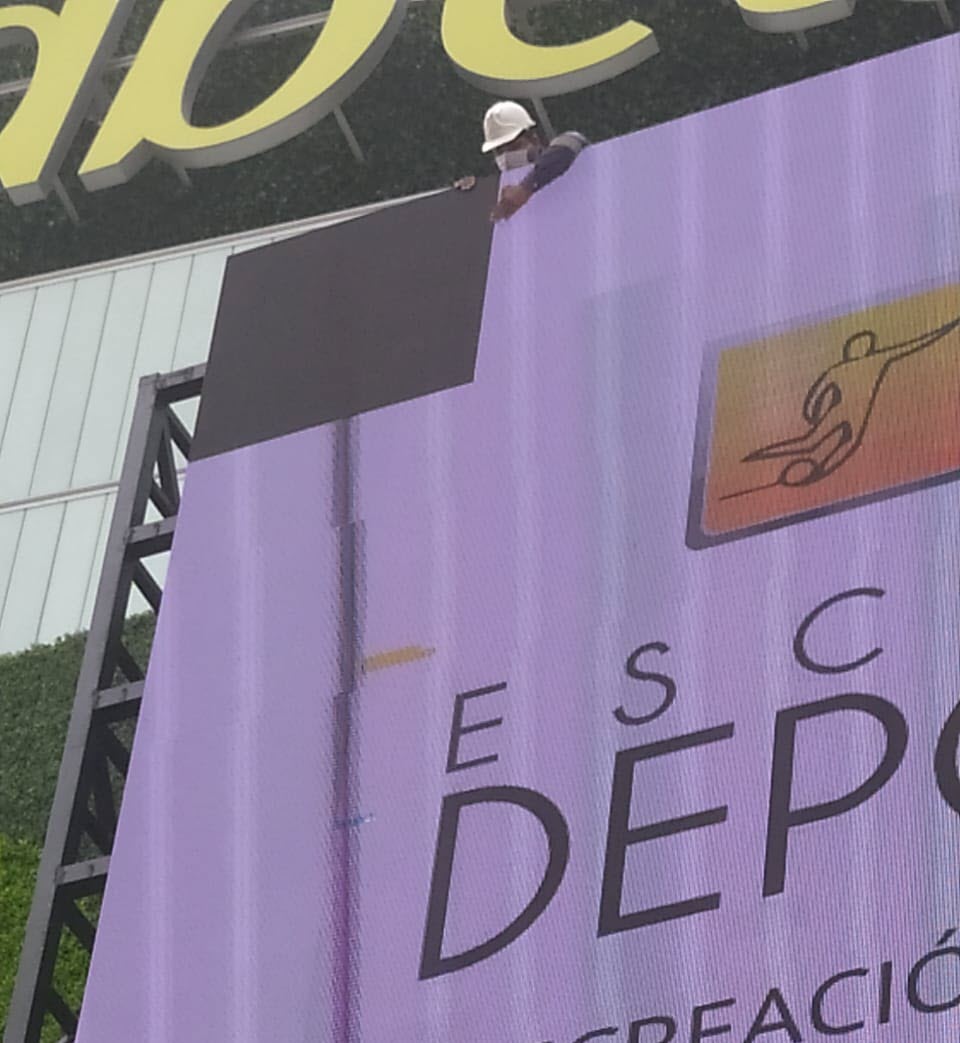

Section blanked while playing content during an installation.  However, test patterns played to the section.
 Content Issue[4].jpeg

Environment

  • Product: NovaStar Sending Box,  NovaLCT
  • Component:
  • Control System: Market Standard

Cause

  • Firmware updates from the sending box selected the PIP option by default

Resolution

  • Verify the PIP options are set as desired after firmware updates.  The PIP settings can be enabled or disabled via the front panel (VX4S and Vx6S machines).


    KB ID: DD4696732
