Daktronics

Camino: How to recover a lost Camino panel.

Topic

  • Recover a Camino panel that is missing.

Environment

  • Products: Camino
  • Components:
  • Control Systems: AJT Systems a Division of Daktronics

Cause

  • Changing to a different monitor resolution causes a UI panel to disappear.

Steps

Registry disclaimer

Important: This section, method, or task contains steps that tell you how to modify the registry. However, serious problems might occur if you modify the registry incorrectly. Therefore, make sure that you follow these steps carefully. For added protection, back up the registry before you modify it. Then, you can restore the registry if a problem occurs.

  1. First try to recover the panel by selecting it under View or Restore Default View.
  2. Close Camino.
  3. Type regedit at the start menu to open the Registry Editor app.
  4. Go to HKEY_CURRENT_USER > Software > AJTSystems.

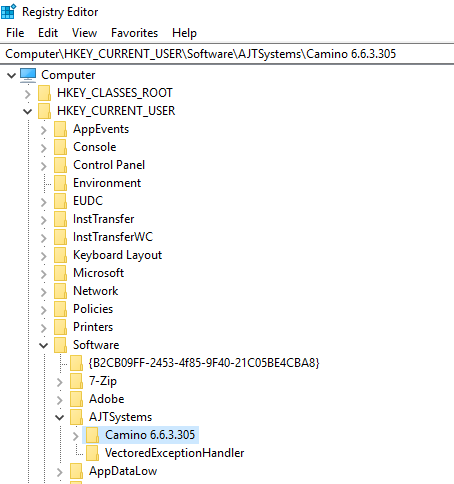

    Registry Editor.png
  5.  Delete the Camino version being used. A confirmation message opens.

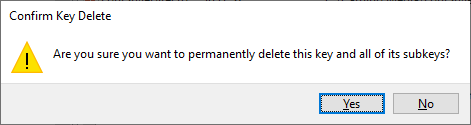

    Confirm Key Delete.png
  6. Click Yes.
  7. Close the Registry Editor app and restart Camino. The layout is now the default layout.
  8. Select the missing panel in View.





    KB ID: DD4670139
