Display Studio: How to Use .dpf Test Patterns on a DMP-8000 to Trigger Test Patterns

Topic

  • How to play a .dpf file?
  • How do you trigger DMP-8000 test patterns from Display Studio?

Environment

  • Product Family: Software, Control System
  • Product:
  • Components: DMP-8000, Display Studio
  • Control System: Show Control System (SCS)

Steps

  1. In Display Studio, create a New Button
    New Button.png

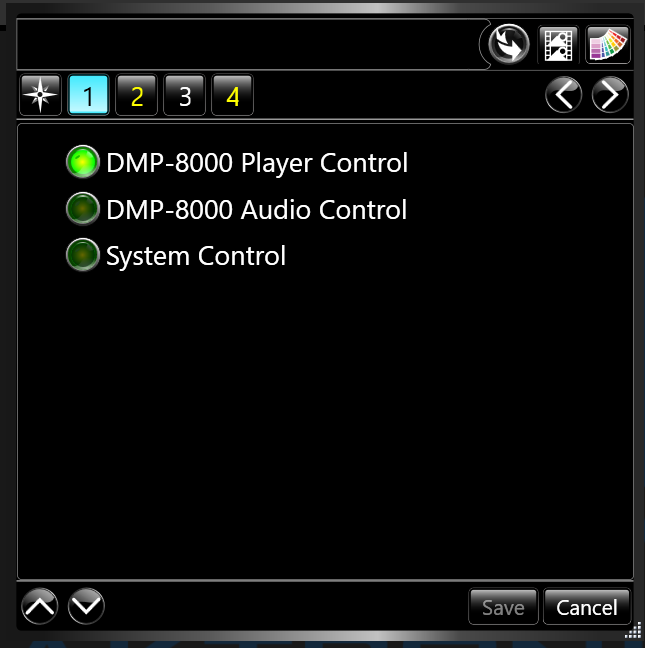

  2. Select DMP-8000 Player Control in Step 1
    Step 1.png

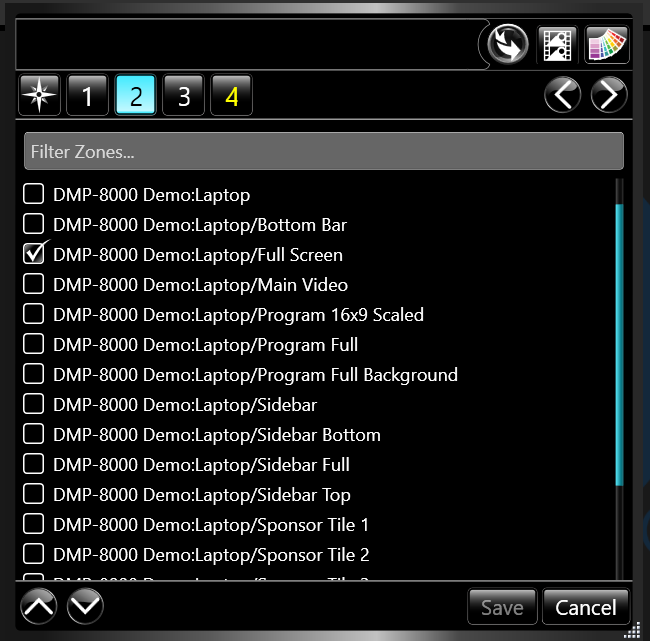

  3. Select the sign or zone you wish to play the test pattern to in Step 2
    Step 2.png

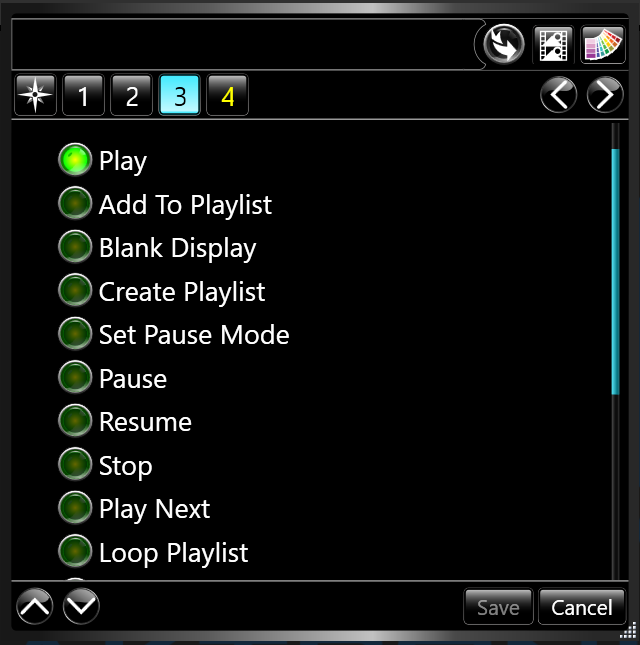

  4. Select Play in Step 3
    Step 3.png

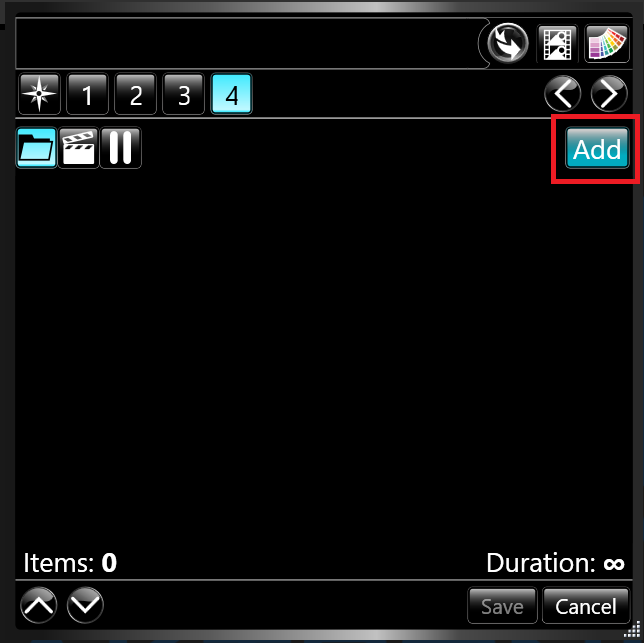

  5. Select Add in Step 4
    Step 4a.png

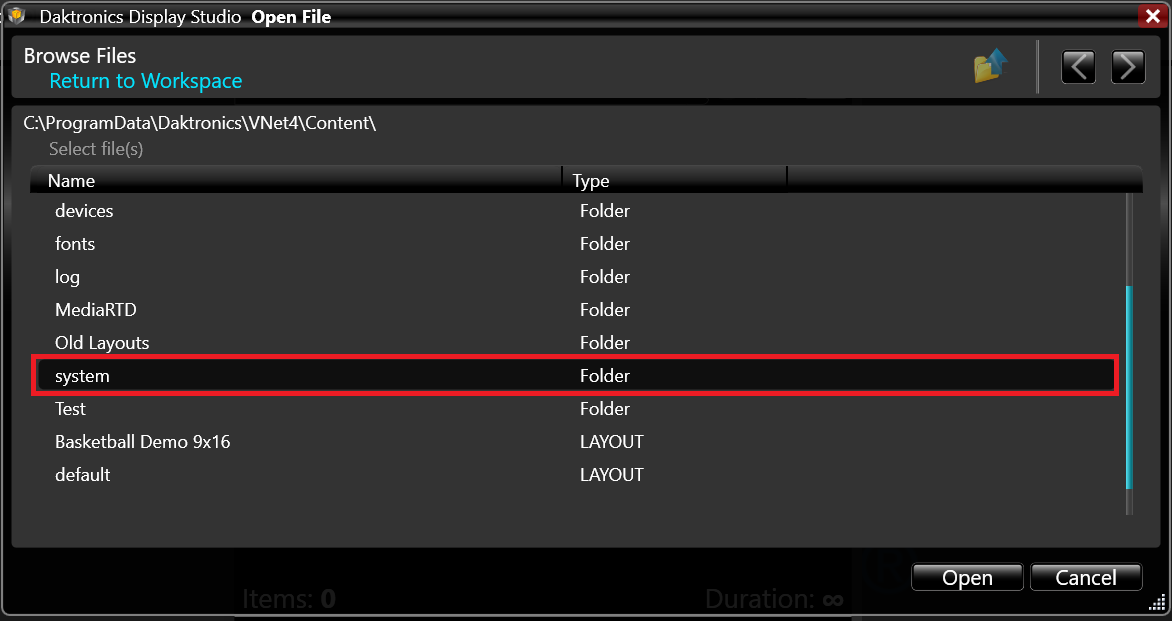

    1. Navigate to the System folder which lives directly in the Content folder
      Step 4b.png

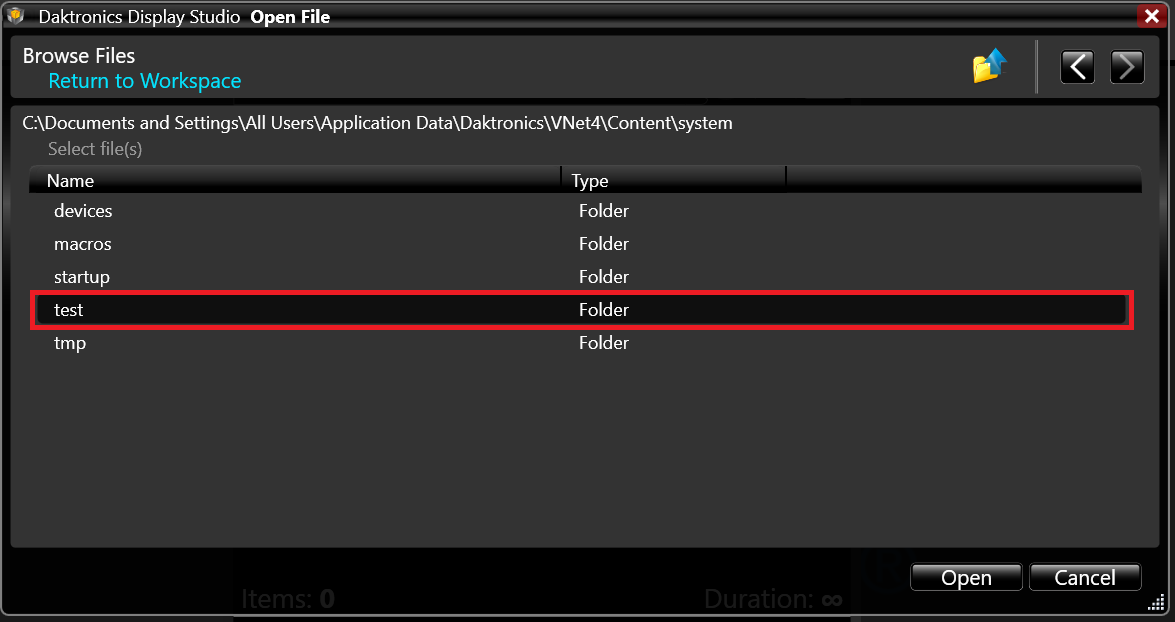

    2. Select the Test folder
      Step 4c.png

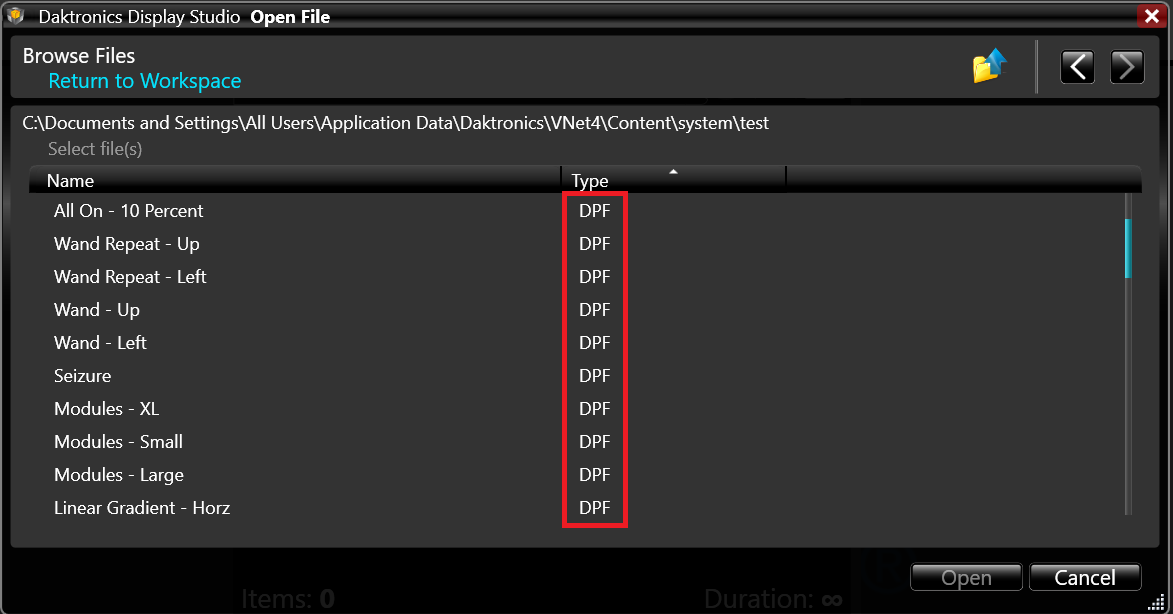

    3. Choose any file that has the extension DPF
      Step 4d.png

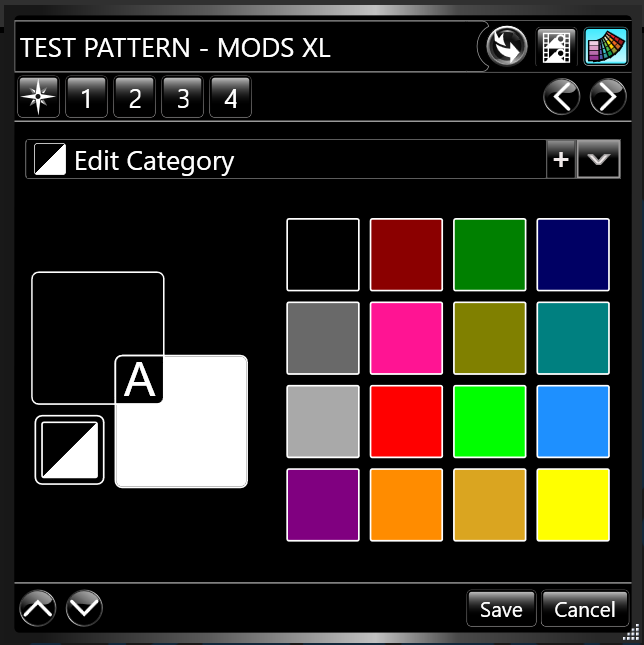

  6. Give the button a name and a color (use the color swatch icon in the top right) if desired, then select save
    sTEP 5.png

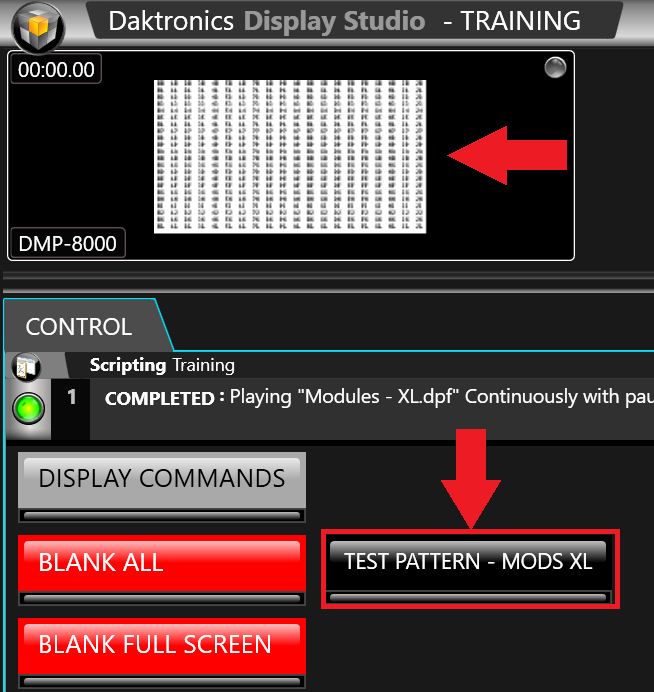

  7. Single click the button and your selected test pattern will play out to the DMP-8000
    Step 6.png
  8. When finished testing, Blank the display

KB ID: DD4654497
