How to configure a new or replacement DMP player for a Venus Control Suite controlled DB-6500, DB-6600, or BLD-0200

Topic

  • How do I configure a new or replacement DMP player for a Venus Control Suite controlled DB-6500, DB-6600, or BLD-0200?

Environment

  • Product Family: Billboard
  • Product: DB-6500, DB-6600, BLD-0200
  • Components: DMP-8000 p/n 0A-1987-0011, 0A-2285-0011
  • Control System:

Steps

NOTE:  This guide is for use by Technicians or Installers in the field.

NOTE:  This guide is applicable to displays using Venus Control Suite.

NOTE:  Recommended tools to complete this work include: laptop, spare Ethernet cable, Ethernet coupler (RJ45 female-to-female).

  1. Setup laptop for direct (static IP) connection to devices.
  2. Directly plug the Ethernet cable from the DMP to your laptop.
    • This should be the cable that is currently plugged into port 3 of the Meraki router.
      • NOTE:  It is recommended to connect an Ethernet coupler to this cable and use a spare Ethernet cable to extend its reach so you can complete this work in a comfortable and safe position.  Alternatively, if the DMP is easily accessible, you may disconnect the existing cable and plug your spare cable directly into it from your laptop.
  3. Login to the DMP.
    1. Open a web browser window.
    2. Enter the DMP IP address into the address bar (default "http://192.168.0.111:81").
  4. Identification:



    1. Click the Configuration menu button.
    2. Ensure the Identification tab is selected.
    3. Update the Description box with the site specific name and number followed by "DMP".
      • This information is logged in the case as the site "Description" for you reference.
    4. Click Save.
    5. Enter the player's username and password if prompted.
  5. Time Zone:



    1. Select the Time tab.
    2. Select the site specific time zone from the dropdown menu.
    3. Click Save.

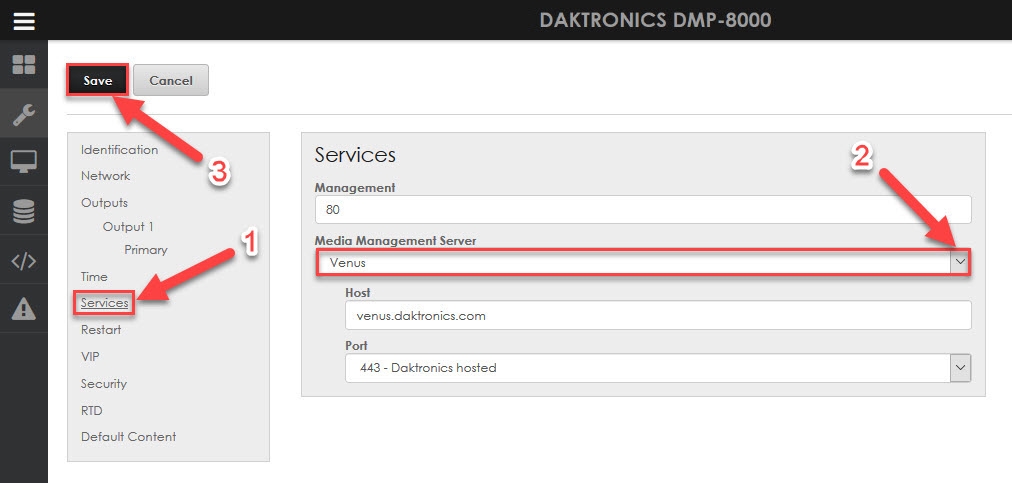

  6. Services:
    1. Select the Services tab.
    2. Select the dropdown arrow next to Media Management Server and select Venus.
    3. Click Save.
  7. Plug the network cable for the DMP back into its original position.
  8. Contact Daktronics Technical Support at 1-800-DAKTRONICS to have the new device registered.

KB ID: DD4627909
