Scoreboard time will not count in the right direction; All Sport setting incorrect
Potential Symptoms
- Scoreboard will not count down with an All Sport 3000.
- Scoreboard will not count up with an All Sport 3000.
- Scoreboard will not count down with an All Sport 5000.
- Scoreboard will not count up with an All Sport 5000.
- Scoreboard counting up instead of down.
- Scoreboard counting down instead of up.
- Scoreboard counting in the wrong direction.
- Scoreboard time increasing instead of decreasing.
- Scoreboard timer going the wrong way.
Environment
- Product Family: Scoreboard Systems
- Product: Indoor and Outdoor Scoreboards
- Component: All Sport settings
- Control System: All Sport 3000, All Sport 5000
Cause
- Up/Down has not been selected.
- Count up is selected on All Sport.
Resolution
- After the main clock has been stopped, the direction of the clock can be set.

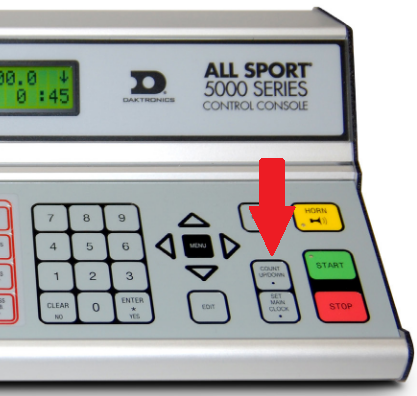

- Press the <COUNT UP/DOWN> button on the All Sport console
- Press <1> or <2> to select Up or Down (default).
- Note: The current direction of the main clock is shown on the top line of the LCD.
- Note: The <COUNT UP/DOWN> function is disabled while the clock is running.
KB ID: DD4624370
