SportApp: How do I configure ACL Cornhole plug-in

Topic

  • How do I configure ACL Cornhole plug-in for SportApps?

Environment

  • Product: SportApp
  • Component: Plug-in Manager with ACL Cornhole
  • Control System: Live Book GFX®

Steps

Setup the ACL Cornhole Plug-in within the Basketball SportApp.

  1. From the main UI menu button, click on the Plug-Ins icon to launch the plug-in manager.
    Stat crew basketball gear icon.png
  2. Click on the Stat Crew options to bring up the  settings.
  3. Input the necessary info to get stats to the Livebook and turn the plug-in on using the switch at the top of the dialog.
    AJT ACL cornhole league interface in SportApps Plug in.png
    • Name: ACL
    • Polling Interval: 2500
    • Server : acl.api.server.azurewebsites.net
    • Tournament ID: TBD
    • Match ID: TBD
    • Game ID: TBD
    • Force: Last, First: TBD
    • Instance name: ACL

  4. Press ok or apply to accept the changes.  When the settings window closes, the plug-in manager indicates that the plug-in was enabled.
  5. Press save to close the dialog box.
    Stat crew plug in settings2.png
  6. Press ok or apply to accept the changes.  When the settings window closes, the plug-in manager indicates that the plug-in was enabled.
  7. Press save to close the dialog box.
  8. Press ok or apply to accept the changes.  When the settings window closes, the plug-in manager indicates that the plug-in was enabled.
  9. Press save to close the dialog box.

Stats Feed Verification
Once the stat plug-in is enabled and it connects to the server the stats feed will show Data Ok in green. If there is a connection issue it shows error in red.
Stat crew plug in settings3.png

Stats Tab Verification

Click on STATS EDITOR (bottom row) to view the stats builder.


Player and Team Stats Verification

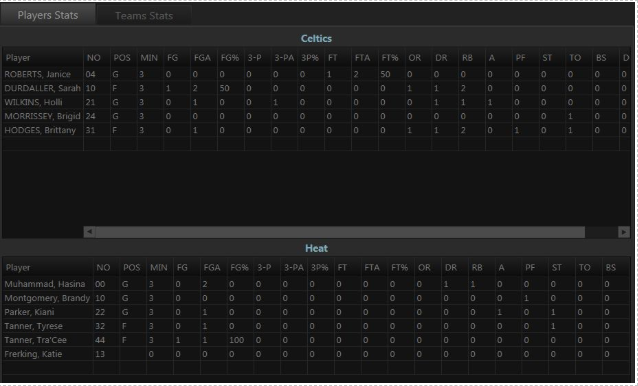

  1. To the right of the stats builder is the full box score that contains the player and team stats.

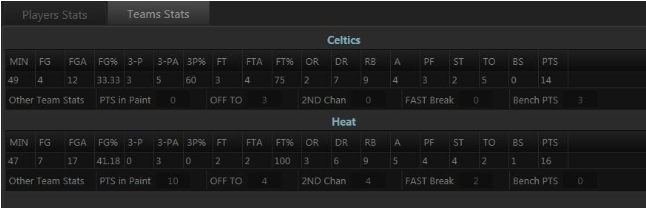

  2. The team stats tab shows similar info to that of the player stat.


KB ID: DD4622517
