SportApp: How do I configure Stat Crew lacrosse plug-in

Topic

  • How do I configure Stat Crew lacrosse plug-in for SportApps?

Environment

  • Product: SportApp
  • Component: Stat Crew Lacrosse
  • Control System: Live Book GFX®


Steps

Setup the Lacrosse Stat Crew Plug-in within the Hockey SportApp.

  1. From the main UI menu button, click on the Plug-Ins icon to launch the plug-in manager.

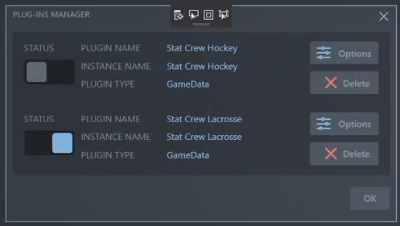

    AJT Stat Crew Lacrosse interface in SportApp Plug in.png
  2. Click on the Stat Crew options to bring up the settings.
  3. Input the necessary info to get stats to the Livebook and turn the plug-in on using the switch at the top of the dialog.
    Stat crew plug in settings.png
    • Instance Name: Stat Crew Lacrosse
    • Server Type: FTP
    • Server Name: Stat Server
    • Path: leave blank
    • User Name: admin
    • Password: password
    • Plugin Mode: Active
    • Replay Interval: 2500

  4. Press ok or apply to accept the changes.  When the settings window closes, the plug-in manager indicates that the plug-in was enabled. Like the Stat Crew settings window, it will switch on.
  5. Press save to close the dialog box.

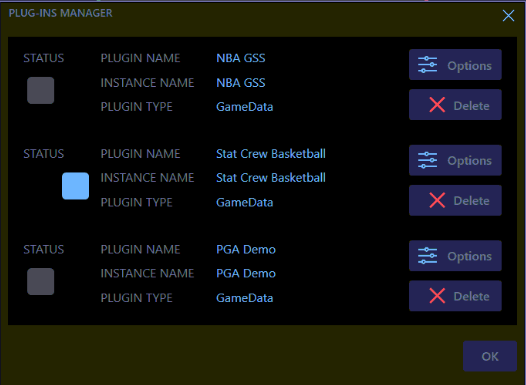

    Stat crew plug in settings2.png
  6. Press ok or apply to accept the changes.  When the settings window closes, the plug-in manager indicates that the plug-in was enabled. Like the Stat Crew settings window, it will switch on.
  7. Press save to close the dialog box.
  8. Press ok or apply to accept the changes.  When the settings window closes, the plug-in manager indicates that the plug-in was enabled. Like the Stat Crew settings window, it will switch on.
  9. Press save to close the dialog box.

Stats Feed Verification
Once the stat plug-in is enabled and it connects to the server the stats feed will show Data Ok in green. If there is a connection issue it shows error in red.
Stat crew plug in settings3.png

Stats Tab Verification

Click on STATS EDITOR (bottom row) to view the stats builder.


Player and Team Stats Verification

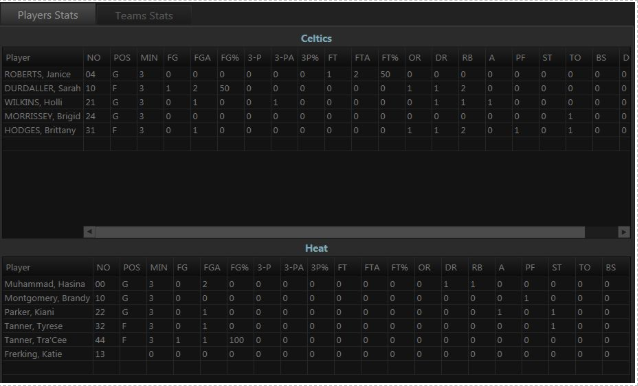

  1. To the right of the stats builder is the full box score that contains the player and team stats. It contains the player names, jersey #, positions, etc. scorebug8.png

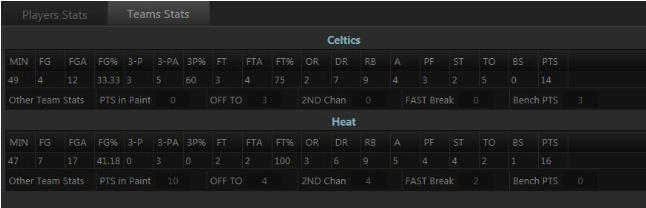

  2. The team stats tab shows similar info to that of the player stat.

KB ID: DD4622490
