SportApp: How do I configure baseball plug-in Manager [stats, pitch speed, pitch clock]

Topic

  • How do I configure a plug-in manager for Baseball SportApps, including Stats, Radar Gun / Pitch Speed and Pitch timing?


Environment

  • Product: Baseball SportApps
  • Component: Plug-in Manager
  • Control System: LIVEBOOK

Steps

Setup the Plug-in manager for the Baseball SportApp.

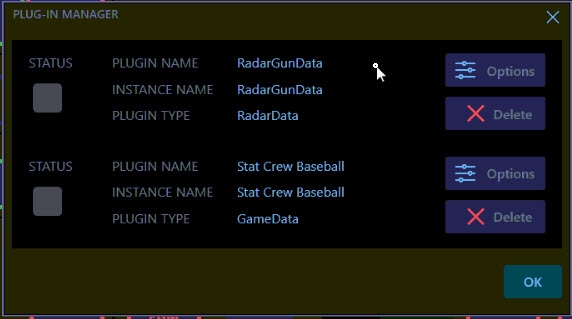

  1. From the main UI menu button, click on the Plug-Ins icon to launch the plug-in manager.
    Baseball StatCrew plugin manager2.jpg

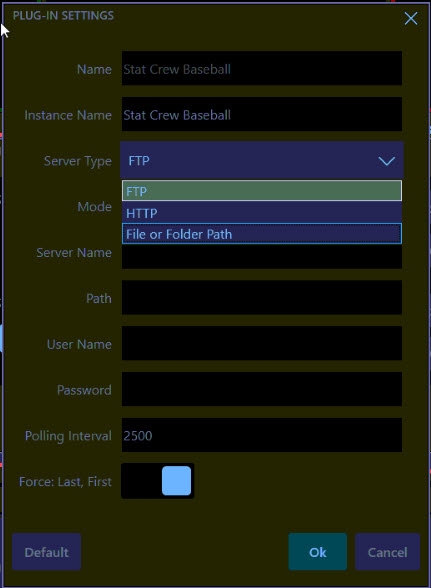

  2. Click on the Stat Crew baseball options to bring up the Stat Crew baseball settings.
  3. Input the necessary info to get stats to the Livebook and turn the plug-in on using the switch at the top of the dialog.
    Baseball StatCrew Plug In Settings.jpg
    • Instance Name: Stat Crew Baseball
    • Server Type: FTP
    • Server Name: Stat Server (without FTP://)
    • Path: leave blank
    • User Name: admin
    • Password: password
    • Plugin Mode: Active
    • Replay Interval: 2500
  4. Press ok or apply to accept the changes.  When the settings window closes, the plug-in manager indicates that the plug-in was enabled. Like the Stat Crew settings window, it will switch on.
  5. Press save to close the dialog box.
    Baseball StatCrew plugin manager.jpg

  6. Press ok or apply to accept the changes.  When the settings window closes, the plug-in manager indicates that the plug-in was enabled. Like the Stat Crew settings window, it will switch on.
  7. Press save to close the dialog box.
  8. Press ok or apply to accept the changes.  When the settings window closes, the plug-in manager indicates that the plug-in was enabled. Like the Stat Crew settings window, it will switch on.

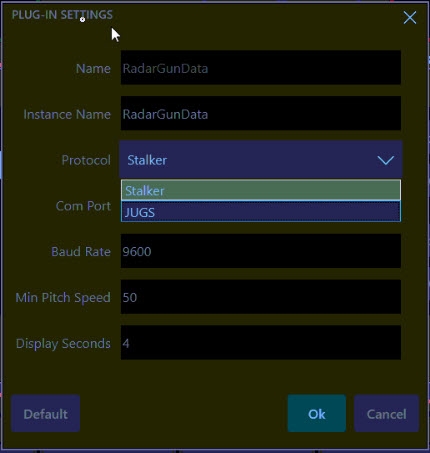

  9. Repeat/verify plug-in settings for the radar gun data.
    Baseball Radar Gun PlugIn Settings.jpg
  10. Press ok or apply to accept the changes.  When the settings window closes, the plug-in manager indicates that the plug-in was enabled. Like the Stat Crew settings window, it will switch on.
  11. In version 4.3.0.12 and higher there will be a Baseball Pitch Clock option
    Pitch Clock.PNG

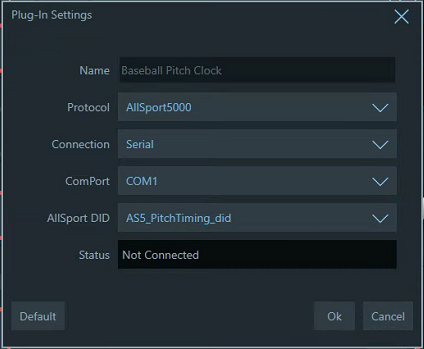

  12. Select options to configure the Pitch Clock controller
    Pitch Clock Controller.PNG
  13. Once the options are correct, press ok to save the settings
  14. Press save to close the dialog box.





Stats Feed Verification
Once the stat plug-in is enabled and it connects to the server the stats feed will show Data Ok in green. If there is a connection issue it shows error in red.
Stat crew plug in settings3.png

Stats Tab Verification

Click on STATS EDITOR (bottom row) to view the stats builder.


Player and Team Stats Verification
  1. To the right of the stats builder is the full box score that contains the player and team stats. It contains the player names, jersey #, positions, etc.
    Baseball Team Stats.jpg
  2. The team stats tab shows similar info to that of the player stat.

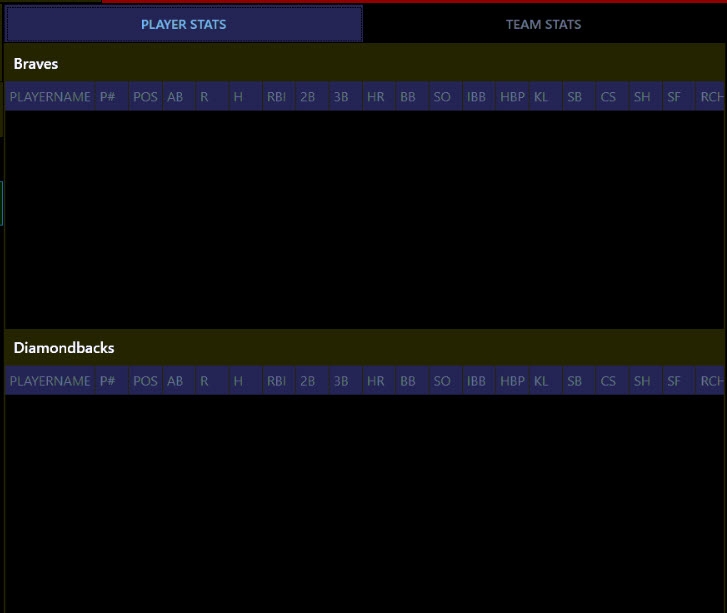

    Baseball Player Stats.jpg


Baseball Pitch Clock

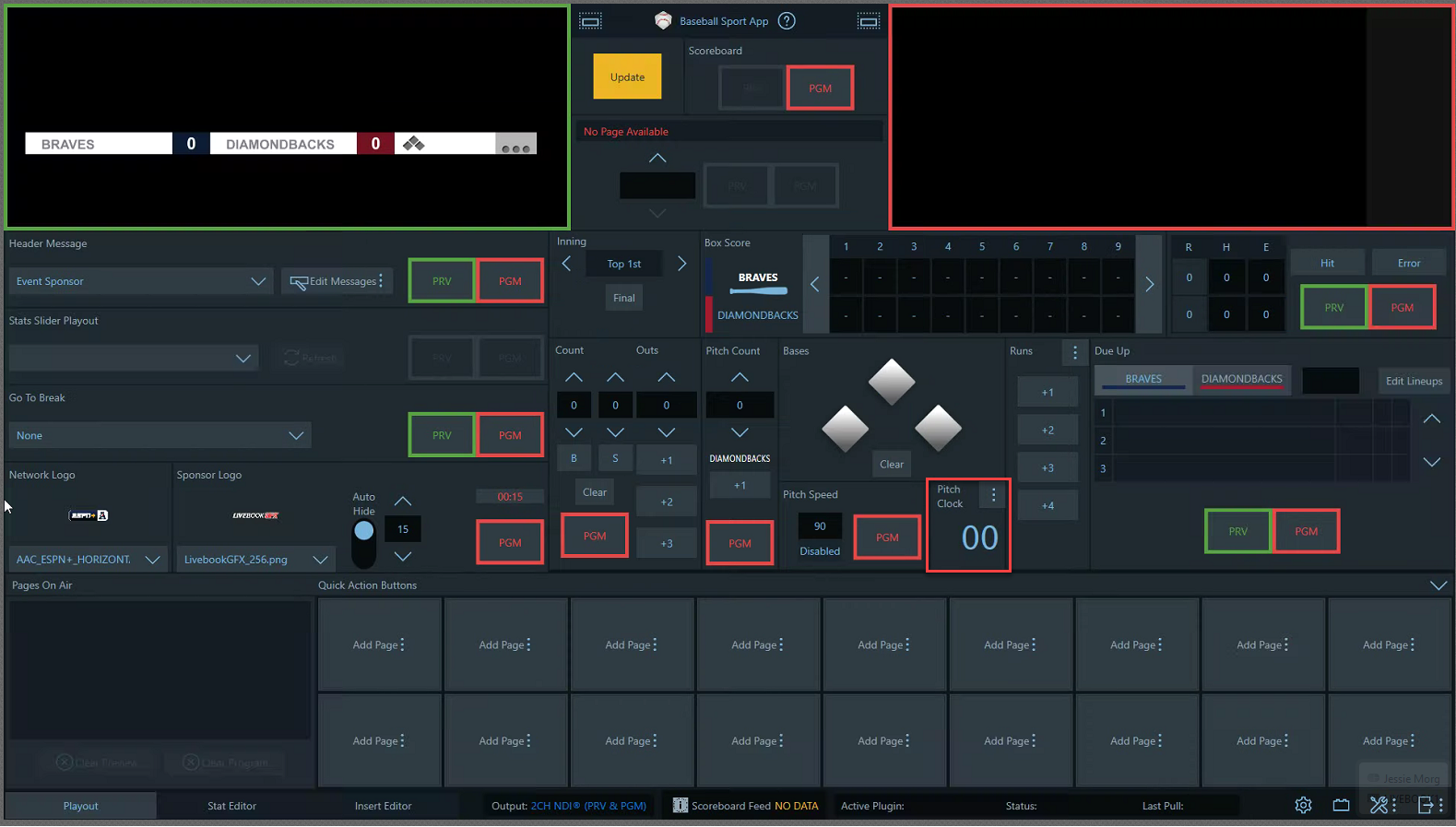

  1. The Baseball Pitch Clock section is towards the center of Playout Tab in the Sport App
  2. Select the ellipsis in the top right corner of the Pitch Clock section to configure how the pitch clock will appear in the scorebug
    Pitch Clock appearance.PNG
  3. Watch this YouTube video for a demonstration if needed

KB ID: DD4622468
