VL-6701: How to change the IP address or Port?

Topic

  • How to change the IP address or Port on a VL-6701?

Environment

  • Product Family: Transportation
  • Product: VL-6701
  • Components: DMP-5000
  • Control System:

Steps

  1. Connect to the DMP-5000 controller via Ethernet cable.
  2. Set your laptops local Ethernet connection within range of the displays IP address.
  3. Once local Ethernet port is changed, run display find to find the displays IP address if not known already.
    1. Download Display Find
  4. Once IP address for the controller is found open a web browser and enter in the displays IP address.

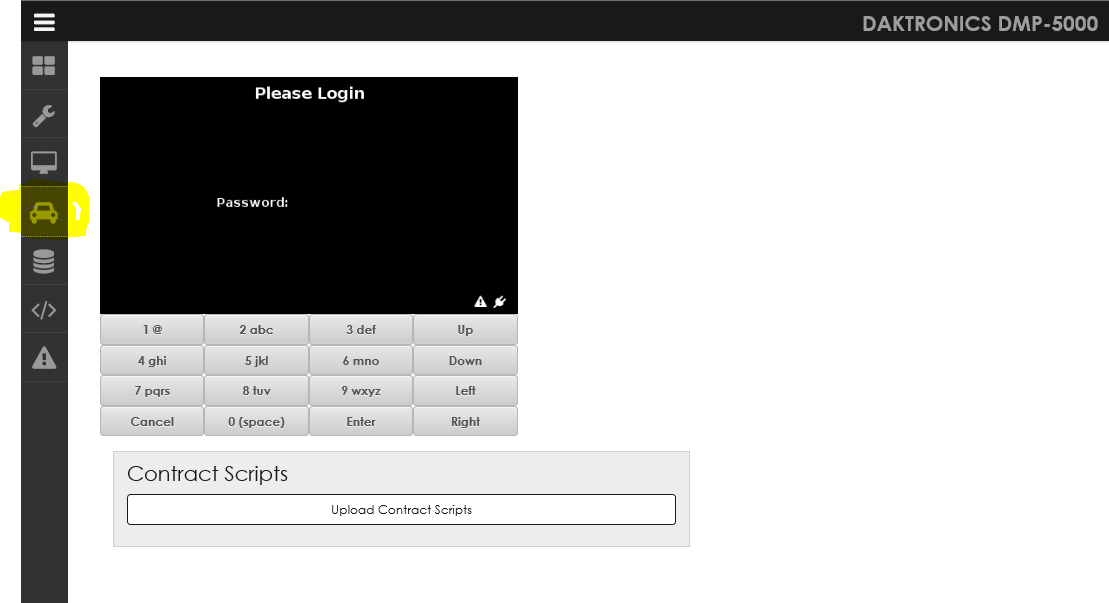

  5. It will pull up a web interface page (see example below)
  6. Capture.PNG
  7. Select the car icon on the left
  8. Select Enter> Sign 1> Configuration >Communication> Ethernet >IP > Static.
  9. For the port change select Port> Enter in port.

KB ID: DD4606606
