Daktronics

VFC not taking new IP

Potential Symptoms

  • VFC not taking new IP

Environment

  • Product Family: Transportation
  • Product:  VFC (Vanguard Field Controller)
  • Component:  VFC
  • Control System:  VFC

Cause

  • Operating failing to continue specifying DNS information after entering IP, subnet, and gateway information.  The DNS menu looks very similar to the IP information so it appears you're starting over.

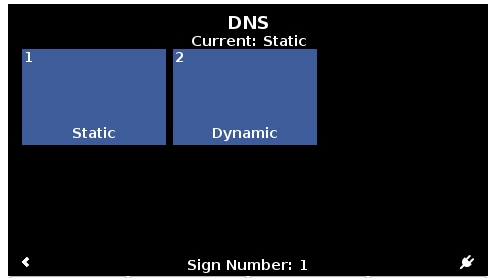

  • Capture 1.PNG

Resolution

  • After entering IP, subnet mask, and gateway, continue entering Static DNS information.  If no DNS is used, just enter 0.0.0.0.

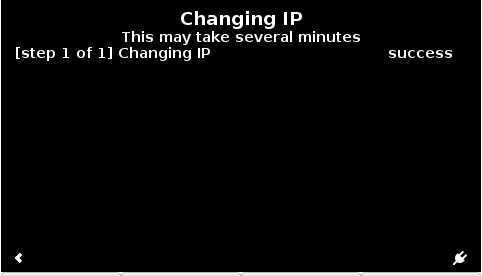

  • After entering all DNS information (preferred, alternate, domain) then this screen will display on VFC LCD:

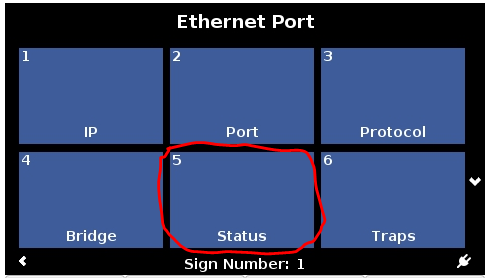

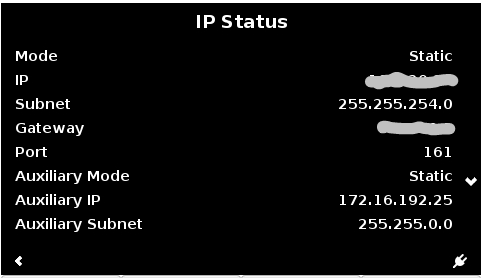

  • Go back to Ethernet/Status and verify IP configuration is updated.
    Ethernet Port.png IP Status.png


KB ID: DD4295880
