How do I set the output voltage of older Galaxy power supplies?

Topic

  • How do I set the output voltage of older Galaxy power supplies with the set screw.
    • If the power supply needs to be replaced, it may need to be calibrated for the correct output voltage.

Environment


  • Product: AF-30XX, AF-31XX, AF-3200, or AF-3400
  • Components: Power supply voltage adjust, (Power supplies: A-1577, A-1591, A-1620, A-1633)
  • Control System:

Steps

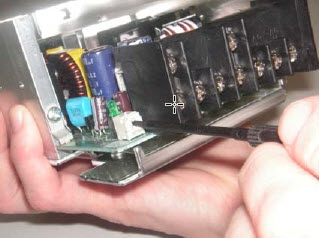

  1. Locate the set screw on the bottom left side of the power supply.
    • 2019-09-04_9-55-42.jpg
  2. Verify what voltage the modules require.
    • Can be done by measuring voltage to working modules in the display.

  3. Using a multi-meter, measure the voltage between the V+ and V- terminals and adjust the power screw until it is outputting the correct voltage for the type of display.

KB ID: DD4281326
