How do I display a color bar test pattern in SportApps?

Topic

  • How do I display a color bar test pattern in SportApps?

Environment

  • Product Family: Software and Controllers
  • Product: Livebook SportApps
  • Component:
  • Control System: Livebook
Color bars are a tool to aid in the calibration of video monitors. At some point, as an operator, you may be asked to display color bars.

Steps

  1. Open SportApp and open the Settings dialog if it is not already open.

  2. In the Video area of this dialog, click the Settings button.

  3. The Video Settings dialog appears. Notice the current setting in the Graphic Output Mode area, so that you can restore this setting when you finish your test.

  4. In the Graphic Output Mode area, select Color Bars - Test Output

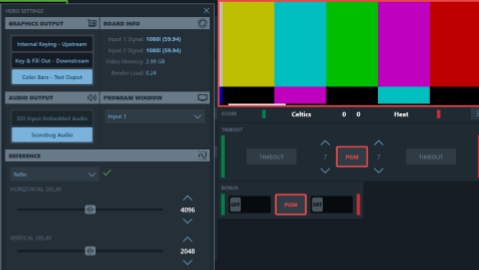

    SportApps test pattern.png

  5. When you are finished with the Color Bar test, restore the Graphic Output Mode to its previous condition.
