Only half of each of the segments in a digit are lighting, FB-2350 series scoreboard; Wrong driver output
Potential Symptoms

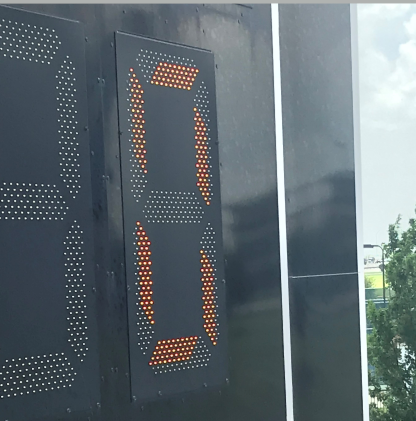

- Only half of each of the segments of a digit (either in the clock section or team score) are lit.
- Half of each segment are blank in a consistent pattern.
Environment
- Product Family: Sports Product
- Product: FB-2350 Series Multi-Section Scoreboard
- Component: Double stroke large character digits
- Control System:
Cause
- Signal wire to digit connects to the wrong output on the driver or is disconnected.
- Each of these digits is fed by both drivers in the scoreboard, half of each segment is fed by each driver.
- See Manual: FB-2350 Series Multi-Section LED Football Scoreboards Display Manual, (ED-14129).
Resolution
- Plug J1-A & J1-B on digit wiring harness into correct output on correct driver.
KB ID: DD4197081
