How to setup a Decimator for Incoming Video -OR- to use it to produce a test pattern input to a DMP-8000

Topic

  • How do I setup and configure a Decimator MD-CROSS V2 for SDI or HDMI Input to a Daktronics Digital Media Player?
  • How do I use the test pattern function on the Decimator MD-Cross V2?

Environment

  • Product Family: Control System, Software, Video
  • Product:
  • Components: DMP-8000, Decimator
  • Control System: Show Control System (SCS)

Steps

Install the Decimator Design Control Software and connect a USB mini cable between your laptop and the Decimator. (Note: This cable is usually shipped in the gathering packet box)

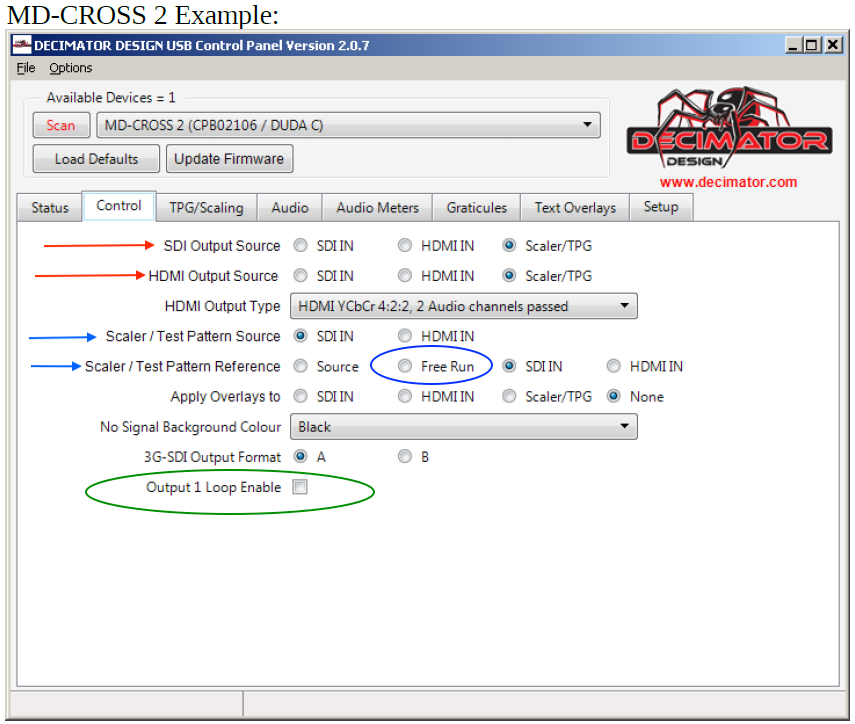

IN THE CONTROL TAB





  1. Set output source to Scaler/TPG for both the SDI and HDMI Outputs (Shown in image below - red arrow)
  2. Set Scaler Source to SDI or HDMI depending on which input you would like to use. (Shown in image below - blue arrow and oval)
  3. Set the Scaler Reference to FREE RUN. (Shown in image below - blue arrow)
  4. Ensure Output 1 Loop Enable is UNCHECKED (Shown in image below - circled in green)

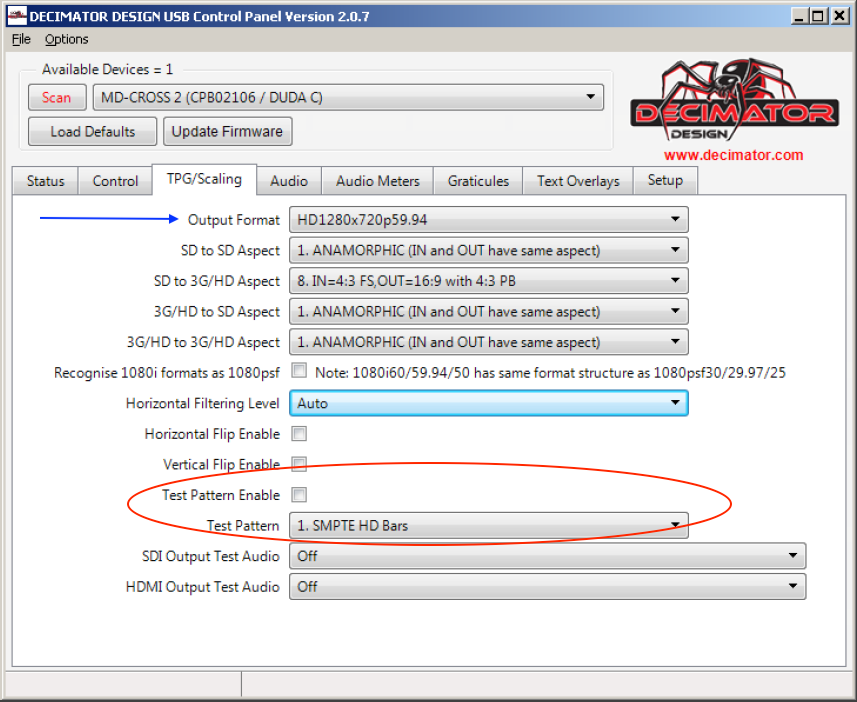

IN THE TPG/SCALING TAB

  1. Set Output Format to HD1280x720p59.94. (Shown in image below - blue arrow)
  2. You can also utilize this device as a test pattern generator. Check the Test Pattern Enable Box and then select Test Pattern from pull-down below. (Shown in image below - red oval)
    • Don't forget to remove the check box from the Test Pattern Enable Box once you are completed to allow for video input to pass through to the output.
10-25-2017 2-28-45 PM.png


This should complete the Decimator MD-Cross V2 Configuration. Please reboot the DMP-8000 player.






KB ID: DD4072063
