DAK Score App: How do I perform a scoreboard digit order test?

Topic

  • How do I perform a scoreboard digit order test from the DAK Score app?

Environment

  • Product: All Sport MX-1
  • Components:
  • Control System: Scoreboard with DAK Score control

This test will number the digits to help understand if they are wired correctly.


Steps

  1. Open the DAK Score app and connect to the All Sport MX-1. See All Sport MX-1 Quick Guide (DD3667023).
  2. Tap the main menu button (Menu Button.png), and select Settings.
  3. Tap Diagnostics.

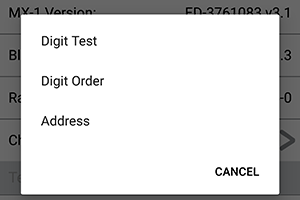

  4. Under Scoreboard Test, click the underlined setting and select Digit Order.

    DAK Score Scoreboard Tests.png
  5. Tap SEND to begin the digit order test.

    DAK Score Digit Order Test.png

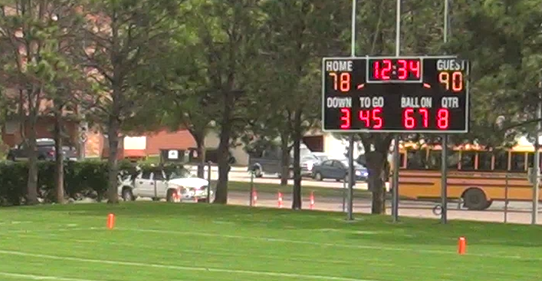

  6. Watch the scoreboard to confirm the digit order test performs successfully. Clock digits are assigned 1, 2, 3, 4 (5, 6), and other game data typically counts up in order from left to right.

    All Sport MX1 Scoreboard digit order test.png

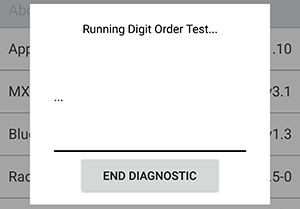

  7. When finished, tap END DIAGNOSTIC.

    DAK Score Digit Order Test Run.png

KB ID: DD4010397
