DAK Score App: How do I perform a scoreboard digit test from the DAK Score app?

Topic

  • How do I perform a scoreboard digit test from the DAK Score app?

Environment

  • Product: All Sport MX-1
  • Components:
  • Control System: Scoreboard with DAK Score control

The scoreboard digit test will light up every digit and indicator on the scoreboard to verify there are no malfunctioning digits.


Steps

  1. Open the DAK Score app and connect to the All Sport MX-1. See All Sport MX-1 Quick Guide (DD3667023).
  2. Tap the main menu button (Menu Button.png), and select Settings.
  3. Tap Diagnostics.

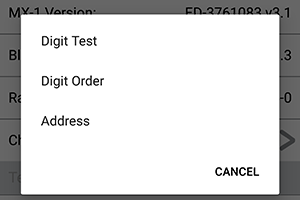

  4. Under Scoreboard Test, click the underlined setting and select Digit Test.

    DAK Score Scoreboard Tests.png
  5. Tap SEND to begin the digit test.

    DAK Score Digit Test.png

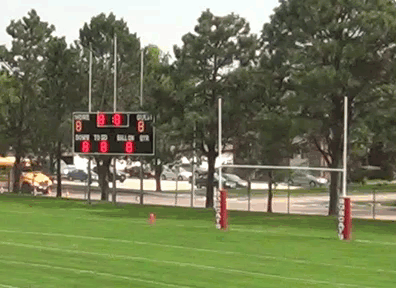

  6. Watch the scoreboard to confirm the digit test performs successfully. The scoreboard will display a pattern of alternating all on and all off digits.

    All Sport MX1 scoreboard digit test2.gif

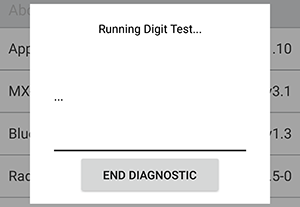

  7. When finished, tap END DIAGNOSTIC.

    DAK Score Digit Test Run.png

KB ID: DD4010279
