MS-2113 scoreboard blanking when the horn sounds. Shorted XLR plug.

Potential Symptoms

  • Scoreboard blanks when the horn sounds.

Environment

  • Product Family: Scoreboard
  • Product: MS-2113
  • Component: Horn
  • Control System: RC-100

Cause

  • The XLR plug is shorted.

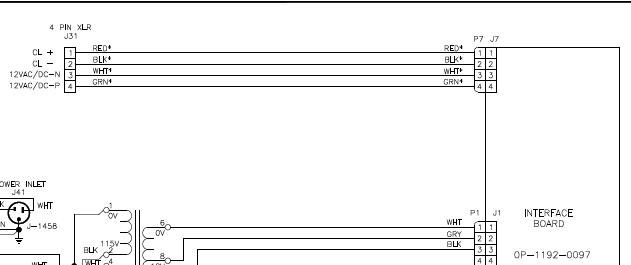

  • Schematic drawing 3211007.
  • Disconnect the P7 plug connected to J7 on the interface board and the scoreboard works fine when the horn sounds.
  • xlr.PNG

Resolution

  •   Try and fix the XLR plug locally or replace the entire 0a-1192-5509 harness.

For Temporary Operation

  • Disconnect P7 from the interface board.

KB ID: DD4001314
