Live Book GFX: How to get data from the Fairplay controller in to my Sport App?
Topic
- How do I get data from the Fairplay controller to the Live Book GFX?
Environment
- Product: Live Book, SportApp
- Components: Fairplay Controller
- Control System: AJT Systems a Division of Daktronics
Steps
Connect the USB to serial cable
- Connect the USB to serial cable to the laptop
- On the serial end of the USB to serial cable connect a RS232 cable
- Connect the other end of the RS232 cable to the RS232 port on the back of the Fairplay controller
Verify the USB to serial points to COM1

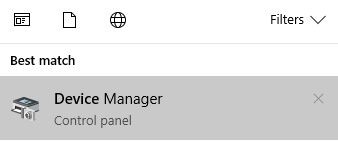

- Click on the Windows start menu and type device manager and click on the icon.
- Click on Ports drop down, the USB serial port should say COM1.

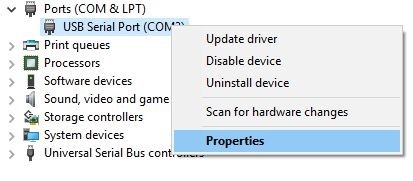

- If the com port doesn't show COM1, right click on it and click on properties to change the port number.

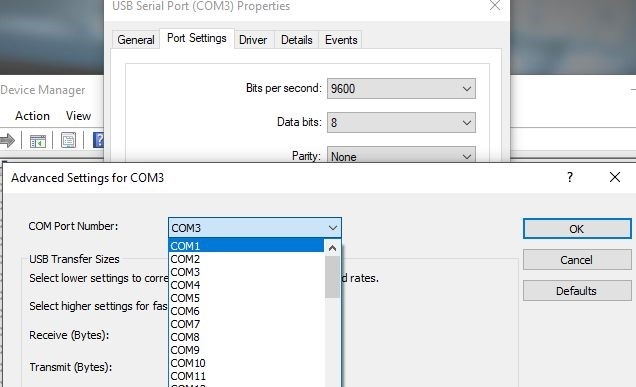

- Click on the Port Settings tab, Advanced and use the COM port number drop down to choose COM1 from the drop down.
- Press ok to add the change. The USB to serial port should now show COM1.
Get clock data to the SportApp
- Launch the SportApp
- Click on the settings menu icon on the lower right of the UI to view the SportApp settings
- Choose Fairplay from the drop down box under Scoreboard Feed
- Click on the scoreboard feed settings on the right to verify the connection is set to serial
- Click on the source from feed drop down to confirm the clock, score, period and other options are set to auto instead of manual
- Start the clock from the controller, the data should show up on the UI and on the score bug
- The scoreboard notification on the base of the UI will show data ok to confirm its getting data from the controller
KB ID: DD3990432
