SportApp: How to setup the DVE Clock?
Topic
- How to setup the DVE Clock for AJT SportApp?
Environment
- Product: SportApp
- Component:
- Control System: LIVEBOOK
Steps

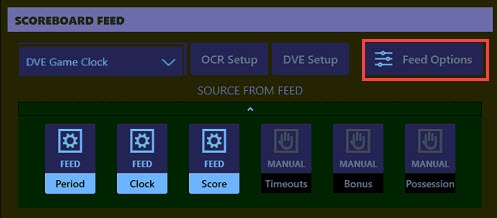

- From the settings dialog click on the scoreboard feed drop down and choose DVE Game Clock.

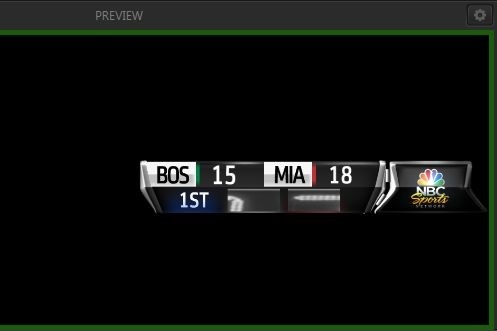

- With the camera connected, the image going to the score bug will appear larger than expected. If there is no camera connected to the Io box, the game clock and shot clock will appear black.

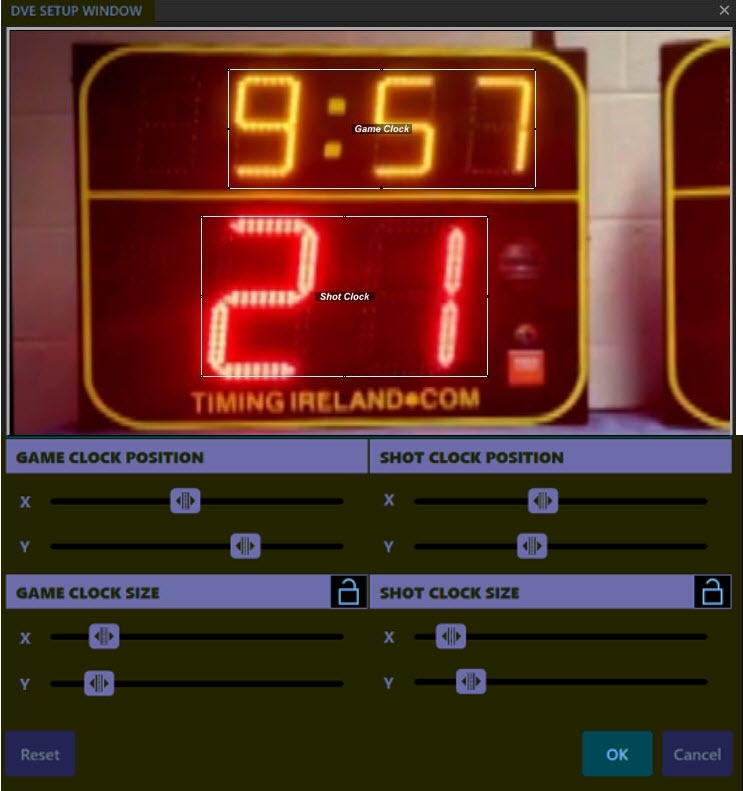

- Click on DVE Setup to bring up the DVE Clock settings window. Fit the game clock and shot clock markers around the numbers with the position and scale sliders.

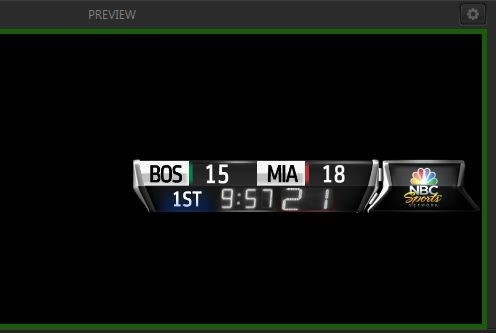

- The score bug in the preview window gets updated with the game clock and shot clock layout.

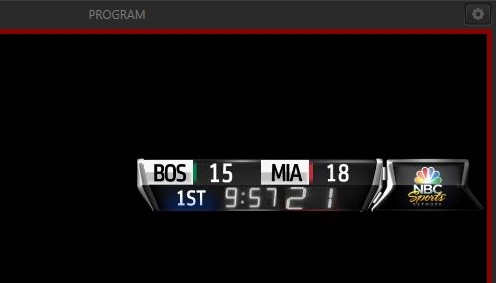

- Choose ok to save your changes. Press the PRG button to send the score bug and all its data to the program window.
KB ID: DD3989468
