Show Control System: How do I control a VP-6000 with Display Studio script buttons?

Topic

Script a look change using a VP-6000
Script a look change with a different source and DMP-8000 content
Show Control's Display Studio script buttons

Environment

Product: VP-6000 and Display Studio
Components: VP/DI-6000 Scripting
Control System:

Steps

Refer to Show Control System: How do I create buttons to execute triggers for VP-6000 looks? for a guide on building a VP-6000 scripting button

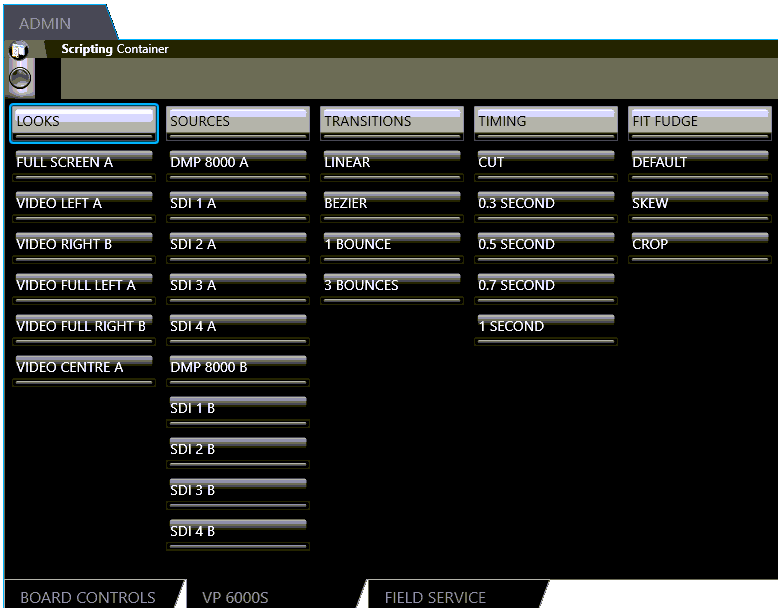

To help with scripting shows with a lot of look changes, it's good to have a separate VP-6000 subpage in the ADMIN tab that houses all the VP-6000 buttons.

These buttons can then be used as includes to save time by not having to create new script lines every time a look, source or transition needs to be changed on the VP-6000

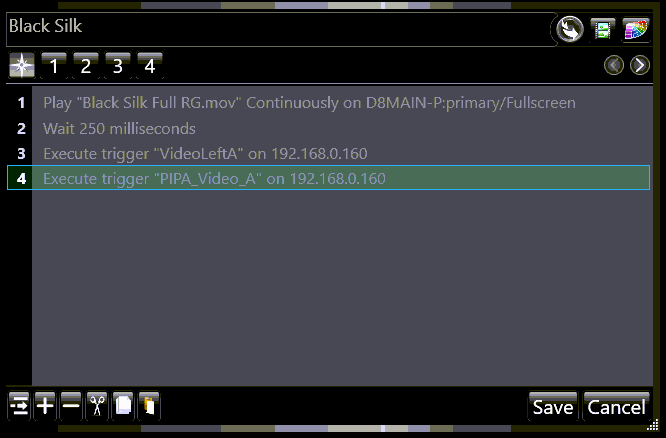

When building buttons to change a look with a new source, the look script line should be first followed by the source script line

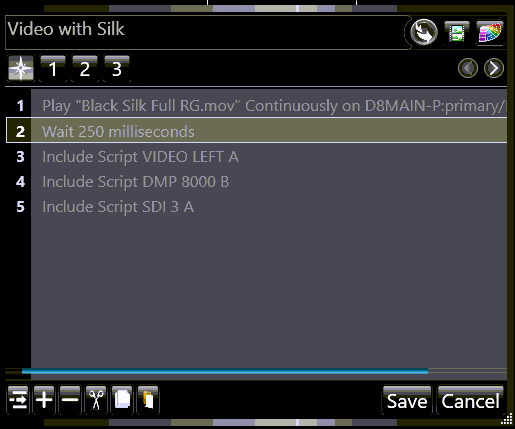

If including DMP-8000 content and look changes in the same button, wait commands of 250ms and 333ms need to be added between the 8000 and VP-6000 script lines to prevent flashes of DMP-8000 content.
Note: Flashes don't always occur but having a wait command will not affect visuals when there isn't a flash.

KB ID: DD3947523
