DMP: How do I monitor the output from the html web user interface?

Topic

  • How do I monitor the output from the html web user interface?

Environment

  • Product Family: Software and Controllers
  • Product: DMP-5000, DMP-8000 version 7.19 and later
  • Component: User interface, HTML Configuration UI
  • Control System:
The DMP Monitor will show a video feed of the display content. This video plays on a canvas that represents the display size.

    Steps

      Log into the web interface.  See: How to use DMP: How do I use the DMP-8000 HTML web user interface.
      1. Locate and click on the Monitor icon in the left side menu.
      2. If the player controls more than one sign, choose the desired sign from the Sign dropdown list.

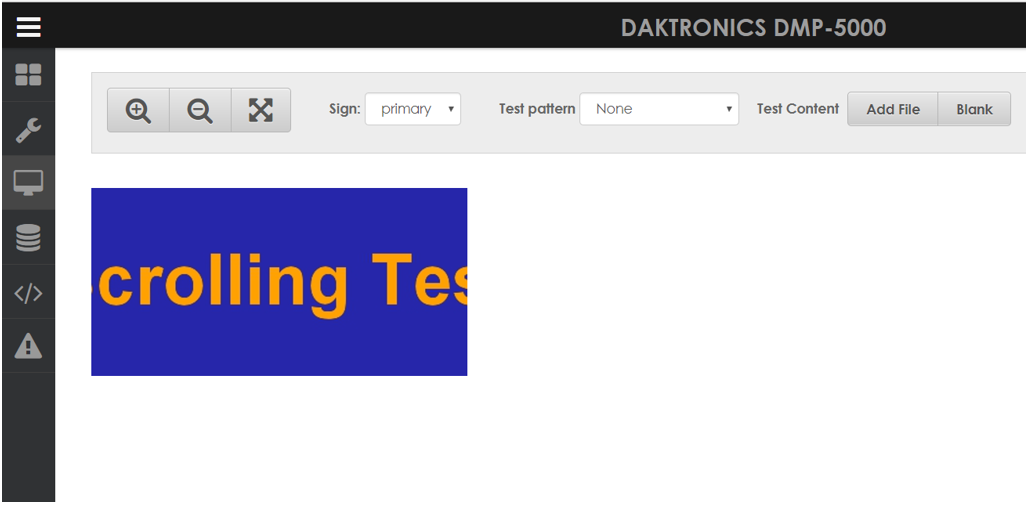

      3. Click the magnifying glass and arrow icons at the top of the video feed to make the monitor window larger, smaller, or to back to scale. dmp test patterns.png

      Related Resources

      DMP: How do I play a test pattern within the DMP HTML web interface?


        KB ID: DD3931447
