JUGS Radar Gun not Sending Data to All Sport, J-box Output Bad

Potential Symptoms

  • Voltage on pins 9 and 10 on 25-pin cable is higher than the normal 12vDC.
  • Data from radar gun is not showing up on the All Sport 5000 unit.

Environment

  • Product Family: Sports Product
  • Product: All Sport 5000
  • Component: JUGS Radar Gun
  • Control System: All Sport 5000

Cause

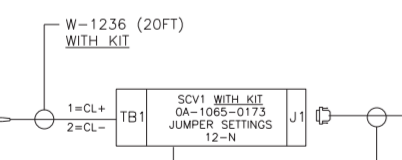

J-box 1.PNGJ-box 2.PNG

  • TB1 CL1 not functioning properly. Bad output.

Resolution

  • Change output from TB1 CL1 (Pins 1 and 2) to TB1 CL2 (Pins 3 and 4).

KB ID: DD3882917
