Pad times are faster that watch times
Potential Symptoms
- When comparing times from the touchpads/buttons to times of the backup stopwatches from the timers, times are 0.3-0.4 seconds faster on the pads.
Environment
- Product Family: Aquatics Timing
- Product:
- Component: HS-200 Horn Start
- Control System: OmniSport 2000
Cause
- Banana plug on cable running from OmniSport to horn start is plugged into the incorrect port on horn start side.
Resolution
- Check to confirm the setting is correct in the OmniSport. It should be set to Normally Open (N.O.). Press MENU>4>2>1.
- Plug banana plug into the START or DAKTRONICS N/O port on the horn start. Remember to plug in according to the diagram (ground pin/bump on black port) on both sides of the cable. (See Figure 1: Newer HS-200)

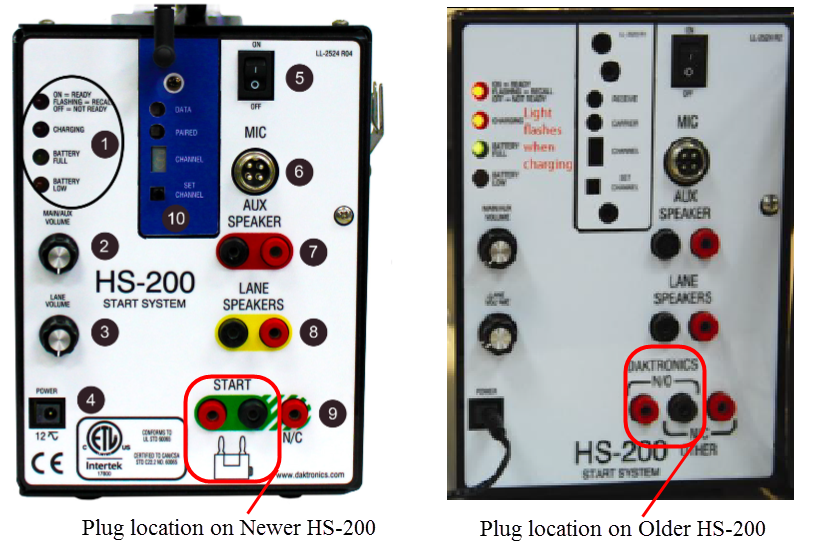

Figure 1: Plug locations on different HS-200 generations.
KB ID: DD3880807
