How do I configure StatVision for MLB RTD to XML Data Pack?

Topic

  • How do I configure StatVision for MLB RTD to MLB Data Pack?

Environment

  • Product: Data Server
  • Components: MLB RTD to XML Data Pack, StatVision
  • Control System: Professional Baseball
Data Server.jpg

Steps

  1. Match the ports in StatVision with the MLB RTD to XML Value Pack stream.

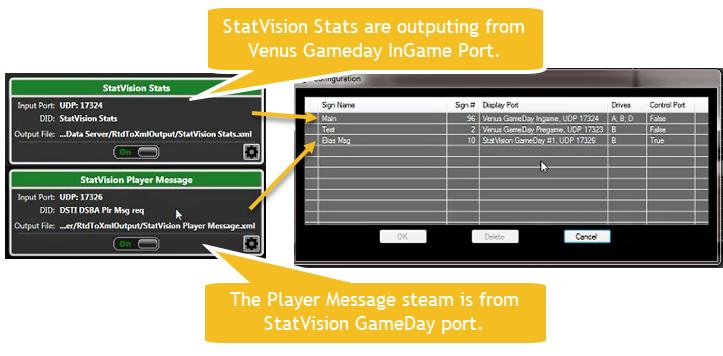

    1.  The MLB RTD to XML Data Pack has two separate output streams for StatVision.  These tiles are linked to the Signs configured in StatVision. To do this open StatVision, and chose Edit/ Sign Configuration.                  signs in StatVision.gif
    2. Take note of the signs that output StatVision Stats and Player Messages.
      statvision tiles2.png
    3. In the MLT RTD to XML Value Pack tile, configure each tile to match the Display Port information in StatVision.
  1. StatVision Operation

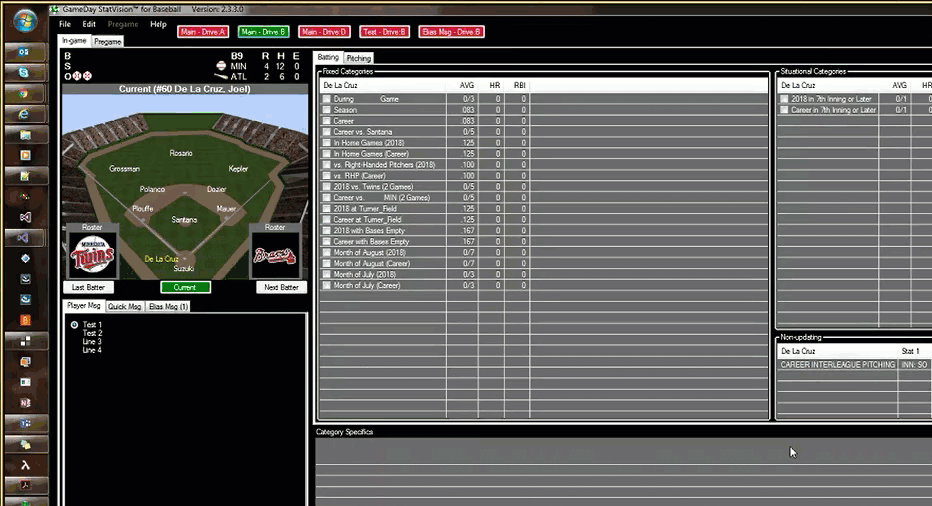

    1. Before clicking on a stat in StatVision, verify that correct sign button is selected in green.    The example below will output to StatVision Stat stream in the MLB RTD to XML value pack.                                                                                                                                                              statvision tiles3.png

    KB ID: DD3871831
