How do I backup /save and restore /load a Configuration for a Yamaha M7CL, QL1, QL5, CL1, CL3, or CL5 Mixer?

Topic

  • How do I backup /save and restore /load a Configuration for a Yamaha M7CL, QL1, QL5, CL1, CL3, or CL5 Mixer?

Environment

  • Product Family: Audio Systems
  • Product: Custom Audio Control System
  • Components: Yamaha M7CL, QL1, QL5, CL1, CL3, or CL5 Mixer
  • Control System:

Steps



See the following video or follow the steps below: CL/QL Series Training Video: 3.13. Saving & Loading Console Files (External)

When the USB flash drive is being accessed during saving, loading, or deleting, an ACCESS indicator is shown on the right side of the screen.  Do not disconnect the USB flash drive or power off the mixer when the indicator is shown.

Backup or Save Process:
  1. Connect a USB flash drive to the USB connector on the mixer
  2. Press the SETUP Button
    1. The setup button is located on the bottom right of the touch screen
  3. Press the SAVE/LOAD button to access the SAVE/LOAD pop up window
    save load.PNGM7CL       save load qlcl.PNGQL, CL
  4. For consoles with Dante, verify the With Dante Setup and I/O Device button is highlighted at the bottom of the screen
    CL menu bar.PNGQL,CL
    m7save bar.PNGM7CL
  5. Press the SAVE button
  6. For the QL and CL mixers, there is an extra step

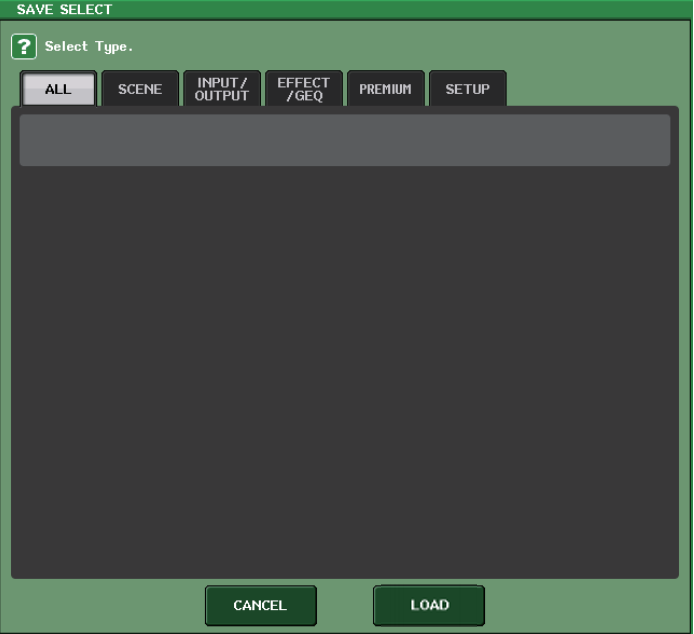

    1. Select ALL for the data type and press SAVE
      cl all.PNG

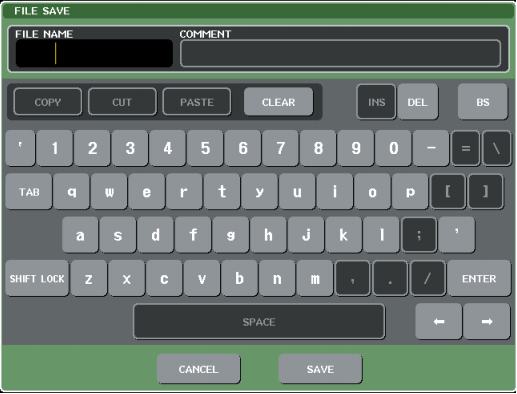

  7. Enter a file name and comment
    1. It is recommended to use the facility name with the date in the comments
      name comment.PNG
  8. Press SAVE to backup the file, then close out of the menus

Restore or Load Process:
  1. Connect a USB flash drive to the USB connector on the mixer
  2. Press the SETUP Button
    1. The setup button is located on the bottom right of the touch screen
  3. Press the SAVE/LOAD button to access the SAVE/LOAD pop up window
    save load.PNGM7CL       save load qlcl.PNGQL, CL
  4. Touch the file to be loaded or use the multi-function knob to rotate through the list
  5. For consoles with Dante, verify the With Dante Setup and I/O Device button is highlighted
    CL menu bar.PNGQL, CL
    m7save bar.PNGM7CL
  6. Press the LOAD button
  7. For the QL and CL mixers, there is an extra step
    1. Select ALL for the data type and press LOAD
      cl all.PNG
  8. Press the OK button to load the file, then close out of the menus

KB ID: DD3832391
