How to add a light sensor to a VIP-5150

Topic

  • How do I add a photocell on a VIP-5150?

Environment

  • Product Family: Message Displays
  • Product: GS6
  • Components: VIP-5150
  • Control System:

Steps

  1. Connect to the VIP-5150.
  2. Click on the configuration along the top.
  3. Select peripherals along the left side.
  4. Click on the green plus sign.
  5. Select light from the list.

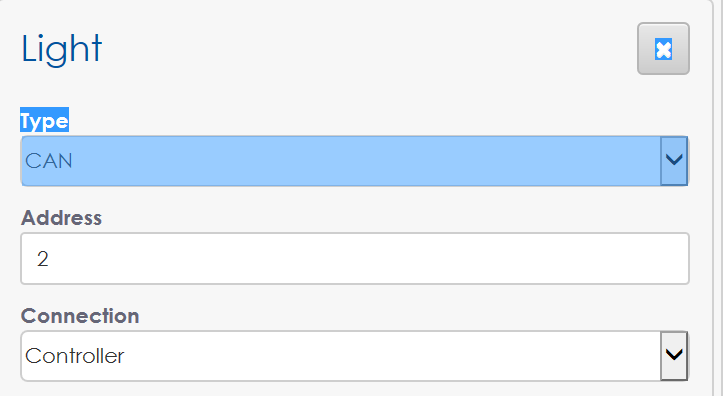

  6. Select the newly added light sensor.
  7. Set sensor address to 2.
  8. Set connection to controller.
  9. Click on save button on top left side of screen.

light sensor readings.PNG

    KB ID: DD3803134
