How do you switch sources on the Denon DN-300Z CD Player?

Topic

  • How do you switch sources on the Denon DN-300Z?

Environment

  • Product Family: Audio
  • Product: SSR-200, SSR-300, Custom
  • Components: Denon DN-300Z or DN-300ZB CD Media Player
  • Control System: Audio

Steps

  1. Press and release the white MEDIA button under the CD slot
    1. Continue pressing and releasing the MEDIA button to cycle through the sources
      or
    2. Use the scroll knob on the right to cycle through the sources
  2. Press the scroll knob in to select a source

Be aware that there are 2 separate audio outputs
  1. TUNER (Stereo RCA output adapted by a TDIBLOX turned all the way up)
  2. CD/USB/SD/AUX/BT (Connected using XLRs)

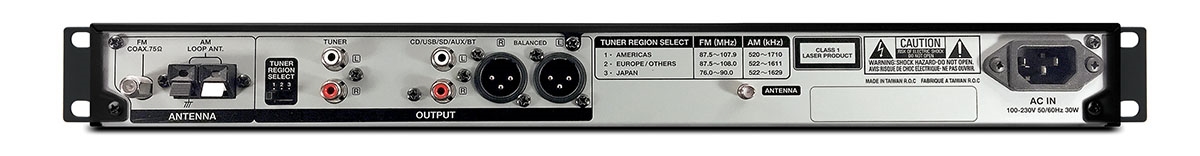

    DN300Z back.jpg

The Tuner will continue to play through the TUNER output on whatever the last tuner selection was, AM or FM and whatever its last station was when switching to a non-tuner media source. For example the tuner was on FM 99.7 and you change to CD, the tuner will keep playing 99.7 out of its output.


The CD/USB/SD/AUX/BT will continue to play unless switched to a different non-tuner media source. For example if the CD was playing and the source was set to FM, the CD would continue playing on the media output.  It would stop or switch sources when set to one of the other CD/USB/SD/AUX/BT sources
