6000 Processor: How do I load translation table for a 6000 via the user interface?

Topic

  • How do I load translation table for 6000-series processor?

Environment

  • Product: DI-6000 series video processor (version 9+)
  • Components: user interface, translation table
  • Control System:

Steps

  1. Log into the DI-6000 User Interface. Refer to How to log into the 6000 user interface?

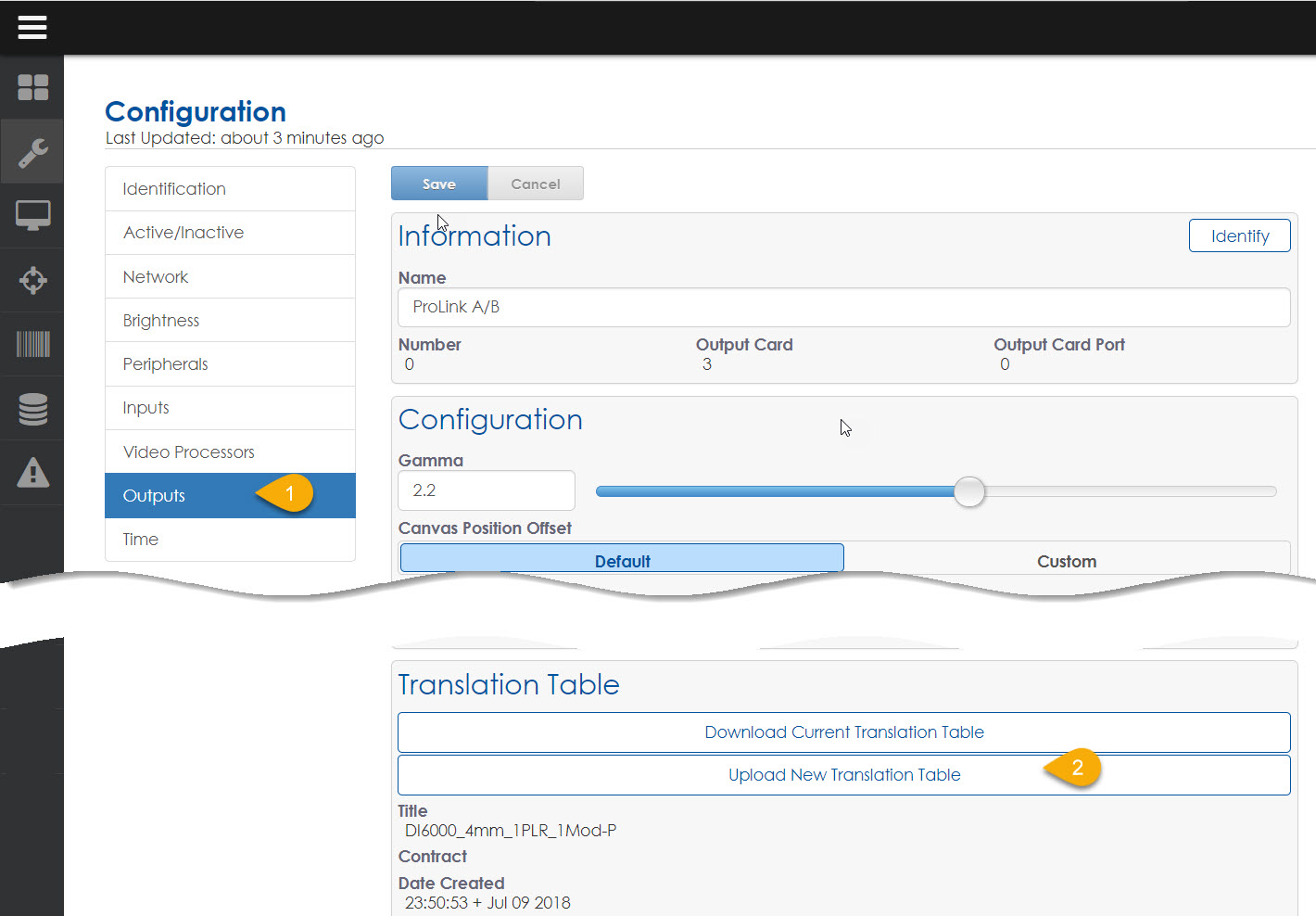

  2. Click on Outputs Tile from the dashboard.
  3. Click on the output that you would like to load translation tables for.
  4. Scroll down to the Translation Table section.
  5. Click on Upload New Translation Table and navigate to your .hex file.
  6. Click open to upload.
  7. Restart Firmware - How to I restart firmware for a VP-6000 or DI-6000?

KB ID: DD3769168
