How to Create a NFL Drive Summary Button

Topic

  • How do I use Drive Summary for the NFL?
  • How do I build a Drive Summary piece of content in Content Studio?
  • How do I build a Drive Summary button in Display Studio?

Environment

  • Product Family: Software; Control System
  • Product:
  • Components: Display Studio, Content Studio, DSTI, NFL GSIS
  • Control System: Show Control System (SCS)

Steps

  1. In Content Studio, choose the display size that will utilize the drive summary information

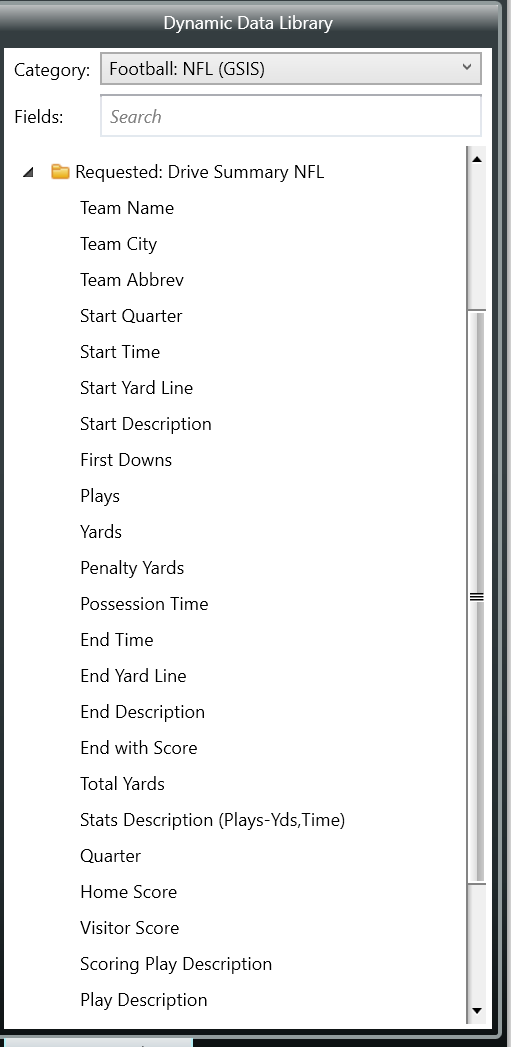

  2. In the Data Library side window, select the correct Football profile [Football: NFL (GSIS)]
  3. Drag and drop the field(s) containing the information you want to show for the drive summary
    1. Daktronics recommends using:
      1. Scoring Play Description: will give the condensed version of what occurred on the drive that resulted in points
      2. Plays: total number of plays on the drive
      3. Yards: total number of yards obtained on the drive
      4. Possession Time: total time elapsed for the scoring drive
        pic 1.png
  4. Once the content is complete, save the file to your requested stats folder or create a requested stats folder within the content folder of the DMP-8000 and place the file there
  5. In Display Studio, refer to How to Build a Requested Stats Button to begin the process of building a drive summary button. Minor differences in italics below:

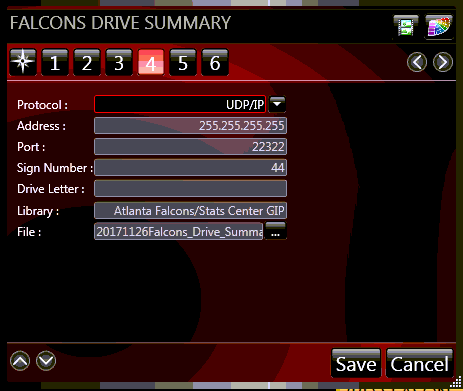

    1. For step 4, fill out the fields in order, as follows:
      • UDP/IP, 255.255.255.255
      • 22322 (unless otherwise noted in DSTI or the DSRC)
      • 1-99 (this is the assigned ERTD sign number for DMP-8000 zones, found via the DMP-8000s web interface)
      • Navigate to appropriate sequence
      • Leave the drive letter blank for drive summary stats requests
      • If content is in the root content folder on the DMP-8000 the library will be . (period)
        pic 4.png

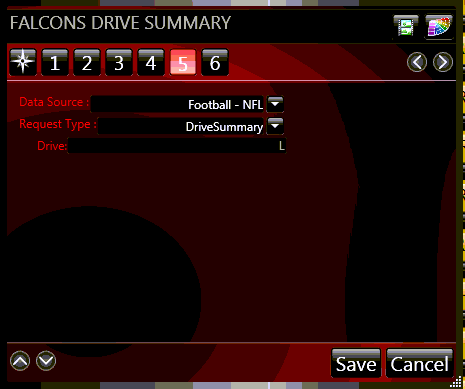

    2. For Step 5, fill out the fields in order, as follows:
      • Football - NFL
      • Drive Summary
      • L (you can type in a # as well and then the drive summary will give the information for Drive #1, #2, #3, etc. - L refers to the last drive)
        pic 3.png
    3. For Step 6, set the button play mode to continuous
  6. Add a second line of script that is a play command that plays the content specified in step 5.1

KB ID: DD3734646
