Pitch Count Strike and Ball buttons are not increasing the balls and strikes counts on the scoreboard

Potential Symptoms

  • Pitch Count Strike and Ball buttons under GUEST and HOME are not increasing the balls and strikes counts on the scoreboard.
  • When hitting PITCH COUNT STRIKES +1 in the home section getting H.PITCHER 1 and pitch isn't incrementing on the scoreboard.
  • When hitting PITCH COUNT STRIKES +1 in the guest section getting G.PITCHER 1 and pitch isn't incrementing on the scoreboard.

Environment

  • Product Family: Sports Product
  • Product: Baseball Scoreboards
  • Component:
  • Control System: All Sport 5000

Cause

  • This is not the design of these buttons.

Resolution

  • Verify Auto Increment Pitches is enabled:
    • Press <MENU>.
    • Press <DOWN ARROW> to "EDIT SETTINGS?" prompt on LCD.
    • Press <ENTER/YES>.
    • Press <DOWN ARROW> to "AUTO INCREMENT PITCHES Y/N?".
    • Press <ENTER/YES>.

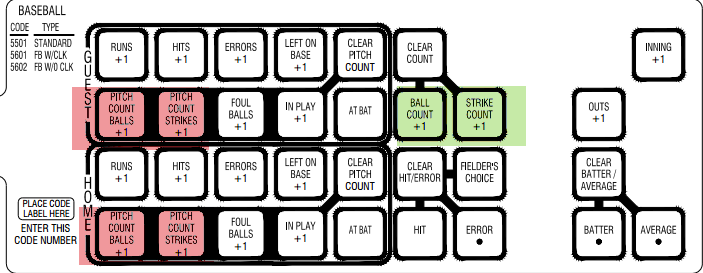

  • For game day operation use the <STRIKE COUNT +1> and <BALL COUNT +1> buttons highlighted in green below which will increment the appropriate Home's/Guest's Balls/Strikes pitch counts opposite the at bat indicator.
  • Though would need to press the appropriate HOME/GUEST <PITCH COUNT STRIKES +1> for a Foul Ball or Hit.
    • Can also use the <FOUL BALLS +1> and <IN PLAY +1> if wanting to show this detailed of information on a matrix display.
    • Any contact with the ball by the batter is a STRIKE count for the pitcher.

pitch count.png

KB ID: DD3646220
